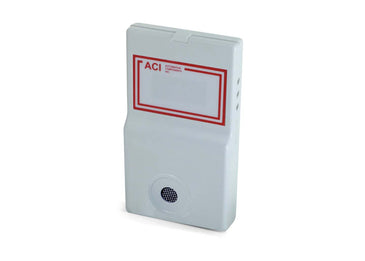

NO2-R | NO2 ROOM | ACI
Nitrogen Dioxide Sensor, 0-6 PPM Default, (10 PPM Max), Room Mount, 4-20mA, 2-10VDC Output
Documents and manuals
ACI NO2-R Documents
Overview
Details for NO2-R
The NO2 transmitter monitors nitrogen dioxide (NO2) and is designed for the continuous monitoring of vehicle exhaust in non-hazardous areas. A wide spectrum, long life electrochemical sensor measures the amount of NO2 in the environment. Both the Room and Duct transmitters are offered in a standard NEMA 1 rated plastic enclosure. An optional NEMA 4X watertight and dust proof enclosure is available with the room transmitter. Other options include an LCD display with (2) SPDT Form 1C relays and a buzzer. The NO2 Series is covered by ACI's Two (2) Year Limited Warranty.
ACI nitrogen dioxide sensors or transmitters are designed for HVAC, Building Automation Systems, or OSHA standards. Typical applications include: parking garages, arenas, kitchens, laundry rooms, warehouses, loading docks, service garages, school bus parking areas.
- Reliable sensor performance (Electrochemical)
- Push button programming
- Relay option
Specifications
| Item Number | NO2-R |
| Brand | ACI |
| Sensor Configuration | Room Only |
| Sensor | CO and NO2 |
