2OZ GLYCOL BOTTLE w PG7 Fitting

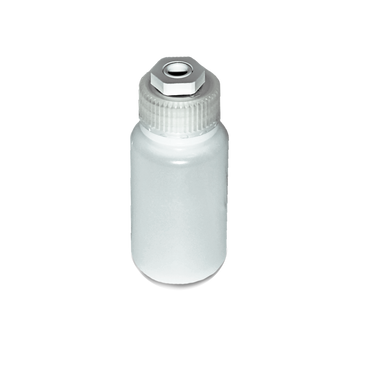

The ACI Glycol Bottle and Accessories comes with all of the items needed to add a thermal buer to any new or existing sensor installation that is provided in a 3/16" diameter sensing probe. The sensor should be installed inside the bottle such that the tip of the sensor is suspended approximately ½ inch above the bottom of the bottle. All of the mounting kits include the 304 series stainless steel mounting bracket, stainless steel screws, PG7 Cable Gland with Neoprene Seal and Nalgene Bottles. The “-3PT" Triple Point Thermal buer should be used in pharmaceutical or critical applications where multiple sensor redundancy is required with the 3rd sensing opening available for insertion of your NIST Certied standard or reference. Mounting brackets and bottles can be ordered separately. These kits do not include any glycol, glass beads, or silica (sand) to be used as your thermal buer material. The ACI Freezer Sensor Series is designed to work with the Glycol Bottles and Accessories or you can refer to the Prelled Glycol kits which include the temperature sensors, Food Grade Glycol and mounting accessories in a single package.
