FSIG-SLM500A | HORN/STROBE (AMBER) | ACI

HORN/STROBE (AMBER)

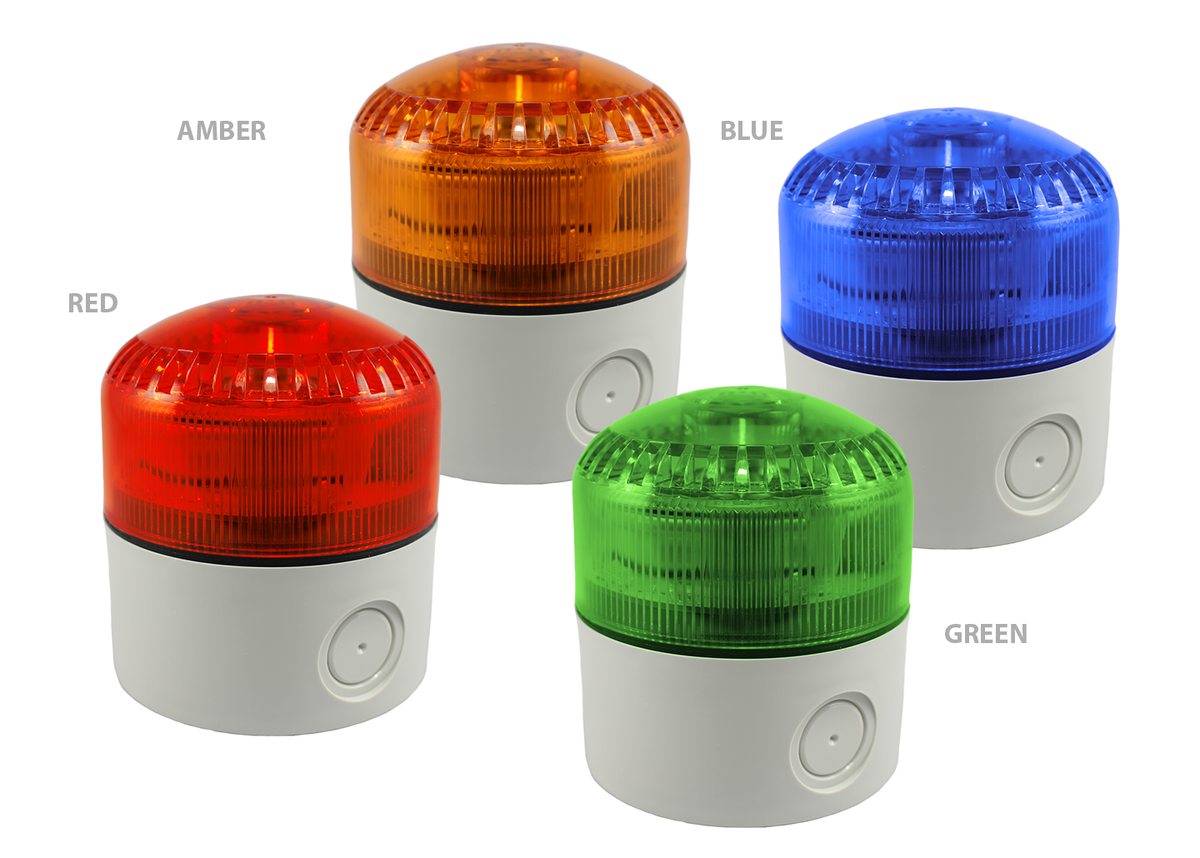

The FSIG-SLM500 Series is a multifunctional LED beacon and sounder combination developed with a multiple input technology that allows three separate levels of alarm (alert, pre-alarm, alarm) controllable via independent electric contacts. Channel 1 includes a simulated strobe (triple flash) visual signal only. Channel 2 adds an audible tone, selectable from 32 tones via dip switch, to the simulated strobe effect. Channel 3 includes a steady light and a second, unique tone selectable from 32 different tones, for a total of 64 unique tones. The volume of a selected tone is adjustable (65 dBa to 105 dBa for the highest performing tone). Its enclosure is made from a self-extinguishing polycarbonate material with high impact and UV resistance. The mounting base, strobe/sounder are sold separately. An optional protective wire dome is
available for use in applications to protect the horn and strobe from being damaged once installed in your building.

Other options may be available upon request. Contact ACI to discuss your application in greater detail or for more information regarding the strobes and audible alarm series.
