ESENSE-IP50 | CO2 SLIM OUT 1 OUT 2 | ACI

CO2 SLIM OUT 1 OUT 2

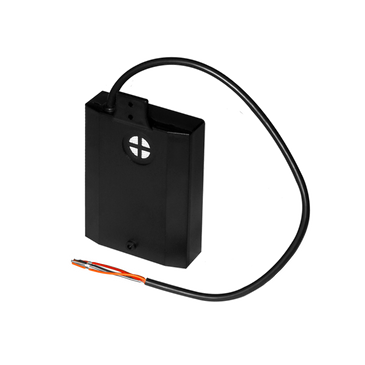

The ESENSE-IP50 Room/Duct transmitters monitor the carbon dioxide (CO₂) levels in factory mounted, OEM applications. The concentration of CO₂ is a good indication of the overall indoor air quality. The ESENSE Series is based on a single beam non-dispersive infrared technology and is a cost-optimized solution for the climate control of buildings and other processes. In addition, ABC software eliminates the need for manual calibration. The ESENSE Series measures the CO₂ concentration in the ambient air up to 2,000 ppm and converts the data into an analog output. This data can be used in conjunction with a Building Automation or Demand Control Ventilation System to decrease energy consumption while creating a healthier indoor climate. This product is compact in size, intended for factory mounting for both wall and duct applications with the protection class IP50. A 300 mm long cable connected to the device makes it possible to place the sensor where mounting is difficult.
