CO-D | CO Sensor NO2 Sensor | Duct CO NO2 Sensor | ACI
Carbon Monoxide Sensor, 0-125 PPM Default, (250 PPM Max), Duct Mount, 4-20mA or 2-10VDC Output
Documents and manuals
ACI CO-D Documents
Overview
Details for CO-D
CO-D | CO Sensor NO2 Sensor | Duct CO NO2 Sensor

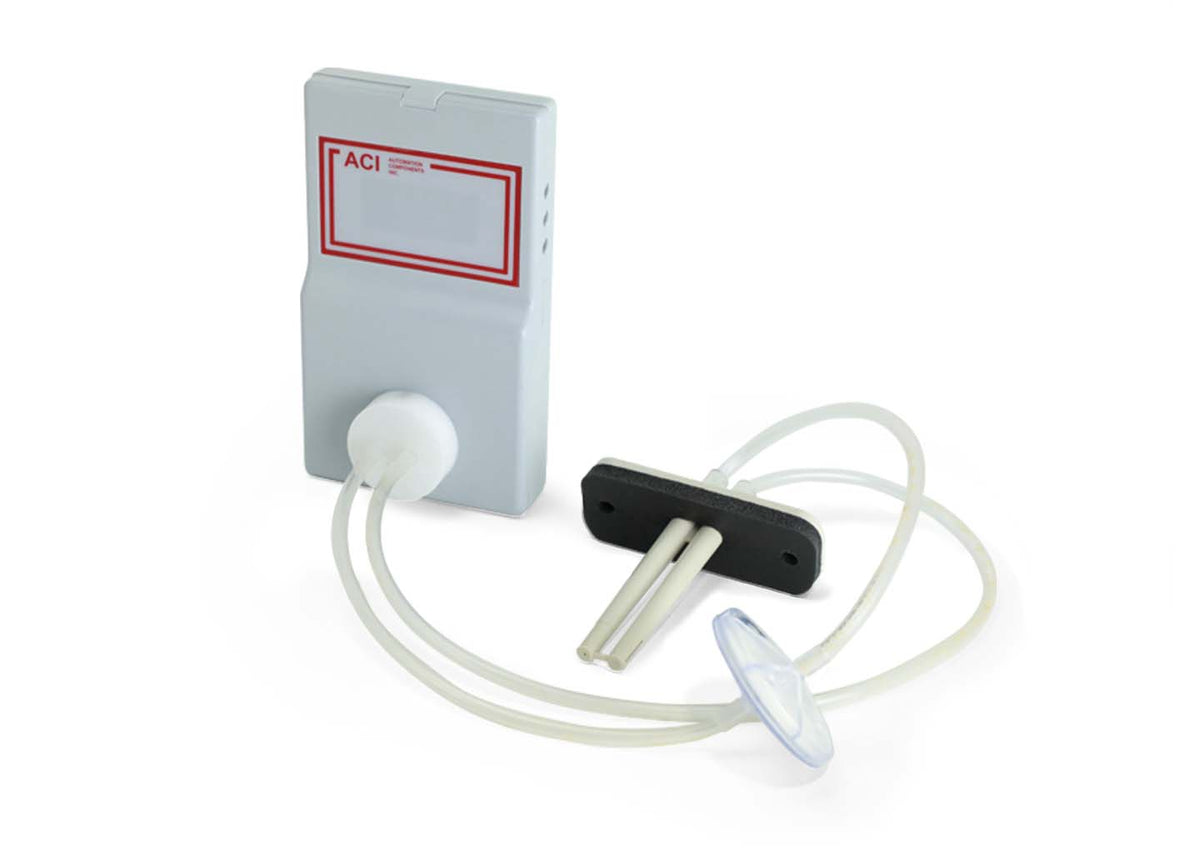

The CO transmitter monitors carbon monoxide (CO) levels and is intended to be used for the continuous monitoring of vehicle exhaust in non-hazardous areas. The CO uses a wide spectrum, long life electrochemical sensor to measure the amount of carbon monoxide in the environment. Both the Room and Duct CO transmitters are offered in a standard NEMA 1 rated ABS Polycarbonate plastic enclosure. An optional NEMA 4X watertight and dust proof enclosure is only available with the CO room transmitter. Other options include an LCD display with (2) SPDT Form 1C relays and a buzzer. The CO Series is covered by ACI's Two (2) Year Limited Warranty.
ACI carbon monoxide sensors or transmitters are designed for HVAC, Building Automation Systems, or OSHA standards. Typical applications include: parking garages, airports, central heating plants, fire stations, hospitals, mining, food processing facilities, arenas, kitchens, laundry rooms, warehouses, loading docks, service garages, and school bus parking areas.
Specifications
Item Number | CO-D |
Brand | ACI |
Sensor Configuration | Duct |
Sensor | CO and NO2 |
