Documents: B5-GENL-100L-O-X-DIESEL
B5-GENL-100L-O-X-DIESEL | BACNET | COMBUSTIBLE | DIESEL | ETL | ACI
BACnet MSTP, Smart Sensor, Diesel, 0-100% LEL, 3 SPDT Relays, NEMA 4X
Overview Details for B5-GENL-100L-O-X-DIESEL
BACNET | COMBUSTIBLE | DIESEL | ETL
Due an unexpected component shortage, this product may experience long lead times. Please contact ACI regarding this possibility.

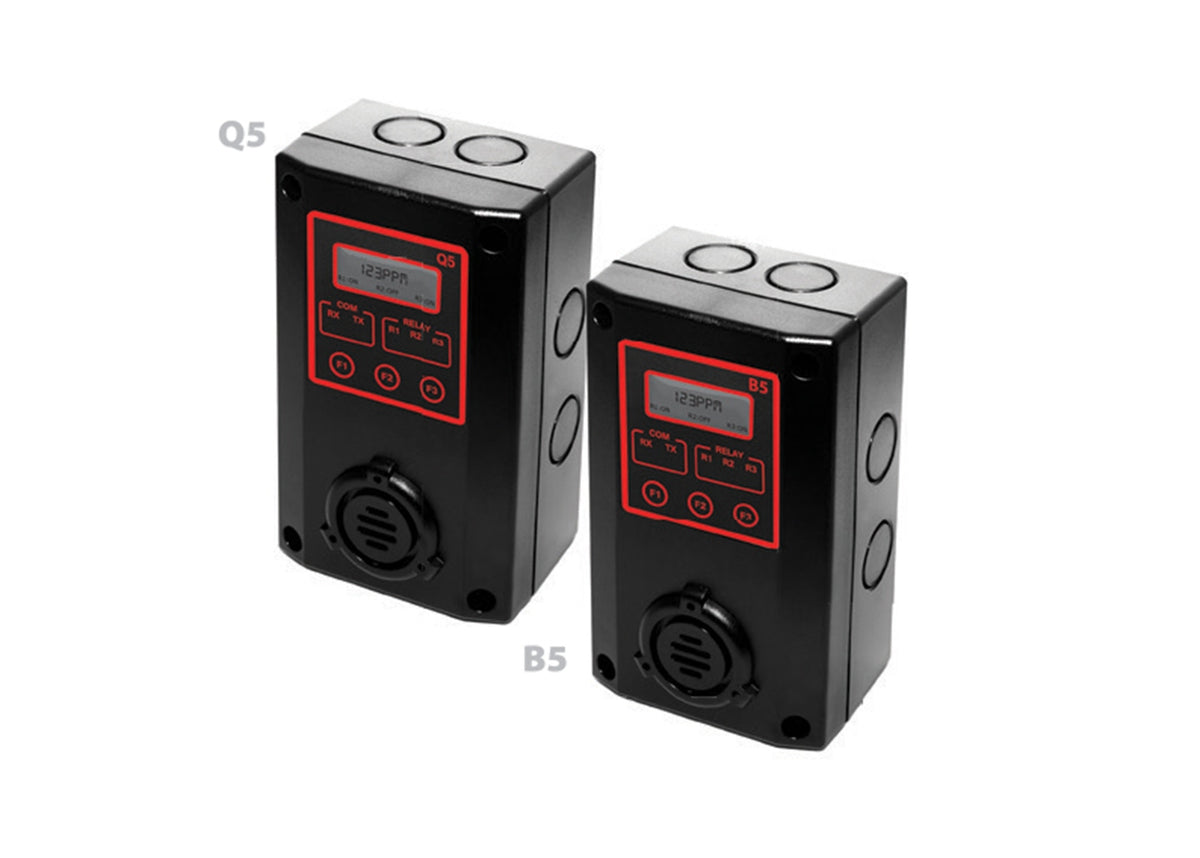

The B5/Q5 Toxic/Combustible Gas Detectors use various sensing technologies to detect a wide assortment of gases. These units are housed in a NEMA 4X rated plastic enclosure that will meet the most stringent applications. All models feature an internal clock, LCD Display for displaying gas concentrations and setup, LED Status Indication, integral buzzer with three user configurable relays and a number of different communication protocols for use with one of our gas controllers or your building management system. Factory calibrated sensor module replacements are available and are easily replaced in the field by removing two screws on the previous module. All units should be checked for proper functionality and calibration once the replacement sensor module is reinstalled and has had a chance to warm up. A user selectable password can be used to protect the system integrity. The Q5 can be used as a standalone controller or in conjunction with the Q4C, M-Controller or Q-Controllers using the proprietary RS-485 Optomux communication protocol. The B5 uses BACnet MSTP (RS485) protocol to communicate directly with a BAS.
Replacement Sensors (pre-calibrated) are available at:Replacement Sensors
Veris HWLP1T1, HWLP1T3, HWLP2T1, HWLP2XX, HWLPHTX,
Alerton BACtalk, WEBtalk, Viewport, Envision, Compass software
Honeywell Excel Web II, XL2026B2A, TB7600, Spyder BACnet
Reliable Controls MACH-System, MACH-Global, MACH-Zone, MACH-Net
Greystone HANTRC, HANTO, HANTD, NTO, NTD, CMD, CDD3, ULP, RPC, NTRC, UP, DWDT, ULP2-BAC, ULP1-BAC, CDD3A101S
Specifications
Item Number | B5-GENL-100L-O-X-DIESEL |
Brand | ACI |
