ATL | Analog Input, Relay Output, 4 (SPDT) Relays, 3% Deadband | ACI
Analog Input, Relay Output, 4 (SPDT) Relays, 3% Deadband
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to ATL
Overview Details for ATL

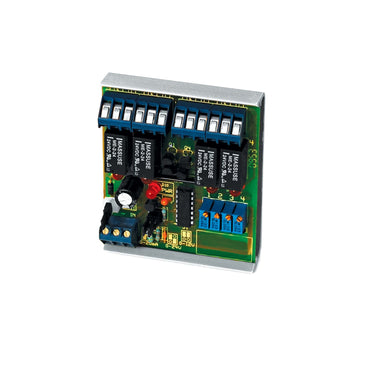

ATL | Analog Input to Relay Output Interface Module
The ATL accepts an analog voltage or current input signal and controls four relays. Each relay has an adjustable trip point which is set by a multi-turn trimmer potentiometer. Each relay is activated when the input signal is equal to or greater than the trip point setting. The relays reactivate at trip point less the deadband (3% standard, 1% & 10% optional). Common (C), Normally Open (NO)and Normally Closed (NC) terminals are available at each relay. The ATL can also accept a resistance input by using voltage divider applications. The ATL is covered by ACI's Two (2) Year Limited Warranty.
- Level indicators
- Sequencers
- Alarms
Specifications
| Item Number | ATL |
| Brand | ACI |
| Interface | Analog Input to Relay Output |
