ASENSE-D-LCD-REL | CO2 DUCT, LCD, RELAY, 0-10 VDC | ACI

CO2 DUCT, LCD, RELAY, 0-10 VDC

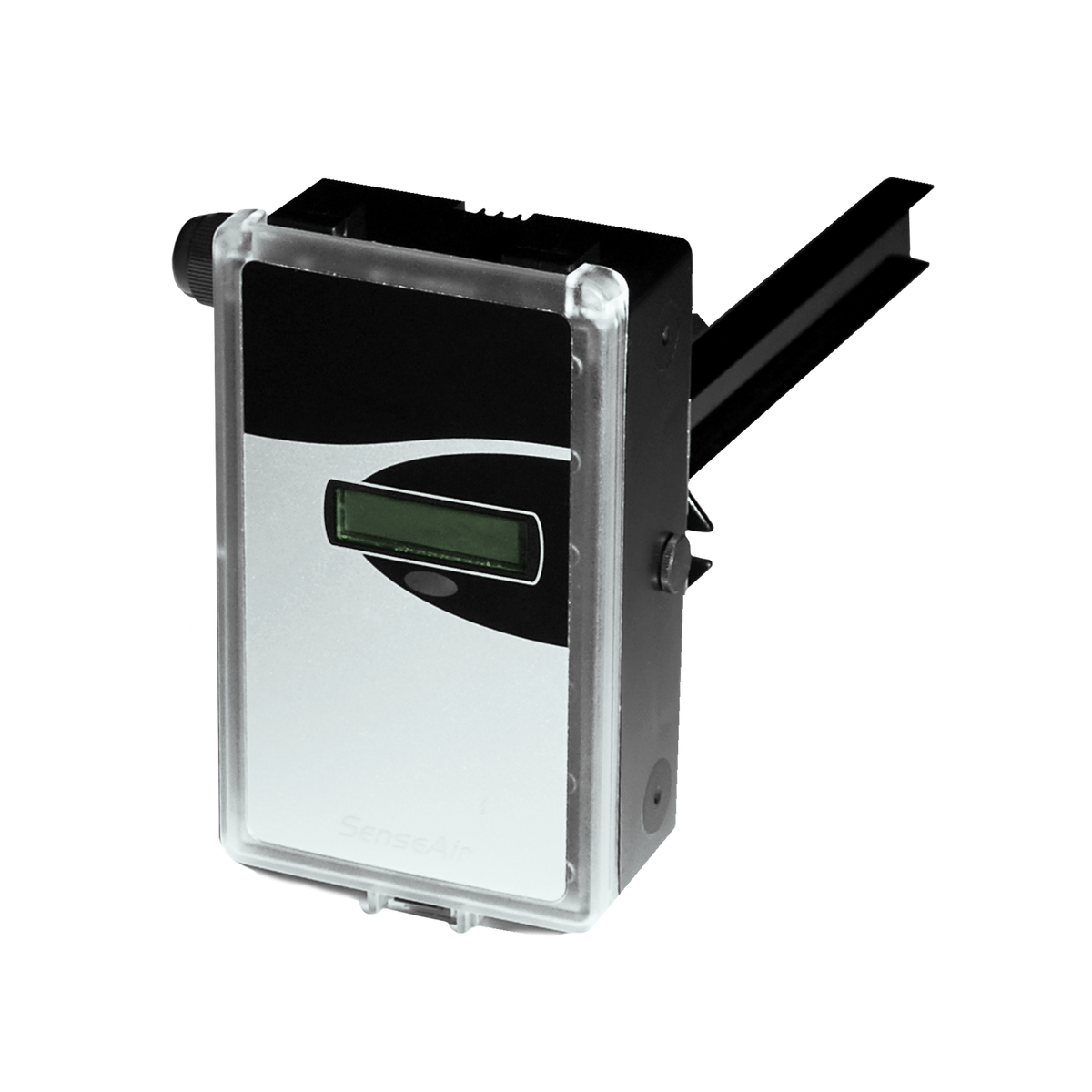

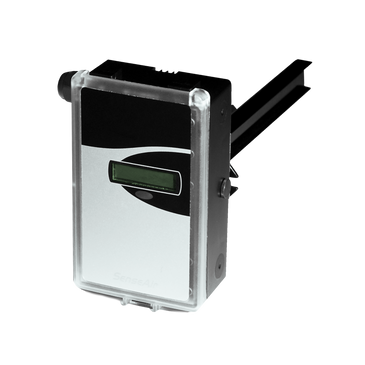

The ASENSE Duct transmitters monitor the carbon dioxide (CO₂) levels in industrial, commercial, school, and office type environments. The concentration of CO₂ is a strong indication of the overall indoor air quality. The ASENSE Series is based on a single beam non-dispersive infrared technology, and is a cost-optimized solution for the climate control of buildings and other processes. In addition, ABC software eliminates the need for manual calibration. The ASENSE Series measures the CO₂ concentration in the ambient air up to 2,000 ppm and converts the data into an analog output. This data can be used in conjunction with a Building Automation or Demand Control Ventilation System. This decreases energy consumption while creating a healthier indoor climate. Units feature an analog temperature output (correlates to 32 to 122°F) and the option to add a relay.
