Documents: A/SCS2

Datasheet Installation Instructions More Info

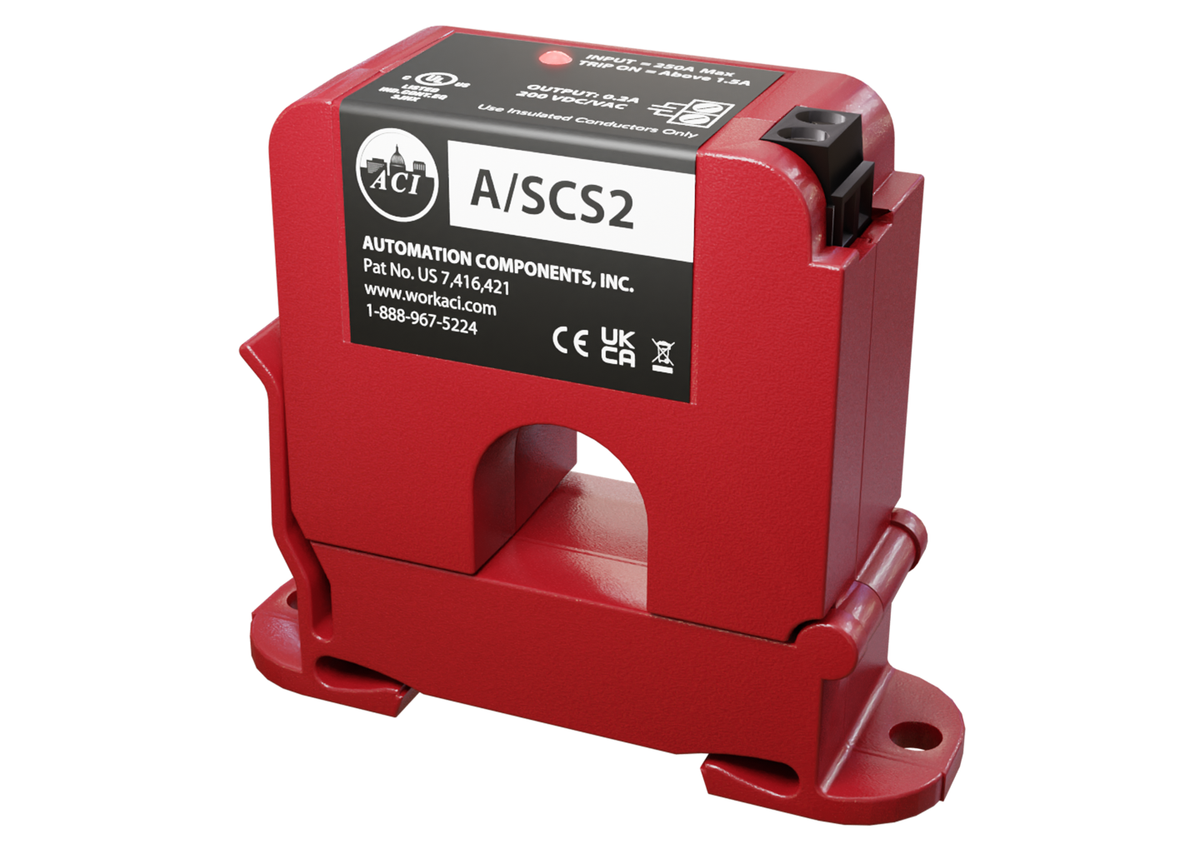

A/SCS2 | Current Switch (Solid Core) | N/O 0-200A | Fixed Trip Point: 1.5A | Output Switch Rating: 0.20A @ 200 VAC/VDC | ACI

Fixed Current Switch, DIN Rail, Split Core, NO, <1.5A Trip Point, 0 to 200A Range

Brand: ACISKU: A/SCS2

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to A/SCS2

Jump to: Overview & Specifications Reviews

Overview Details for A/SCS2

A/SCS2 | Current Switch (Solid Core) | N/O 0-200A | Fixed Trip Point: 1.5A | Output Switch Rating: 0.20A @ 200 VAC/VDC

Description

The ACI Fixed “Status” Current switches are designed for use in any AC current monitoring application in which you are looking for a “Go/No Go” or On/Off status for a particular piece of equipment. The current switches should be installed on the line side of the power to the motor, pump, compressor or other equipment. The current switches are available in both solid and split-core versions which also includes a Patented 35 mm Din Rail mounting foot for easy installation in panel mount applications. The solid-core versions are a great choice for new installations or OEM applications in which cost sensitivity, lower trip points and environmental issues may be of concern. The split-core version of the current switches work great in retrofit applications and for use in service vehicles since one part will work in most applications and can be installed without disconnecting any wires. The fixed current status switches can also be used to determine the run time of your equipment and basic load trending applications where you want to know when your piece of equipment runs and for how long it runs for when logging the contact closures on your building management system or PLC.

Applications

Pump Status, Fan Status, Compressors, Motor Status, Ovens, Industrial Equipment, Lighting Status and Usage, Electrical Load Status, Local Alarms (Strobes and Audible Alarms)
