A/RH3-CP-O-4X | Temp & RH 3% | Outdoor Outside Air Temp & Humidity Sensor | NEMA 4X Housing Enclosure Box | ACI
Relative Humidity, RH Outputs: 0-5, 0-10 VDC & 4-20mA (Default), Outside Air, ± 3% Accuracy, 10, 000 Ohm Thermistor (Type II), NEMA 4X Enclosure
Documents and manuals
ACI A/RH3-CP-O-4X Documents
Overview
Details for A/RH3-CP-O-4X

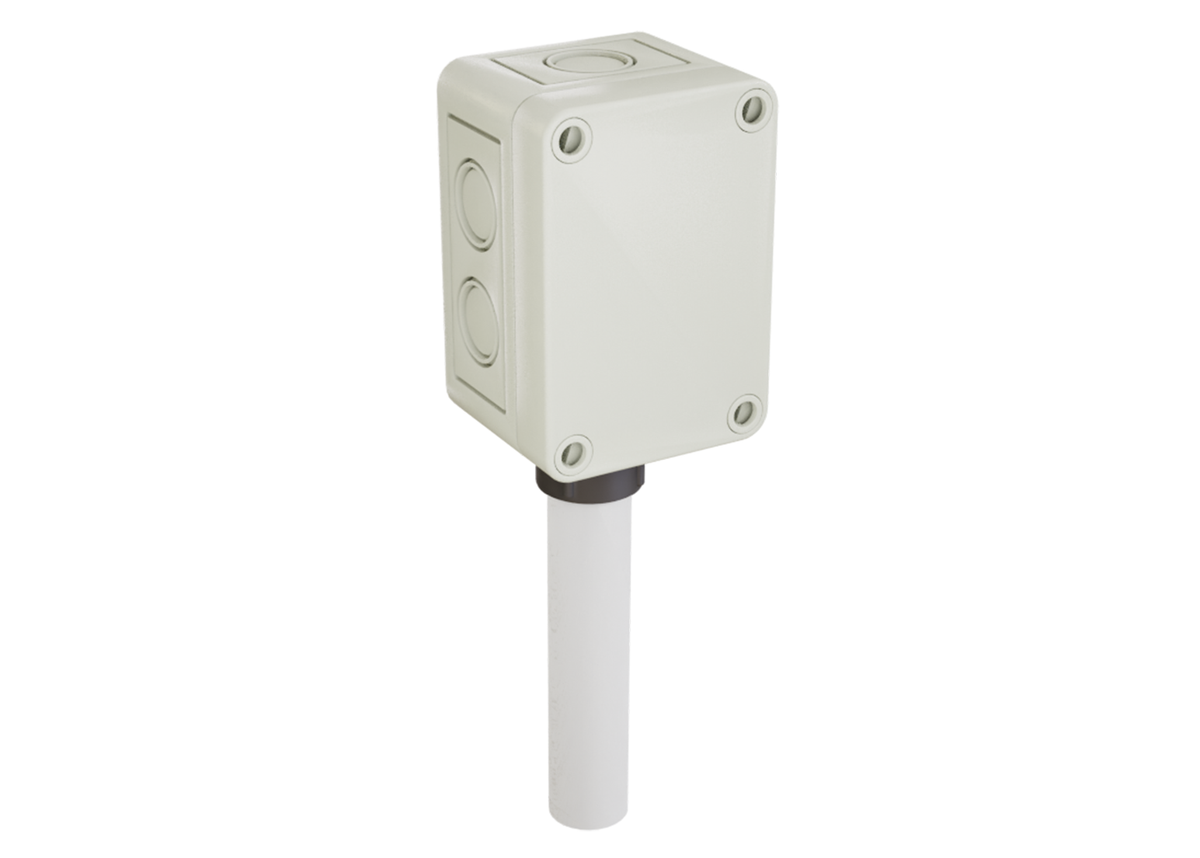

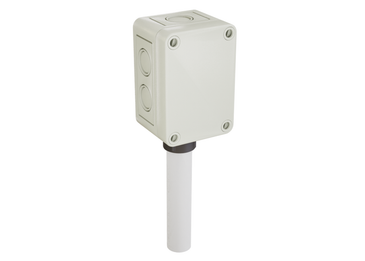

A/RH3-CP-O-4X | Temp & RH 3% | Outdoor Outside Air Temp & Humidity Sensor | NEMA 4X Housing Enclosure Box
Description
The A/RH Series relative humidity transmitters (with resistive temperature output) utilize a capacitive sensing element to deliver a proportional analog output. This series features on board DIP switches which allow the user to select the desired output signal. In addition, field calibration can be performed by using the on board increment and decrement DIP switches. These enhancements provide increased flexibility and outstanding long-term performance. Duct and Outside Air configurations feature conformally coated circuit boards for moisture resistance. Several RTD and thermistor temperature sensing elements are available in this series.
Specifications
Item Number | A/RH3-CP-O-4X |
Brand | ACI |
Sensor Configuration | Outdoor Air |
Sensor Housing | NEMA 4X |
Sensor | Temp and Humidity 3% |
