A/RH2-R | 2% Accuracy RH Humidity Sensor | Room Zone Wall Humidity Sensor | ACI
Relative Humidity, RH Outputs: 0-5, 0-10 VDC & 4-20mA (Default), Room (R), ± 2% Accuracy
Documents and manuals
ACI A/RH2-R Documents
Overview
Details for A/RH2-R

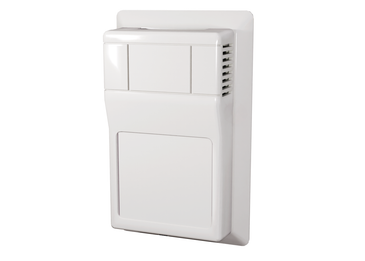

A/RH2-R | 2% Accuracy RH Humidity Sensor | Room Zone Wall Humidity Sensor
Description
The ACI Relative Humidity Room Series utilizes a thermoset polymer capacitive sensing element with a factory fitted hydrophobic filter to improve its moisture resistance. The sensing elements multilayer construction also provides excellent resistance in applications where dust, dirt, oils and common environmental chemicals are found. The RH room sensors include on board DIP switches which allow the user to select the desired output signal and can be powered by AC or DC power sources. Single point field calibration can be performed by using the increment and decrement calibration DIP switches to adjust your curve up or down in +/- 0.5% increments with each toggle of the corresponding switches. These enhancements provide increased flexibility and outstanding long-term reliability without the need to replace the sensors in the field. There are two enclosure options in this series which should satisfy most commercial decors. Both enclosures feature four-way airflow to minimize self-heating. Three and Five-point NIST Calibration Certificates are available and must be ordered separately when placing your order.
Applications
Humidification, Dehumidification, Monitoring Indoor Space Humidity, Clean Rooms, Hospitals, Process Control, Laboratories, Museums, Schools, Office Buildings, Data Centers, ESD (Anti-Static) Control
Specifications
Item Number | A/RH2-R |
Brand | ACI |
Sensor Configuration | Room Only |
Sensor | Humidity 2% |
