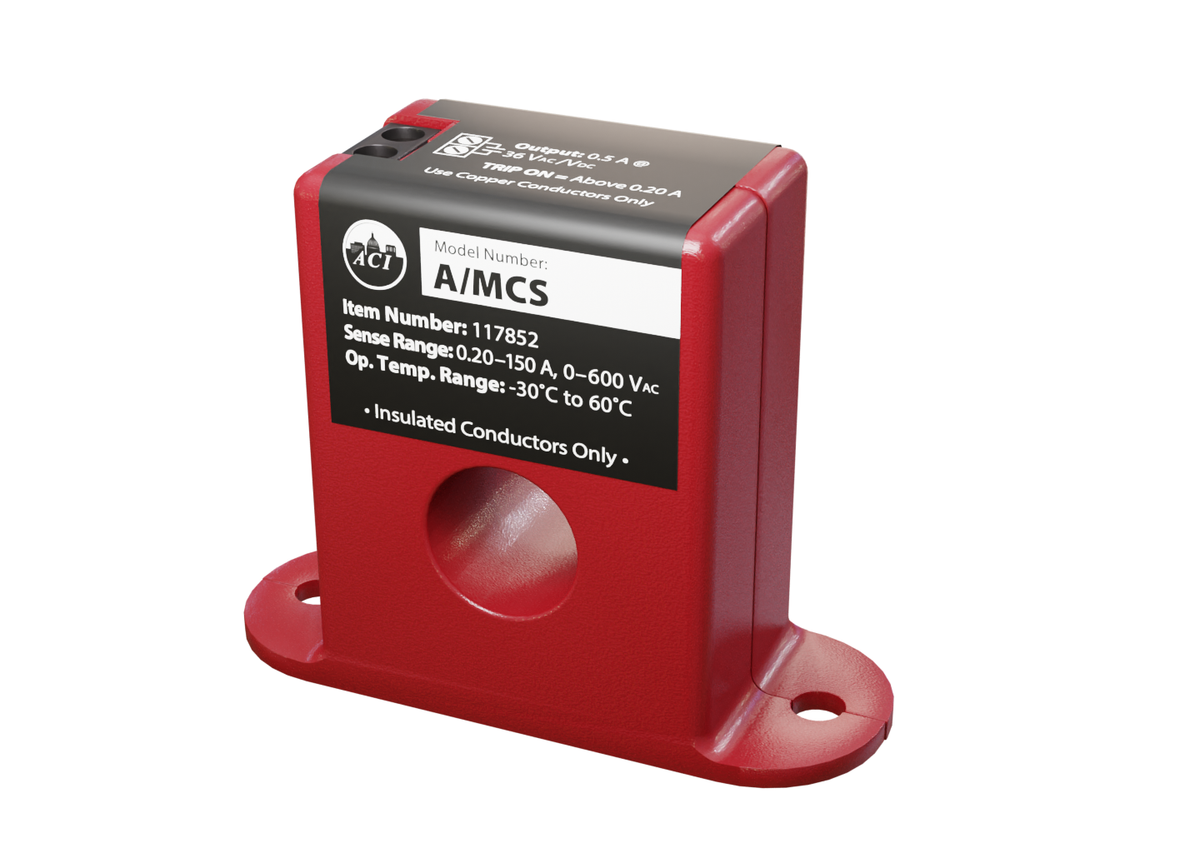

A/MCS | Current Switch (Solid Core) | N/O 0-150A | Fixed Trip Point: < 0.20A | ACI
Mini, Fixed Current Switch, Solid Core, NO, 0 to 150A Range, <0.20A Trip Point
Documents and manuals
ACI A/MCS Documents
Overview
Details for A/MCS
A/MCS | Current Switch (Solid Core), | N/O 0-150A | Fixed Trip Point: < 0.20A
Description
The A/MCS and A/MSCS are miniature “Go/No Go” current status switches designed to replace relays in
most applications. These switches are small in stature, allowing for tight installations. The output of the
A/MCS and the A/MSCS current switches functions as a N/O switch, activated by the amount of sensed AC
current. The output of these switches uses a N/O solid-state switch (more reliable than a relay) and is
non-polarity sensitive. These units perform in any application where the amount of AC current flow is
sufficient to indicate the operating status of the sensed load.
The A/MCS and A/MSCS Series are covered by ACI's Five (5) Year Limited Warranty.
Specifications
Item Number | A/MCS |
Brand | ACI |
Current Core | Solid Core |
Current Switch Type | Solid State |
Sensor | Current Switch |
