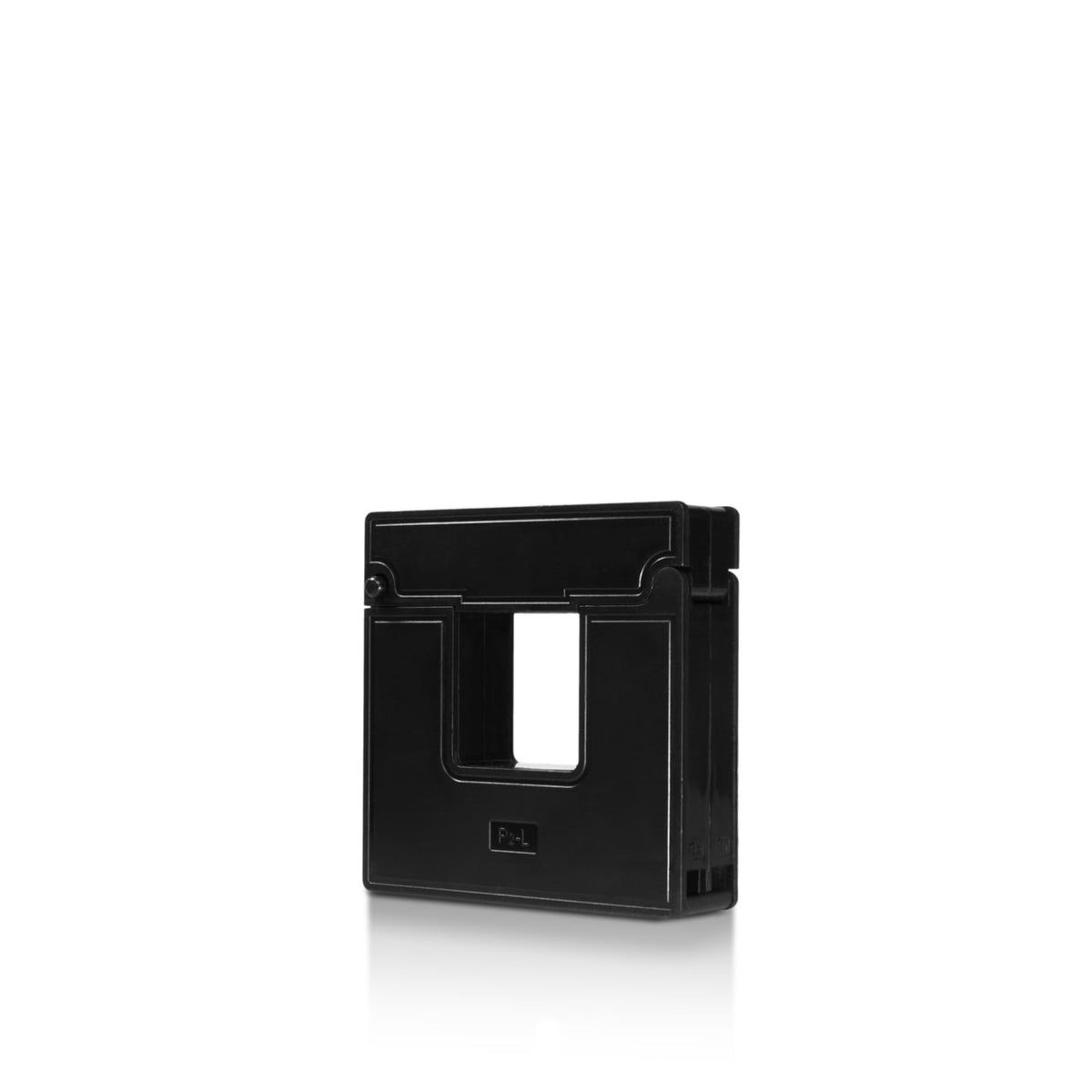

AcuCT-125-400-333-10M | Current Transformer, 400A, Split Core, 1.25" Aperture, 333mV Output, 10m Leads | ACI

Current Transformer, 400A, Split Core, 1.25" Aperture, 333mV Output, 10m Leads

The Split-Core Current Transformers are designed to convert an AC operating current into a low voltage AC millivolt signal for use with microprocessor-based circuits that require maximum accuracy and precision. These compact and light-weight split-core current transformers are designed for installation on branch circuits within the electrical panel. The Split-Core CT Series is ideal for easy installation without disconnecting cables. Split-Core CTs come standard unterminated stripped and tinned lead wires for easy connection to any of the Single or 3 Phase ACI power meter. CT models listed here are compatible with the ACI KW350-P1-D-S-SC, KW320-P1-D-W-SC-XX, KW320-P1-D-W-SC-PC, KW1850-P1-D-W, and KW1850-P1-D-S Power Meters where typical power measurements are required. For best accuracy, CTs should be selected based upon the size of the conductors being monitored by selecting the proper window size and referencing the expected maximum and minimum currents for the targeted application. The acceptable Measurement Current Range is referenced in the ordering grid table.

Applications: Energy and Demand Metering, Load Surveys, LEED/Green Projects, ROI / Project Justification.
