A/CSI-I-4"-4X | 10K ohm (CSI) | Stainless Steel Well Water Fluid Steam Temperature Sensor | Sensor Length: 4 inch | NEMA 4X Housing Enclosure Box | ACI

10, 000 Ohm Thermistor (CSI), Immersion, Welded Well, 4", NEMA 4X Enclosure

Brand: ACISKU: A/CSI-I-4"-4X

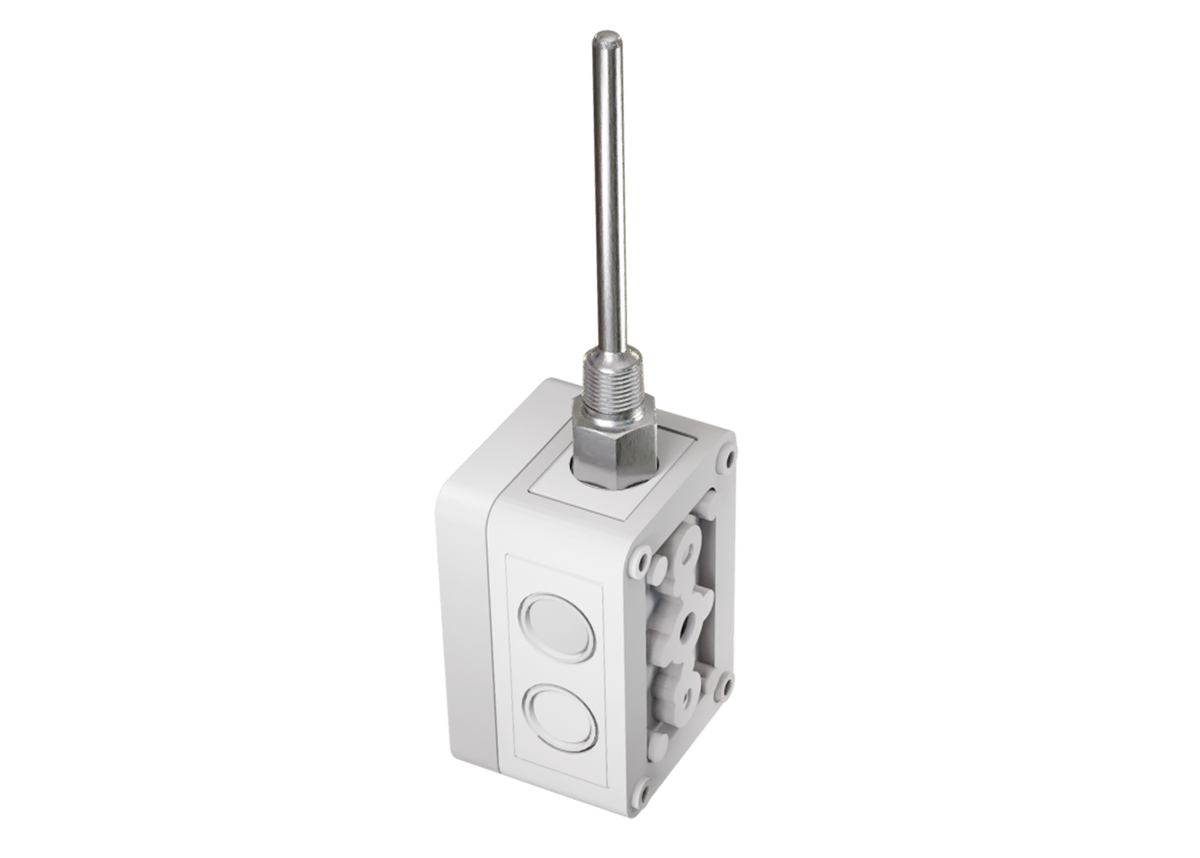

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to A/CSI-I-4"-4X

Jump to: Overview & Specifications Reviews

Overview Details for A/CSI-I-4"-4X

A/CSI-I-4"-4X | 10K ohm (CSI) | Stainless Steel Well Water Fluid Steam Temperature Sensor | Sensor Length: 4 inch | NEMA 4X Housing Enclosure Box

The polycarbonate NEMA 4X, immersion configuration is designed for wet environments and adds a level of corrosion resistance. It has male 1/2 inch NPT threads and the sensing element is double encapsulated to avoid sensor failures caused by moisture infiltration. ACI also standardizes with etched Teflon lead wires and a two part well is included with this configuration. ACI immersion temperature sensors are designed for HVAC, Building Automation Systems, and light industrial applications. Specific applications include: chillers, hot water systems, tanks, and boilers. NOTE: Welded thermowells are not intended for moving water or high pressure service. Fluid velocity and wake frequency are primary factors in well failure. Machined thermowells should be used in these types of applications.

Negative temperature coefficient
Double encapsulated sensor
NEMA 4X enclosure

Specifications

Item Number	A/CSI-I-4"-4X
Brand	ACI
Element Type	10K (CSI)
Sensing Element	Thermistor
Sensor Configuration	Immersion with Well
Sensor Housing	NEMA 4X
Sensor Length	4 inch
Sensor	Temperature
