A/CS2 | Current Switch (Solid Core) | N/O 0-250A | Fixed Trip Point: 0.25A | Output Switch Rating: 0.20A @ 200 VAC/VDC | ACI

Fixed Current Switch, DIN Rail, Solid Core, NO, <0.25A Trip Point, 0 to 250A Range

ACI | A/CS2

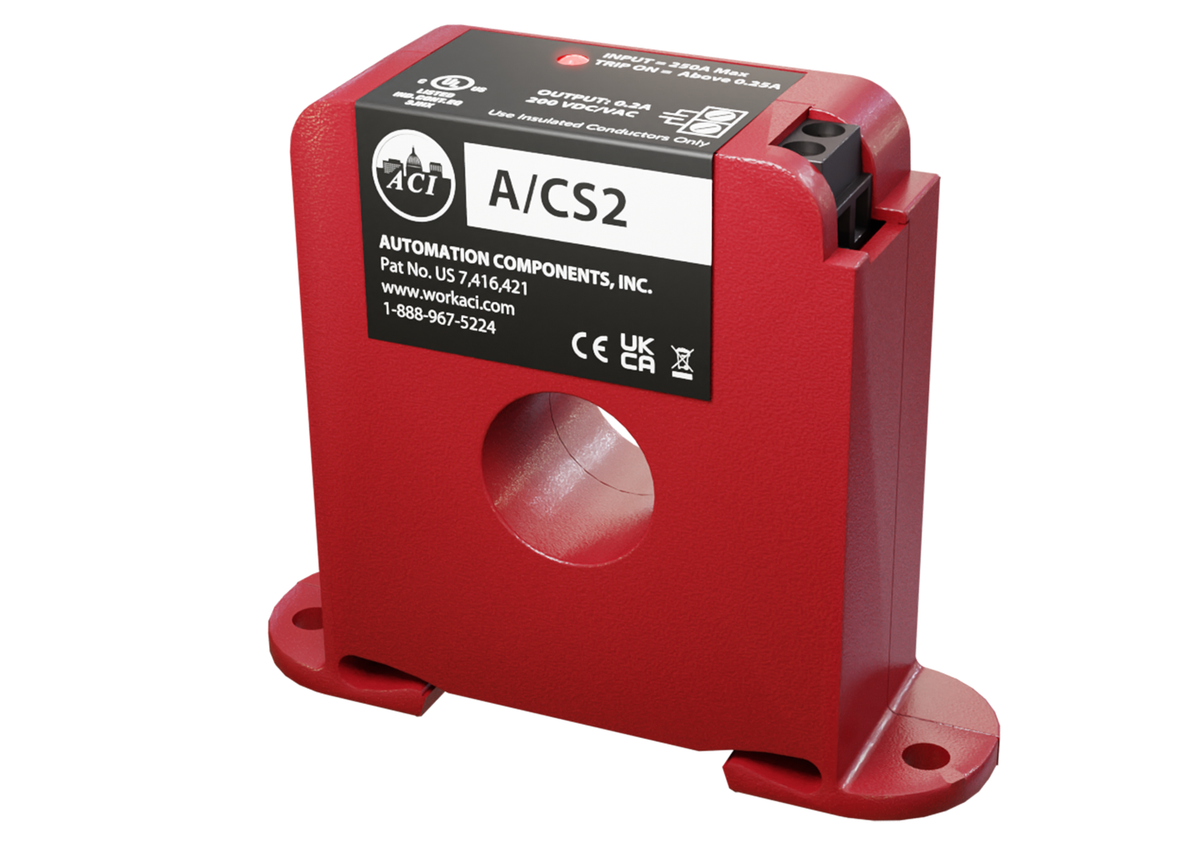

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to A/CS2

Documents and manuals

Overview

Details for A/CS2

A/CS2 | Current Switch (Solid Core) | N/O 0-250A | Fixed Trip Point: 0.25A | Output Switch Rating: 0.20A @ 200 VAC/VDC

The ACI Fixed Status Current switches are designed for use in any AC current monitoring application in which you are looking for a Go/No Go or On/O status for a particular piece of equipment. The current switches should be installed on the line side of the power to the motor, pump, compressor or other equipment. The current switches are available in both solid and split-core versions which also includes a Patented 35 mm Din Rail mounting foot for easy installation in panel mount applications. The solid-core versions are a great choice for new installations or OEM applications in which cost sensitivity, lower trip points and environmental issues may be of concern. The split-core version of the current switches work great in retrot applications and for use in service vehicles since one part will work in most applications and can be installed without disconnecting any wires. The xed current status switches can also be used to determine the run time of your equipment and basic load trending applications where you want to know when your piece of equipment runs and for how long it runs for when logging the contact closures on your building management system or PLC. Applications: Pump Status, Fan Status, Compressors, Motor Status, Ovens, Industrial Equipment, Lighting Status and Usage, Electrical Load Status, Local Alarms (Strobes and Audible Alarms) The Fixed Current Switches are covered by ACI's Five (5) Year Limited Warranty. The warranty can be found in the front of ACI's Sensors & Transmitters catalog, as well as on ACI's website, www.workaci.com.

Specifications

Item Number A/CS2
Brand ACI
Current Core Solid Core
Current Switch Type Solid State
Sensor Current Switch
