A/CR-115AC-8A | Current Relay | Coil Rating: 80-132 VAC | 50/60 Hz | 5.35 mA @ 115 VAC | ACI
Command Relay, Nom. Coil Voltage: 115 VAC, Contact Rating: 8A, Form 1C (SPDT)
Documents and manuals
ACI A/CR-115AC-8A Documents
Overview
Details for A/CR-115AC-8A

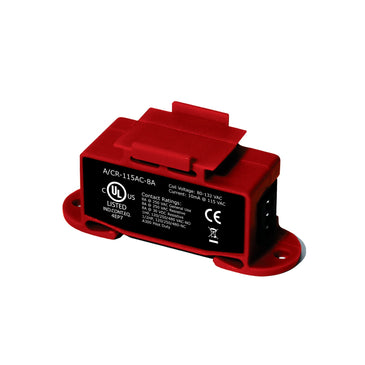

A/CR-115AC-8A | Current Relay | Coil Rating: 80-132 VAC | 50/60 Hz | 5.35 mA @ 115 VAC
The A/CR (Command Relay) Series brings control (start/stop) functionality to your load trending and fan/pump/motor status monitoring applications. Each unit has a Form 1C-SPDT relay which means you have both a N/O and a N/C contact in the same unit. The patented 35mm Din-Rail Mounting Flange (US Patent #7,416,421) will allow you to use the A/CR Series with any ACI analog current sensor or switch. This will reduce your inventory by not having to stock as many different items. The stacking feature will also allow you to reduce the required panel space, since up to two A/CR Series Command Relays may be stacked together during installation.
ACI command relays are designed for HVAC, Building Automation, or industrial systems. Typical applications include: pilot duty, motor control, lighting control, and interposing relay.
- Patented 35mm Din-rail mounting flange
- LED indication
Specifications
| Item Number | A/CR-115AC-8A |
| Brand | ACI |
| Current Switch Type | Relay |
| Sensor | Current Switch |
