A/CP-I-4"-BB | 10K ohm Type II | Stainless Steel Well Water Fluid Steam Temperature Sensor | Sensor Length: 4 inch | NEMA 3R (Bell Box) Housing Enclosure Box | ACI
10, 000 Ohm Thermistor (Type II), Immersion, Welded Well, 4", NEMA 3R Enclosure
Documents and manuals
ACI A/CP-I-4"-BB Documents
Overview
Details for A/CP-I-4"-BB

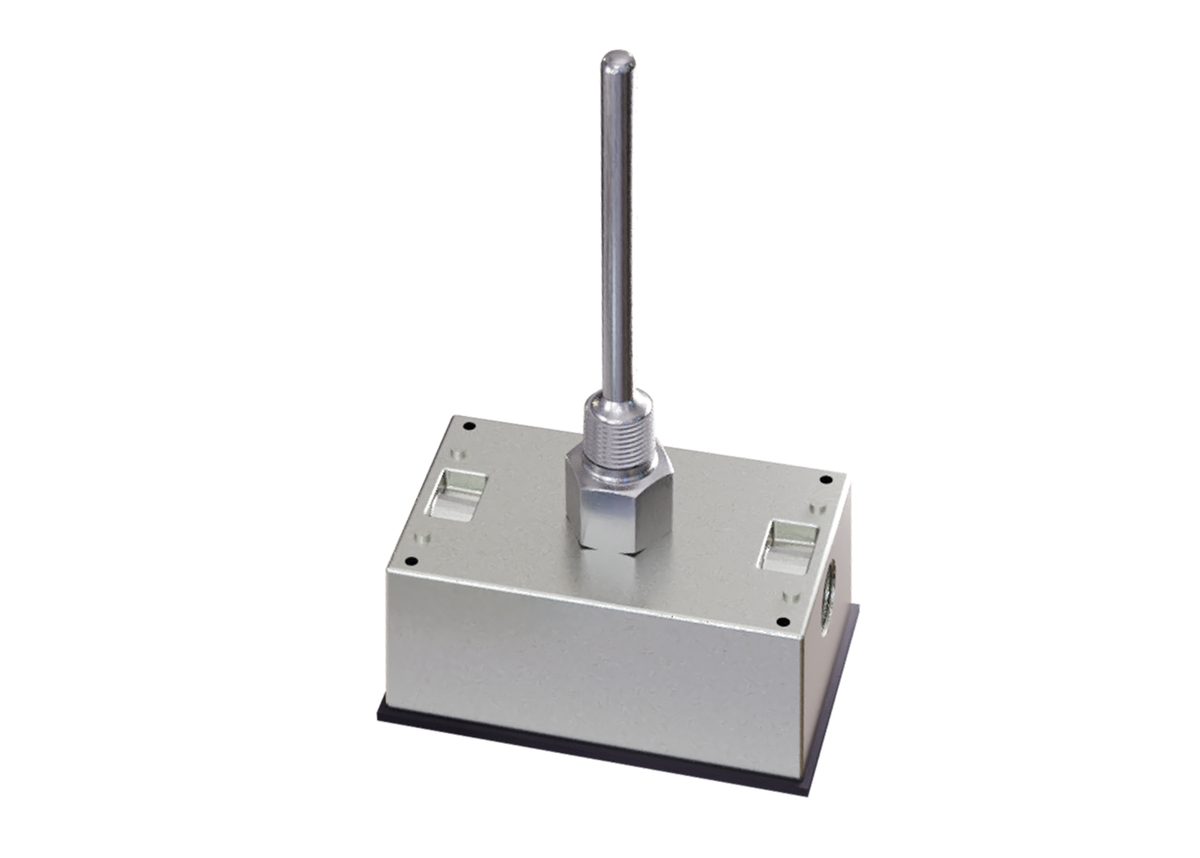

A/CP-I-4"-BB | 10K ohm Type II | Stainless Steel Well Water Fluid Steam Temperature Sensor | Sensor Length: 4 inch | NEMA 3R (Bell Box) Housing Enclosure Box
The ACI Thermistor Immersion Series features a ¼ diameter stainless steel probe with two, 14 inch 22 AWG Etched Teflon colored lead wires depending on the probe length ordered to differentiate the sensor types. The sensors in this series are manufactured using ACIs proven double encapsulation process to eliminate the effects of moisture and to increase the response times using our high quality, thermally conductive epoxy. The immersion sensors include a welded thermowell -I version but can be ordered without the welded thermowell -INW version. The INW version includes a standard ½ NPS Male process thread to be used with an optional machined thermowell or in an existing thermowell application. Optional NEMA/IP rated enclosures and NIST certificates are available the back of the product data sheet. Applications: Chilled Water Systems, Hot Water Systems, Boilers, Pumps, Compressor, Chillers
Specifications
| Item Number | A/CP-I-4"-BB |
| Brand | ACI |
| Element Type | 10K Type II |
| Sensing Element | Thermistor |
| Sensor Configuration | Immersion with Well |
| Sensor Housing | NEMA 3R (Bell Box) |
| Sensor Length | 4 inch |
| Sensor | Temperature |
