A/CP-FRZ2"-30' | 10K ohm Type II | Freezer Glycol Extreme Cold Temperature Sensor | ACI
10, 000 Ohm Thermistor (Type II), 2" Freezer Probe 316 SS, 30'
Documents and manuals
ACI A/CP-FRZ2"-30' Documents
Overview
Details for A/CP-FRZ2"-30'
A/CP-FRZ2"-30' | 10K ohm Type II | Freezer Glycol Extreme Cold Temperature Sensor

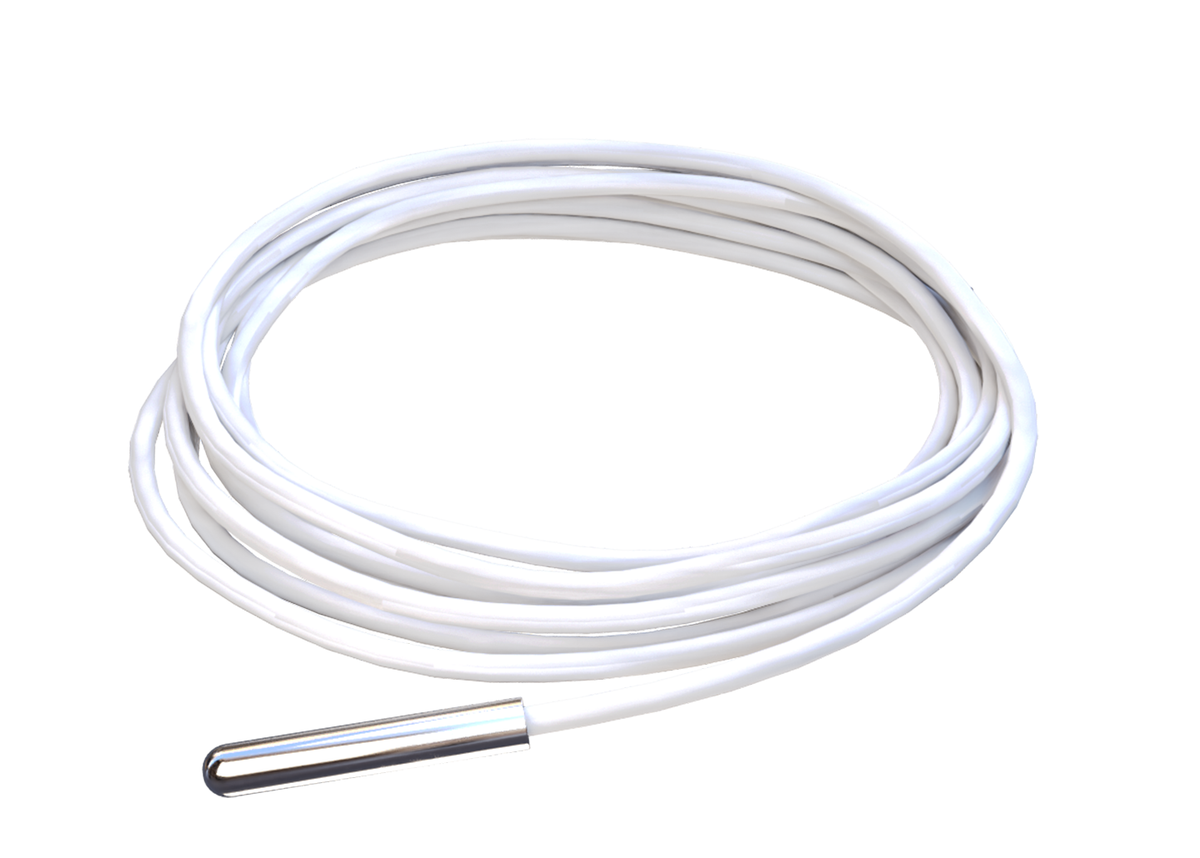

The ACI Thermistor Freezer Series features a 3/16 diameter stainless steel probe with a 30 Foot, 3 Conductor, 24 AWG Jacketed Teflon Cable. The sensors in this series are manufactured using ACIs proven encapsulation process to eliminate the effects of moisture upon the sensors. The probe is designed to be used in a Refrigerated, Freezer or Hydronic applications where a remote sensor must be used. An optional NEMA 4X rated weatherproof enclosure and NIST Certificate is available as referenced in the ordering grid on the back of the product data sheet. Applications: Pharmaceutical, Refrigerators, Freezers, Hydronic Heating, Remote Sensor Applications
Specifications
| Item Number | A/CP-FRZ2"-30' |
| Brand | ACI |
| Element Type | 10K Type II |
| Sensing Element | Thermistor |
| Sensor Configuration | Freezer Sensor |
| Sensor | Temperature |
