A/CP-FA-24'-4X | 10K ohm Type II | Flexible Averaging Temperature Sensor | Averaging Wire Length: 24 feet | NEMA 4X Housing Enclosure Box | ACI
Get Special Pricing!
Log In or Create an Account for the LOWEST PRICING on our most Popular Brands!
Brand: ACISKU: A/CP-FA-24'-4X

Web Price:

$134.21
Availability: This product is currently available to purchase
Contact us for price breaks on large quantities!
Orders over $999 ship FREE*
*Free shipping applies within the continental US and weighing less than 50 lbs.
Shipping and Returns Terms
Image for Technical Expert

Speak With a Technical Expert

Call (847) 773-0645

Hours: 9am - 5pm CDT M-F

A/CP-FA-24'-4X | 10K ohm Type II | Flexible Averaging Temperature Sensor | Averaging Wire Length: 24 feet | NEMA 4X Housing Enclosure Box | ACI

10, 000 Ohm Thermistor (Type II), Flexible Cable Averaging, 24', NEMA 4X Enclosure

ACI | A/CP-FA-24'-4X

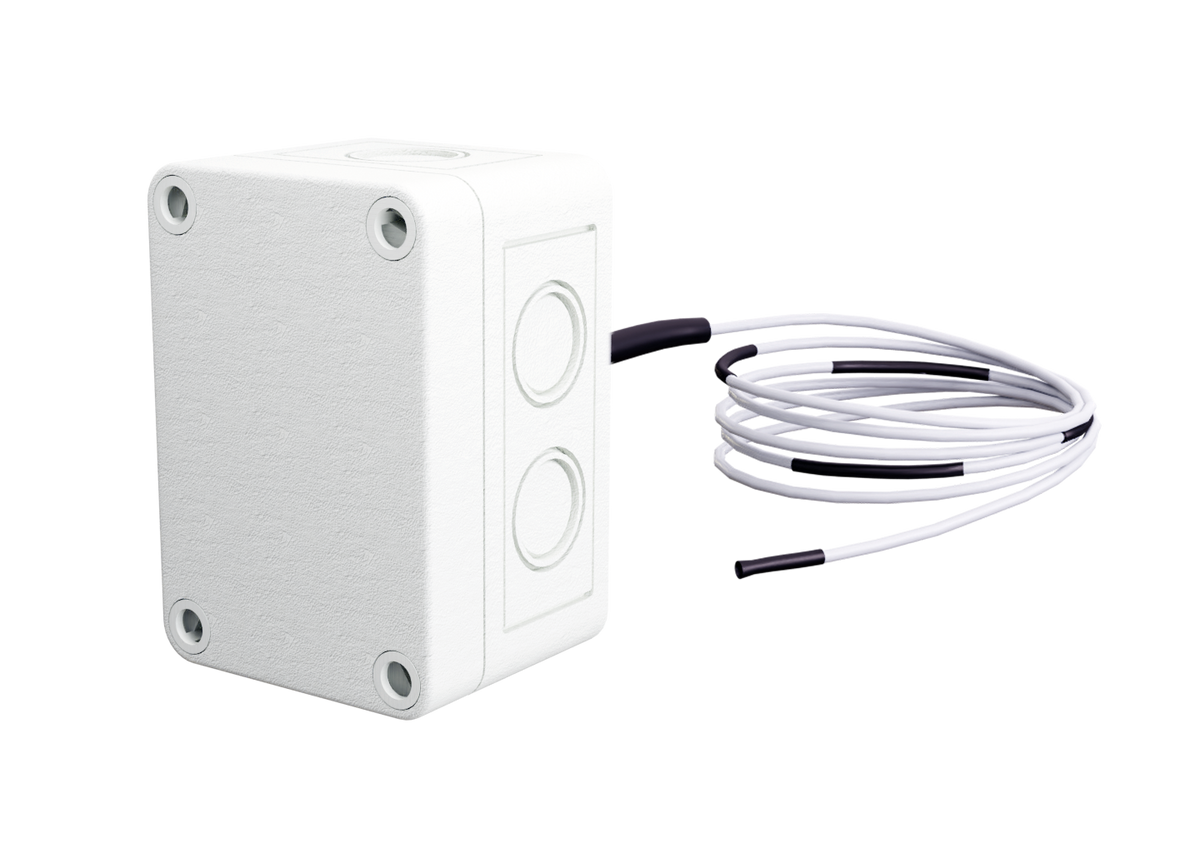

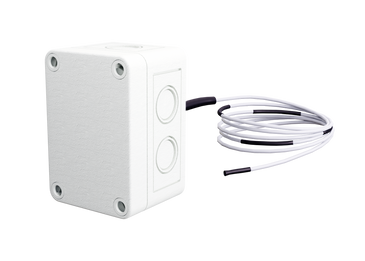

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to A/CP-FA-24'-4X

Documents and manuals

ACI A/CP-FA-24'-4X Documents

Overview

Details for A/CP-FA-24'-4X

A/CP-FA-24'-4X | 10K ohm Type II | Flexible Averaging Temperature Sensor | Averaging Wire Length: 24 feet | NEMA 4X Housing Enclosure Box

The ACI Thermistor Flexible Averaging Series features an 18 AWG Plenum Rated cable sensing element with two, 12 22 AWG Etched Teflon colored lead wires to differentiate the sensor types. The sensors in this series are multi-point. Averaging sensors provide a better overall average temperature of the actual air inside larger ducts when compared to that of a single point sensor. All flexible averaging sensors are limited to being used in applications where operating temperatures are limited and high humidity, chemical resistance, and UV light sources arent required. Each of the sensing elements is protected using a dual wall adhesive lined heat shrink tubing to provide a basic level of moisture protection. The sensor length should be determined by the size of your duct. Standard enclosure options include a galvanized junction box -GD or plastic duct enclosure with hinged cover -PB. Each unit includes nylon wire ties and mounts for mounting. Optional copper capillary or universal plastic mounting clips, NEMA/IP Weather proof enclosures and NIST Certificates are available as referenced in the ordering grid on the back of the product data sheet. Applications: Air Handlers, Roof Top Units, Mixed Air/Discharge/Supply Air Temperature Monitoring, Data Centers, Hospitals

Specifications

Item Number A/CP-FA-24'-4X
Brand ACI
Element Type 10K Type II
Sensing Element Thermistor
Sensor Averaging Wire Length 24 feet
Sensor Configuration Flexible Averaging
Sensor Housing NEMA 4X
Sensor Temperature
