A/CP-BBS | 10K ohm Type II | Brass Button Temperature Sensor | ACI
10, 000 Ohm Thermistor (Type II), Flush Mount Button, Brass
Documents and manuals
ACI A/CP-BBS Documents
Overview
Details for A/CP-BBS

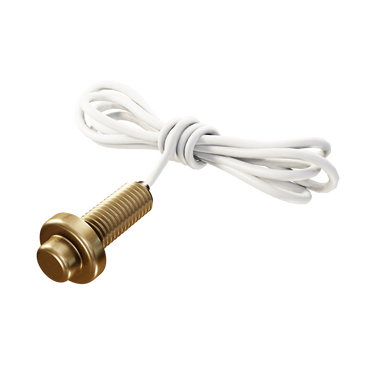

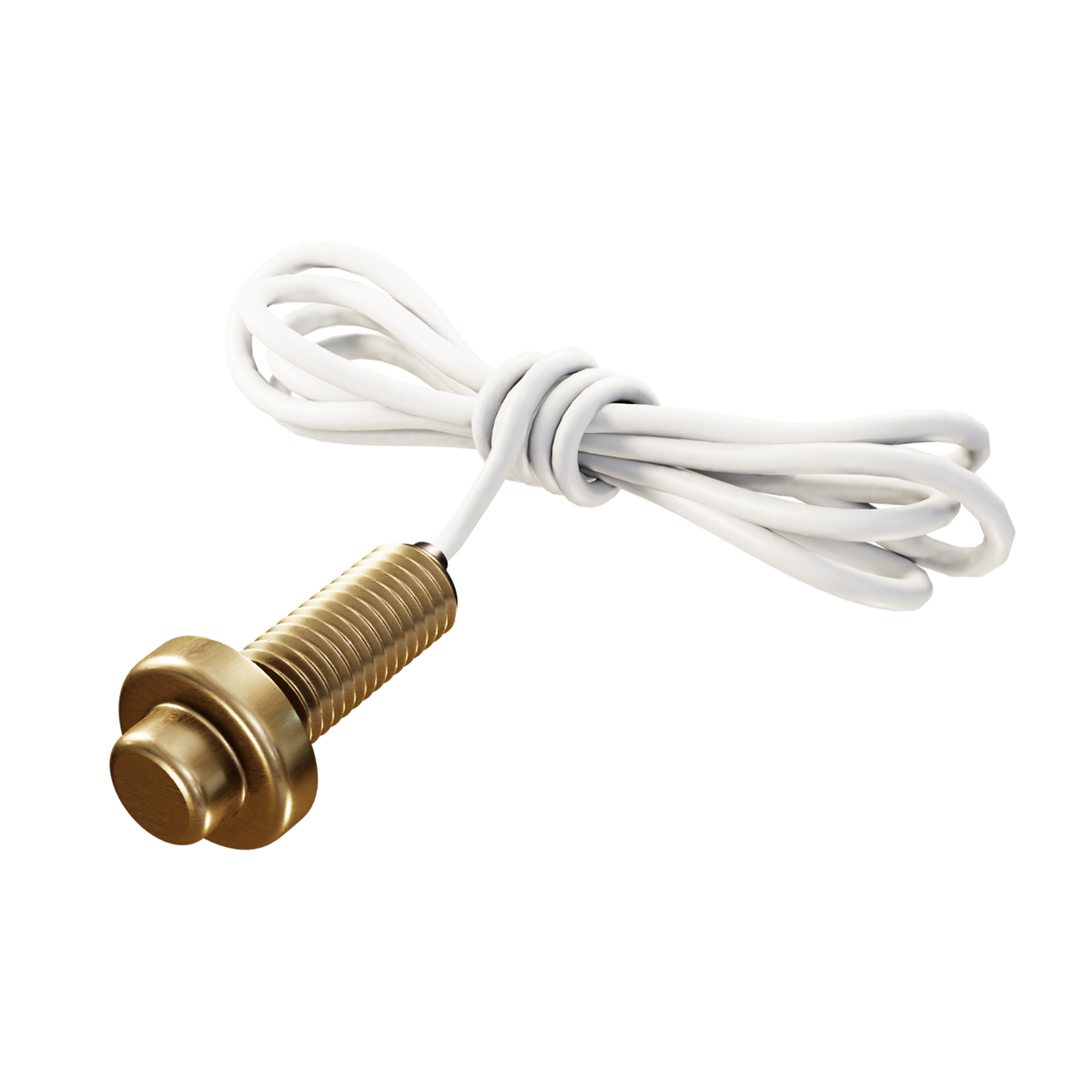

A/CP-BBS | 10K ohm Type II | Brass Button Temperature Sensor
Description
The ACI Thermistor Flush Mount Button Sensors Series features a stainless steel, brass or white plastic button sensor with two, 24 inch 22 AWG Etched Teflon colored lead wires to differentiate the different sensor types. The sensors in this series are manufactured using ACI’s proven encapsulation process to eliminate the effects of moisture upon the sensors and to increase the response times using our high quality, thermally conductive epoxy. This sensor uses a small, low profile design, and should be used in applications where aesthetics is your primary concern. Each unit is supplied with a mounting kit such that they can be hidden underneath cabinets or shelving units, in decorative metal plates, trim, drywall or from a ½” piece of conduit coming down from the ceiling or roof. Note that if painting the sensors, be sure to coat with as little paint as possible to not affect the accuracy or responsiveness of the sensor. Applications: Museums, Historical Buildings, Monitoring Space Temperatures, Office Buildings, Schools, Retail, Remote Sensor
Specifications
| Item Number | A/CP-BBS |
| Brand | ACI |
| Element Type | 10K Type II |
| Sensing Element | Thermistor |
| Sensor Configuration | Button Sensor Brass |
| Sensor | Temperature |
