A/CP-A-12'-4X | 10K ohm Type II | Copper Tube Averaging Temperature Sensor | Averaging Wire Length: 12 feet | NEMA 4X Housing Enclosure Box | ACI

10, 000 Ohm Thermistor (Type II), Copper Averaging, 12', NEMA 4X Enclosure

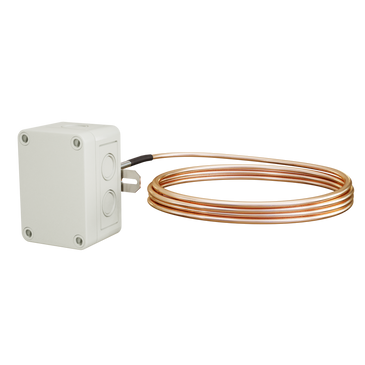

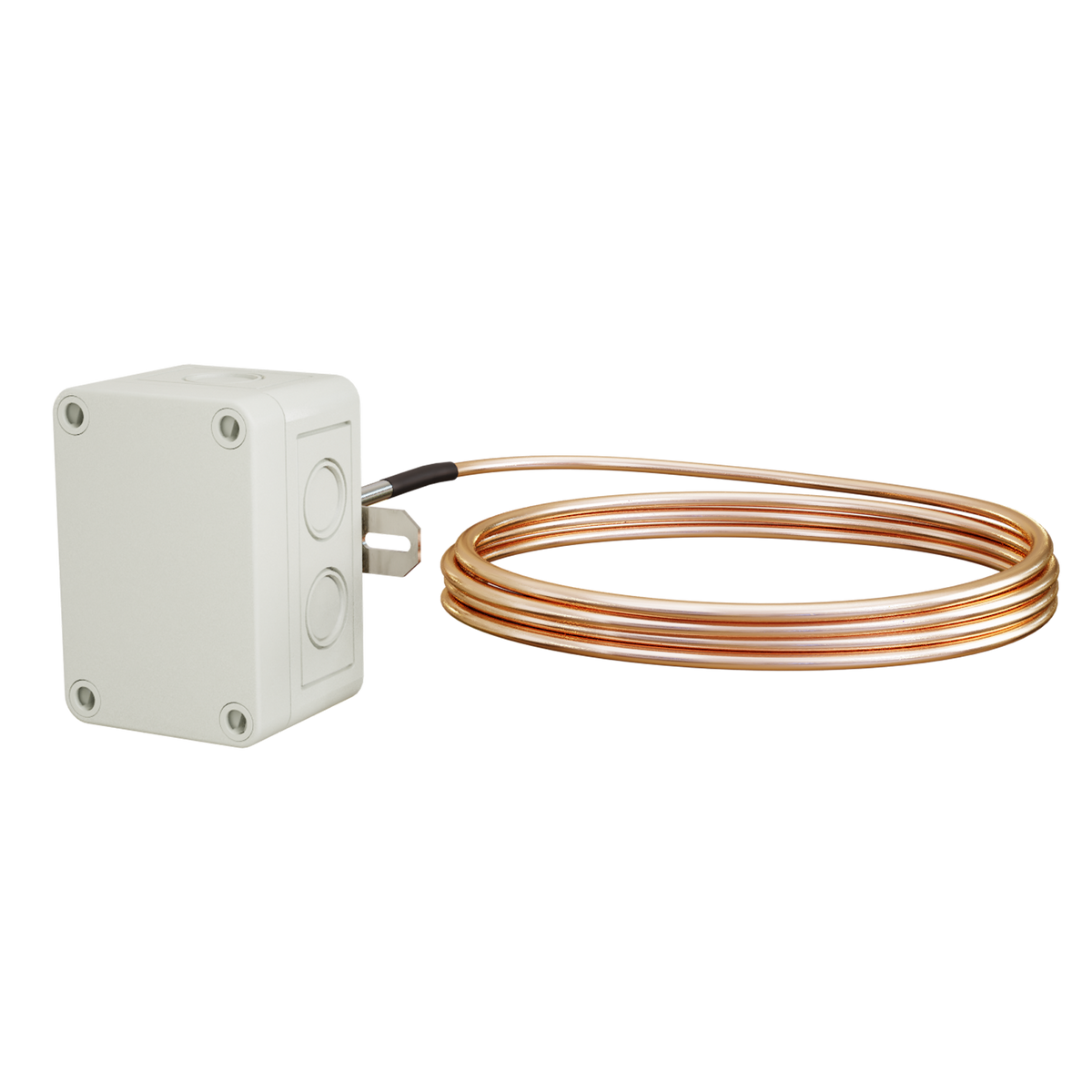

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to A/CP-A-12'-4X

Jump to: Documents Overview Specifications Reviews

Documents and manuals

ACI A/CP-A-12'-4X Documents

Datasheet Installation Instructions More Info

Overview

Details for A/CP-A-12'-4X

A/CP-A-12'-4X | 10K ohm Type II | Copper Tube Averaging Temperature Sensor | Averaging Wire Length: 12 feet | NEMA 4X Housing Enclosure Box

The copper capillary houses sensing elements which are wired in a series/parallel configuration to provide an averaged output. This unit has a polycarbonate NEMA 4X (4X) enclosure which is designed for wet environments and adds a level of corrosion resistance. 10K Ohms @ 77 Deg F (25 Deg C) Type II Thermistor

Specifications

Item Number	A/CP-A-12'-4X
Brand	ACI
Element Type	10K Type II
Sensing Element	Thermistor
Sensor Averaging Wire Length	12 feet
Sensor Configuration	Averaging
Sensor Housing	NEMA 4X
Sensor	Temperature
