Documents: A/BALCO-I-6"-PB

Datasheet Installation Instructions More Info

A/BALCO-I-6"-PB | RTD 1000 ohm (Balco) | Stainless Steel Well Water Fluid Steam Temperature Sensor | Sensor Length: 6 inch | Plastic Box Plain Housing Enclosure Box | ACI

1, 000 Ohm Balco RTD , Immersion, Welded Well, 6", Plastic Enclosure

Brand: ACISKU: A/BALCO-I-6"-PB

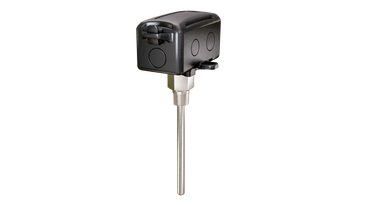

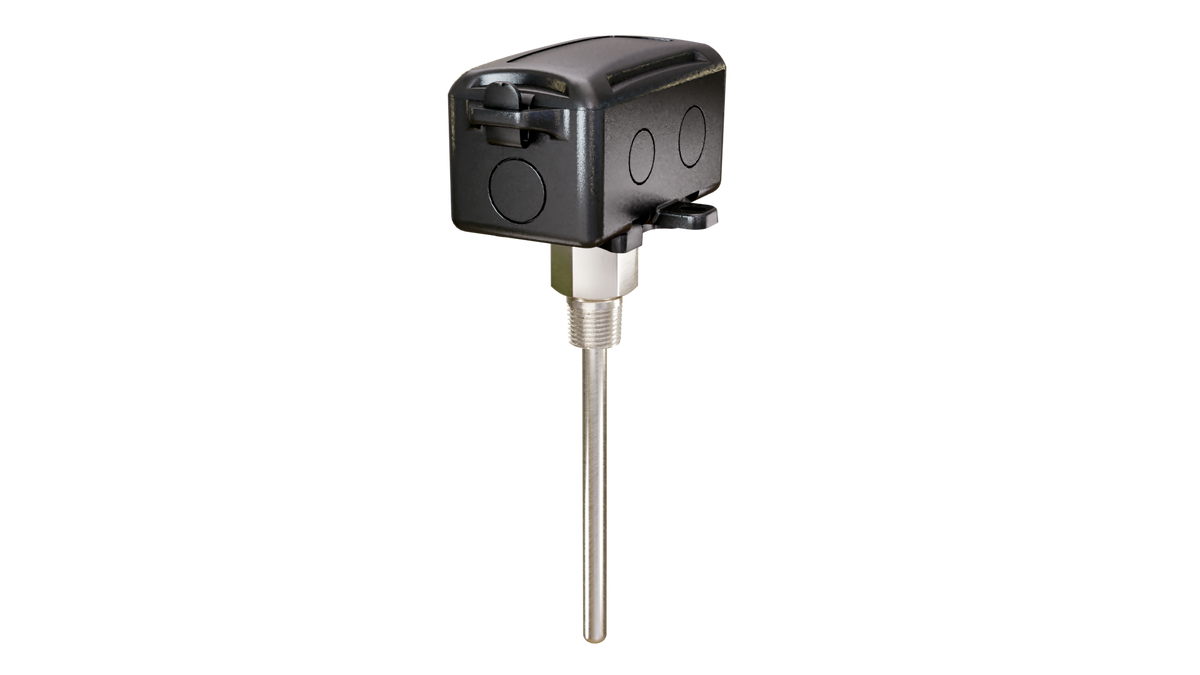

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to A/BALCO-I-6"-PB

Jump to: Overview & Specifications Reviews

Overview Details for A/BALCO-I-6"-PB

A/BALCO-I-6"-PB | RTD 1000 ohm (Balco) | Stainless Steel Well Water Fluid Steam Temperature Sensor | Sensor Length: 6 inch | Plastic Box Plain Housing Enclosure Box

The plastic box, immersion configuration has male 1/2 inch NPT threads. The sensing element is double encapsulated to avoid sensor failures caused by moisture infiltration. ACI also standardizes with etched Teflon lead wires. Please note that the PB enclosure is rated to 203 degrees Fahrenheit. ACI immersion temperature sensors are designed for HVAC, Building Automation Systems, and light industrial applications. Specific applications include: chillers, hot water systems, tanks, and boilers. NOTE: Welded thermowells are not intended for moving water or high pressure service. Fluid velocity and wake frequency are primary factors in well failure. Machined thermowells should be used in these types of applications.

Negative temperature coefficient
Double encapsulated sensor
Easy open / close latch system (no screws)

Specifications

Item Number	A/BALCO-I-6"-PB
Brand	ACI
Element Type	1000 ohm (Balco)
Sensing Element	RTD
Sensor Configuration	Immersion with Well
Sensor Housing	Plastic Box
Sensor Length	6 inch
Sensor	Temperature
