A/BALCO-I-6"-BB | RTD 1000 ohm (Balco) | Stainless Steel Well Water Fluid Steam Temperature Sensor | Sensor Length: 6 inch | NEMA 3R (Bell Box) Housing Enclosure Box | ACI

1, 000 Ohm Balco RTD, Immersion, Welded Well, 6", NEMA 3R Enclosure

ACI | A/BALCO-I-6

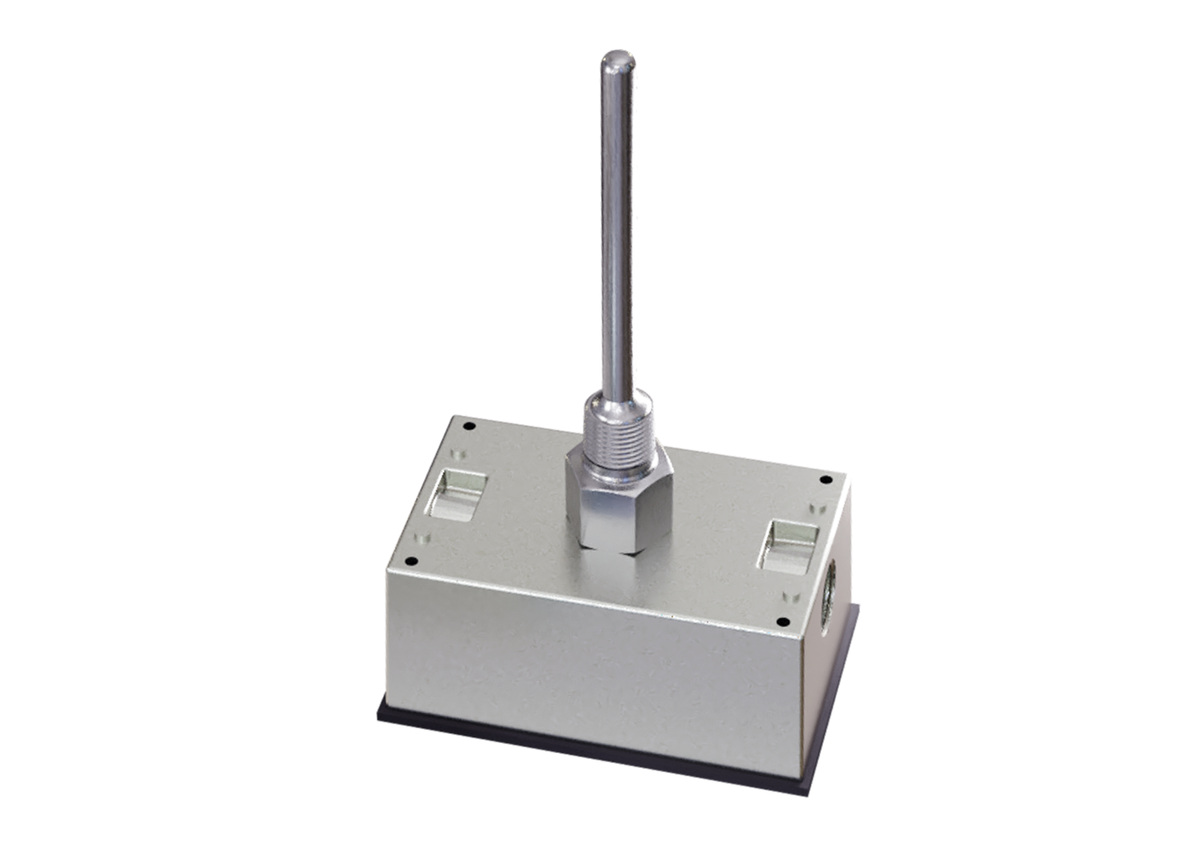

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to A/BALCO-I-6"-BB

Documents and manuals

ACI A/BALCO-I-6"-BB Documents

Overview

Details for A/BALCO-I-6"-BB

A/BALCO-I-6"-BB | RTD 1000 ohm (Balco) | Stainless Steel Well Water Fluid Steam Temperature Sensor | Sensor Length: 6 inch | NEMA 3R (Bell Box) Housing Enclosure Box

The metal bell box, with well configuration has a NEMA 3R rating and is designed for wet environments. It has male 1/2 inch NPT threads and the sensing element is double encapsulated to avoid sensor failures caused by moisture infiltration. ACI also standardizes with etched Teflon lead wires and 2 part wells. ACI immersion temperature sensors are designed for HVAC, Building Automation Systems, and light industrial applications. Specific applications include: chillers, hot water systems, tanks, and boilers. NOTE: Welded thermowells are not intended for moving water or high pressure service. Fluid velocity and wake frequency are primary factors in well failure. Machined thermowells should be used in these types of applications.

  • Negative temperature coefficient
  • Double encapsulated sensor
  • NEMA 3R enclosure

Specifications

Item Number A/BALCO-I-6"-BB
Brand ACI
Element Type 1000 ohm (Balco)
Sensing Element RTD
Sensor Configuration Immersion with Well
Sensor Housing NEMA 3R (Bell Box)
Sensor Length 6 inch
Sensor Temperature
