A/AN-IM-6"-BB | 10K ohm Type III | One Piece Machined Stainless Steel Well Water Fluid Steam Temperature Sensor | Sensor Length: 6 inch | NEMA 3R (Bell Box) Housing Enclosure Box | ACI
10, 000 Ohm Thermistor (Type III), Immersion, Machined Well, 6", NEMA 3R Enclosure
Documents and manuals
ACI A/AN-IM-6"-BB Documents
Overview
Details for A/AN-IM-6"-BB

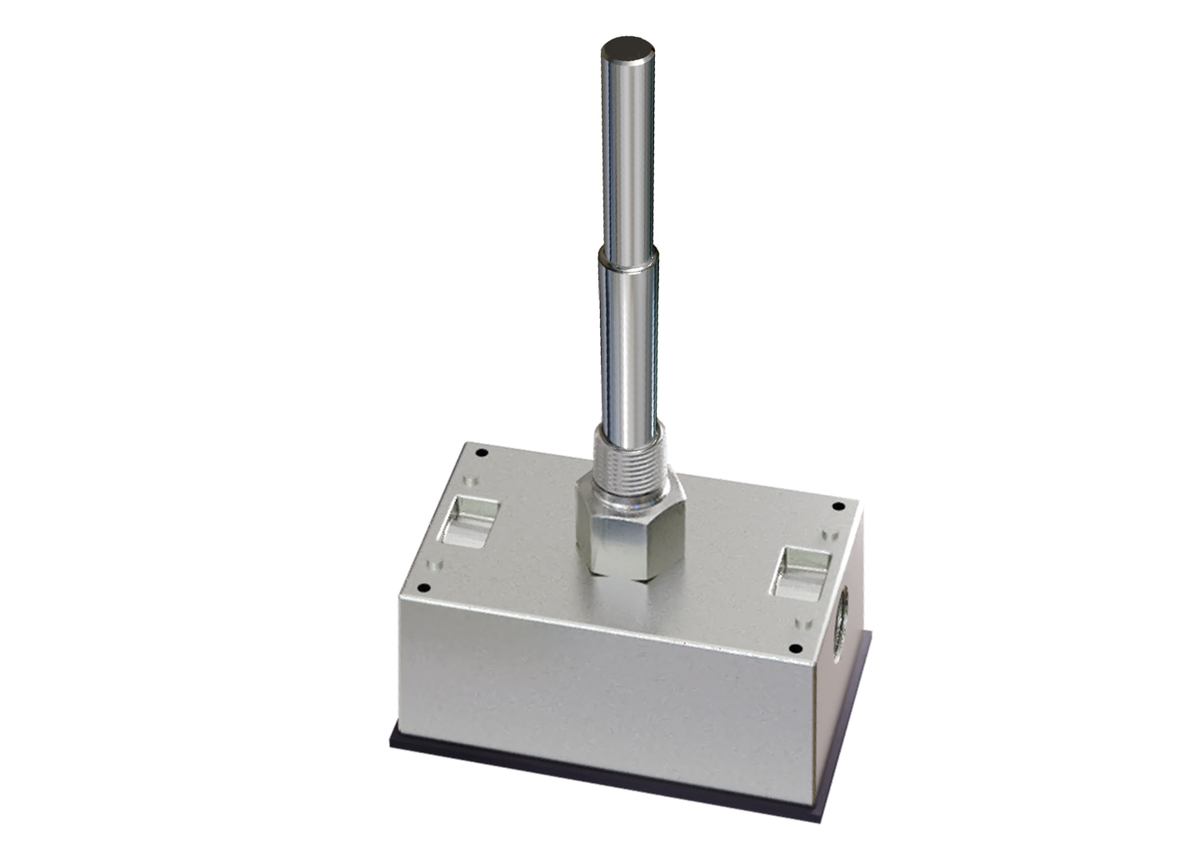

A/AN-IM-6"-BB | 10K ohm Type III | One Piece Machined Stainless Steel Well Water Fluid Steam Temperature Sensor | Sensor Length: 6 inch | NEMA 3R (Bell Box) Housing Enclosure Box
The metal bell box, with well configuration has a NEMA 3R rating and is designed for wet environments. It has male 1/2 inch NPT threads and the sensing element is double encapsulated to avoid sensor failures caused by moisture infiltration. ACI immersion temperature sensors are designed for HVAC, Building Automation Systems, and light industrial applications. Specific applications include: chillers, hot water systems, tanks, and boilers. NOTE: Welded thermowells are not intended for moving water or high pressure service. Fluid velocity and wake frequency are primary factors in well failure. Machined thermowells should be used in these types of applications.
- Negative temperature coefficient
- Double encapsulated sensor
- NEMA 3R enclosure
Specifications
Item Number | A/AN-IM-6"-BB |
Brand | ACI |
Element Type | 10K Type III |
Sensing Element | Thermistor |
Sensor Configuration | Immersion Machined Well |
Sensor Housing | NEMA 3R (Bell Box) |
Sensor Length | 6 inch |
Sensor | Temperature |
