A/AN-BC-RA-24"-PB | 10K ohm w 11K shunt | Rigid Probe Averaging Temperature Sensor | Sensor Length: 24 inch | Plastic Box Plain Housing Enclosure Box | ACI
10, 000 Ohm Thermistor w/11K Shunt, Rigid Probe Averaging, 24", Plastic Enclosure
Documents and manuals
ACI A/AN-BC-RA-24"-PB Documents
Overview
Details for A/AN-BC-RA-24"-PB

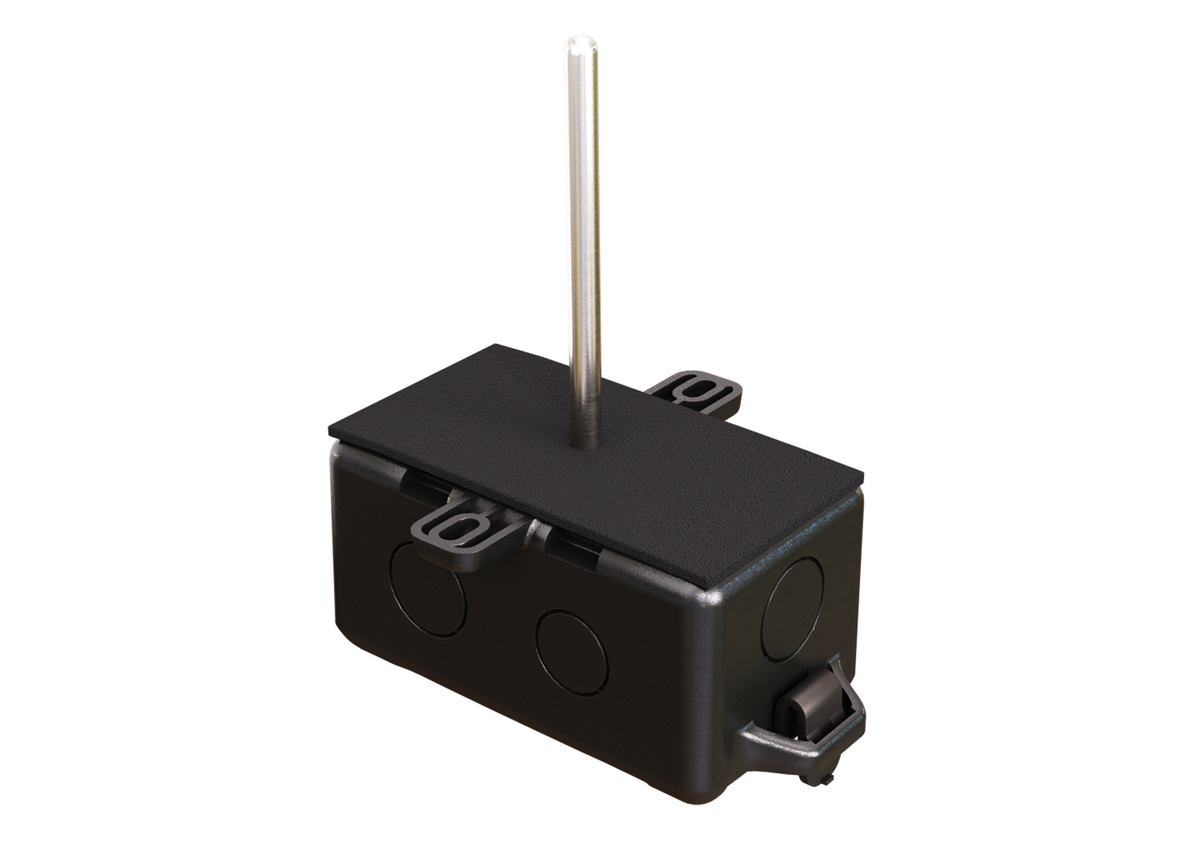

A/AN-BC-RA-24"-PB | 10K ohm w 11K shunt | Rigid Probe Averaging Temperature Sensor | Sensor Length: 24 inch | Plastic Box Plain Housing Enclosure Box
The ACI Thermistor Rigid Averaging Series features a ¼ Diameter stainless steel sensing element with two, 12, 22 AWG Etched Teflon colored lead wires to differentiate the sensor types. The sensors in this series are manufactured with 4 sensing points in lengths from 12 to 36. The rigid averaging sensors will provide a better average temperature of the air inside the duct when compared to a single point sensing element. Each of the elements is hermetically sealed to prevent any moisture intrusion and includes an integrated foam pad to properly seal the duct and dampen vibrations when installed. The benefits of using the rigid averaging sensor is that it mounts like a standard single point duct sensor but includes three additional sensing points for better control. The sensor length should be determined by the size of your duct. Our standard enclosures include the galvanized junction box -GD or plastic duct enclosure -PB with the hinged cover depending on your preference. This series can be ordered with optional NEMA/IP rated weather proof enclosures as referenced in the ordering grid. Applications: Air Handlers, Roof Top Units, Mixed Air/Discharge/Supply/Return Air Temperature Monitoring, Data Centers, Hospitals
Specifications
Item Number | A/AN-BC-RA-24"-PB |
Brand | ACI |
Element Type | 10K w 11K shunt (AN-BC) |
Sensing Element | Thermistor |
Sensor Configuration | Rigid Averaging |
Sensor Housing | Plastic Box |
Sensor Length | 24 inch |
Sensor | Temperature |
