A/AN-BC-DO-6" | 10K ohm w 11K shunt | Duct Temperature Sensor | Sensor Length: 6 inch | ACI

10, 000 Ohm Thermistor w/11K Shunt, Duct, Without Box, 6"

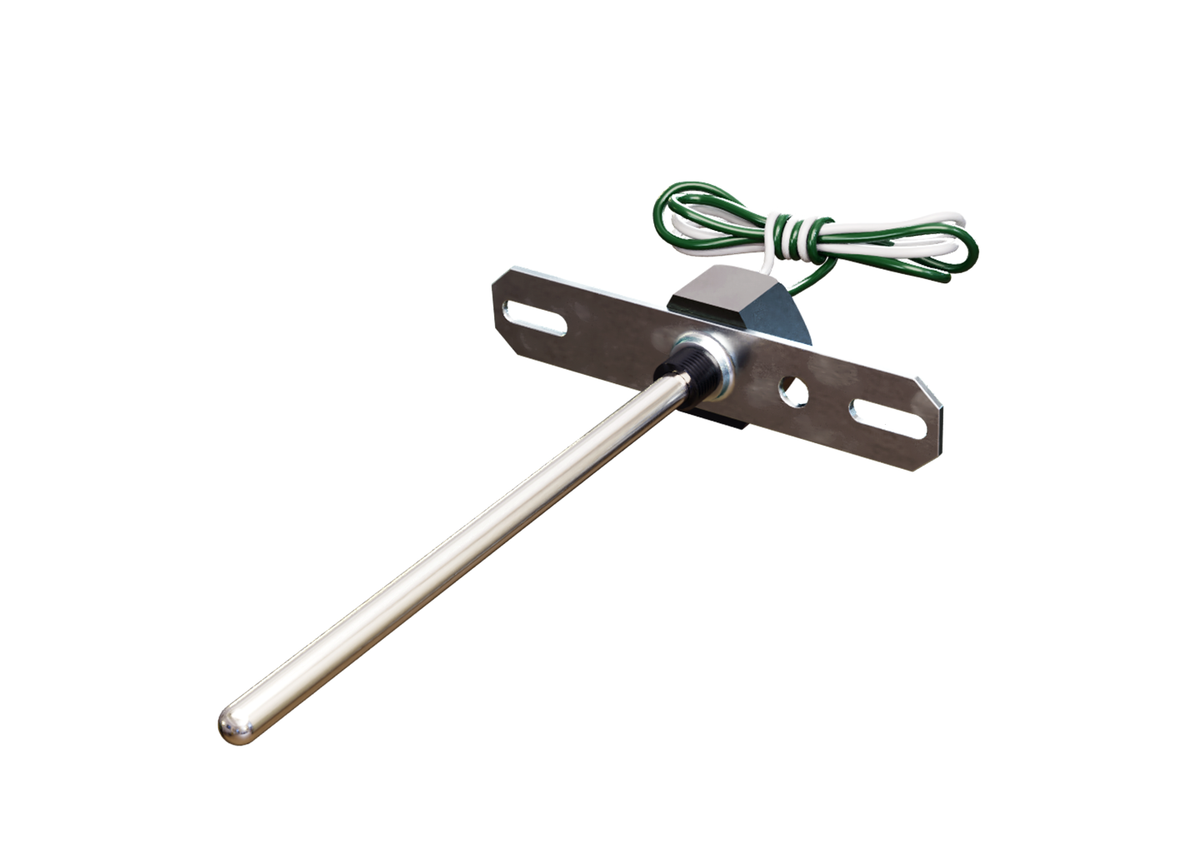

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to A/AN-BC-DO-6"

Jump to: Documents Overview Specifications Reviews

Documents and manuals

ACI A/AN-BC-DO-6" Documents

Datasheet Installation Instructions More Info

Overview

Details for A/AN-BC-DO-6"

A/AN-BC-DO-6" | 10K ohm w 11K shunt | Duct Temperature Sensor | Sensor Length: 6 inch

5.2381K at 77 Deg F (25 Deg C) The standard duct without box configuration has a mounting flange for quick installation and etched-teflon leads. The sensing element is double encapsulated to avoid sensor failures caused by moisture infiltration. Additional options include: plenum rated cable and quick connects for direct termination to male VAV-Controller inputs.

Specifications

Item Number	A/AN-BC-DO-6"
Brand	ACI
Element Type	10K w 11K shunt (AN-BC)
Sensing Element	Thermistor
Sensor Configuration	Duct Only
Sensor Length	6 inch
Sensor	Temperature
