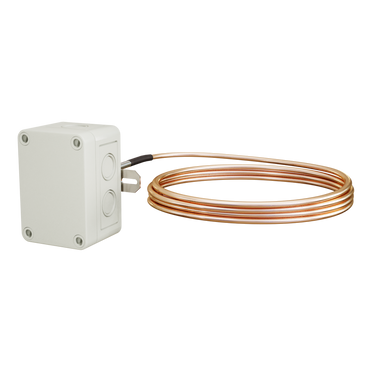

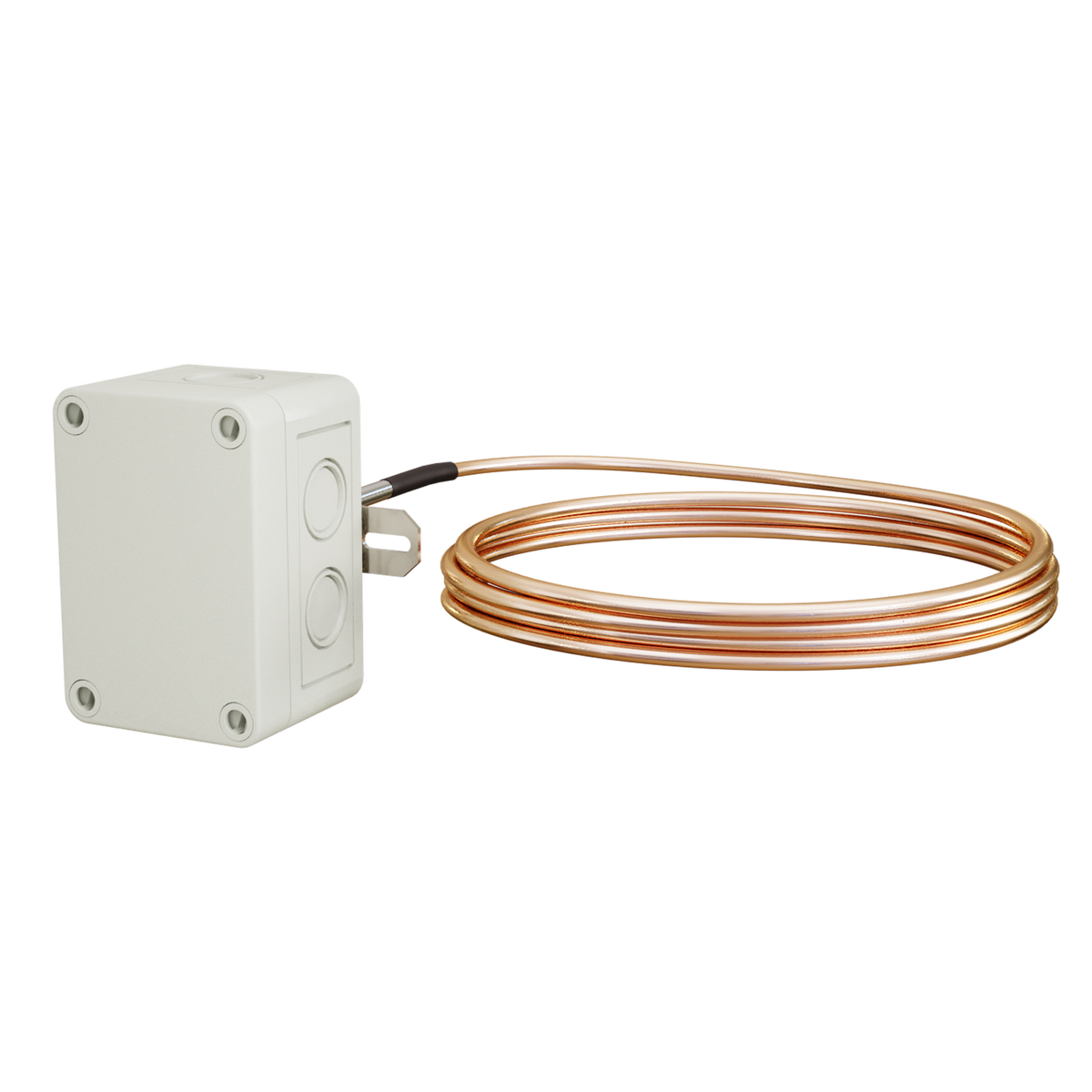

A/AN-BC-A-24'-4X | 10K ohm w 11K shunt | Copper Tube Averaging Temperature Sensor | Averaging Wire Length: 24 feet | NEMA 4X Housing Enclosure Box | ACI

10, 000 Ohm Thermistor w/11K Shunt, Copper Averaging, 24', NEMA 4X Enclosure

Brand: ACISKU: A/AN-BC-A-24'-4X

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to A/AN-BC-A-24'-4X

Jump to: Overview & Specifications Reviews

Overview Details for A/AN-BC-A-24'-4X

A/AN-BC-A-24'-4X | 10K ohm w 11K shunt | Copper Tube Averaging Temperature Sensor | Averaging Wire Length: 24 feet | NEMA 4X Housing Enclosure Box

The copper capillary houses sensing elements which are wired in a series/parallel configuration to provide an averaged output. This unit has a polycarbonate NEMA 4X (4X) enclosure which is designed for wet environments and adds a level of corrosion resistance.

Specifications

Item Number	A/AN-BC-A-24'-4X
Brand	ACI
Element Type	10K w 11K shunt (AN-BC)
Sensing Element	Thermistor
Sensor Averaging Wire Length	24 feet
Sensor Configuration	Averaging
Sensor Housing	NEMA 4X
Sensor	Temperature
