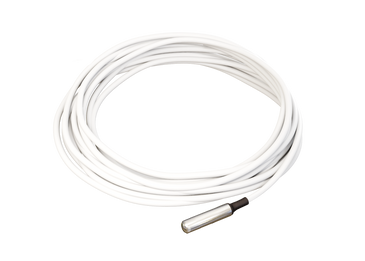

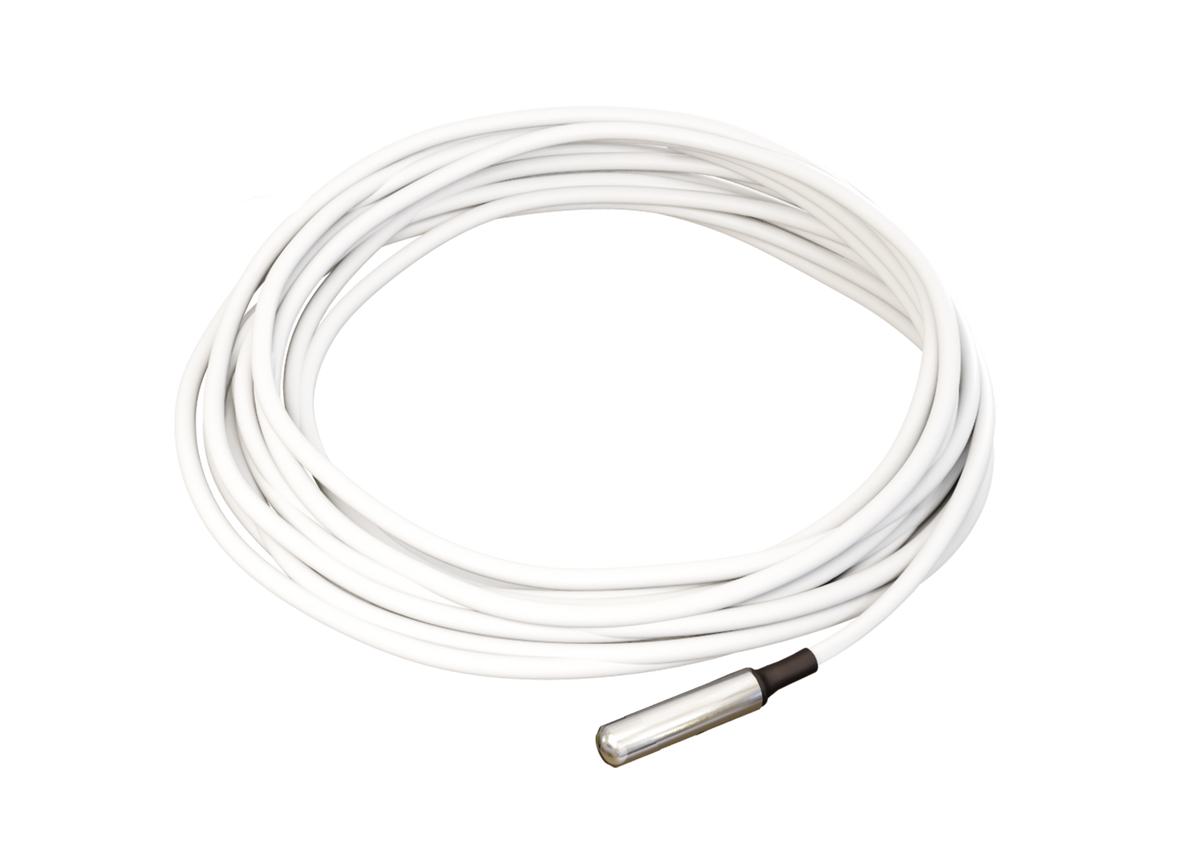

A/2252-BP-20'CL2P | 2.252K ohm | Bullet Probe Temperature Sensor | Included Wire Length: 20 feet | CL2P | ACI

2, 252 Ohm Thermistor, Bullet Probe, 1", 20' Plenum Cable

Brand: ACISKU: A/2252-BP-20'CL2P

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to A/2252-BP-20'CL2P

Jump to: Overview & Specifications Reviews

Overview Details for A/2252-BP-20'CL2P

A/2252-BP-20'CL2P | 2.252K ohm | Bullet Probe Temperature Sensor | Included Wire Length: 20 feet | CL2P

The ACI Thermistor Bullet Probe Series features a one-inch stainless steel probe with two, 24-inch 22 AWG Etched Teflon colored lead wires to differentiate NTC sensor types. The sensors in this series are manufactured using ACIs proven double encapsulation process to eliminate the effects of moisture upon the sensors and to increase the thermal response times using our high quality, thermally conductive epoxy. The bullet style sensor is designed to monitor air temperatures and should not be fully submerged in water. This series can be ordered with different wire options and NIST certificates.

Applications: Roof Top Units, Air Handlers, Discharge Air/Supply/Return/Mixed Air Duct Temperature, Remote Temperature Sensing

Specifications

Item Number	A/2252-BP-20'CL2P
Brand	ACI
Element Type	2.252K
Sensing Element	Thermistor
Sensor Configuration	Bullet Probe
Sensor Wire Length	20 feet
Sensor	Temperature
