A/20K-DO-18"-20'CL2P | 20K ohm | Duct Temperature Sensor | Sensor Length: 18 inch | Included Wire Length: 20 feet | CL2P | ACI
20, 000 Ohm Thermistor, Duct, Without Box, 18", 20' Plenum Cable
Documents and manuals
ACI A/20K-DO-18"-20'CL2P Documents
Overview
Details for A/20K-DO-18"-20'CL2P
A/20K-DO-18"-20'CL2P | 20K ohm | Duct Temperature Sensor | Sensor Length: 18 inch | Included Wire Length: 20 feet | CL2P

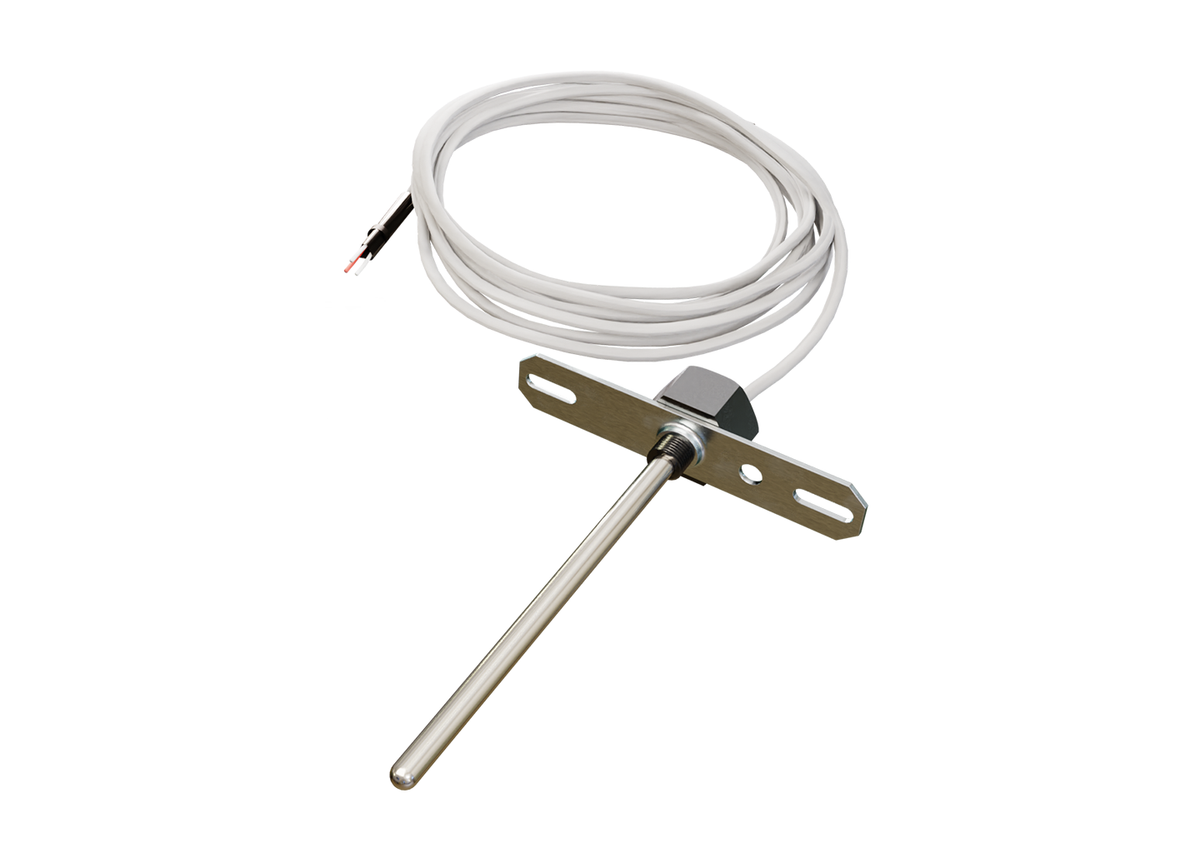

The ACI Thermistor Duct without Box Series features a stainless steel probe with two 22 AWG Etched Teflon colored lead wires to dierentiate the different sensor types. The sensors in this series are manufactured using ACIs proven double encapsulation process to eliminate the effects of moisture upon the sensors and increased response times using our high quality, thermally conductive epoxy. The duct style sensor is designed to be used in smaller duct applications and includes an insulation pad for sealing your duct as well as to dampen vibration. For best results, the sensor length should be determined by the actual width or diameter of your duct such that the tip of the probe is in the approximate center of the duct. On larger ducts, you may want to refer to our Rigid or Bendable Copper Averaging sensor for increased sensing points and better temperature control. The Duct without Box Series can be ordered with optional plenum rated cables and NIST Certificates.
Applications: Roof Top Units, Air Handlers, Monitoring Supply/Discharge/Return/Mixed Air Temperatures
The ACI Thermistor Duct without Box Series is covered by ACI's Five (5) Year Limited Warranty. The warranty can be found in the front of ACI's Sensors & Transmitters catalog, as well as on ACI's website, www.workaci.com.
Specifications
Item Number | A/20K-DO-18"-20'CL2P |
Brand | ACI |
Element Type | 20K |
Sensing Element | Thermistor |
Sensor Configuration | Duct Only |
Sensor Length | 18 inch |
Sensor Wire Length | 20 feet |
Sensor | Temperature |
