Documents: A/1K-NI-BP-10'CL2P

Datasheet Installation Instructions More Info

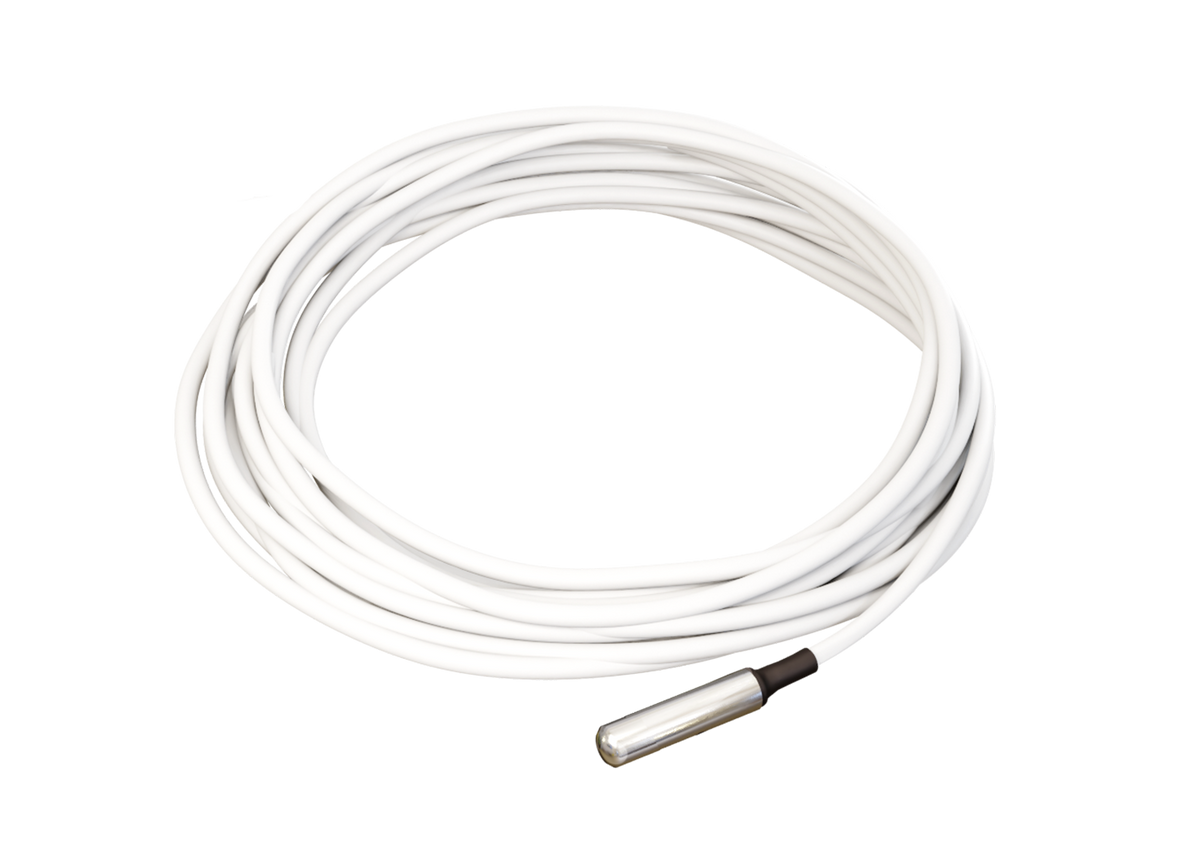

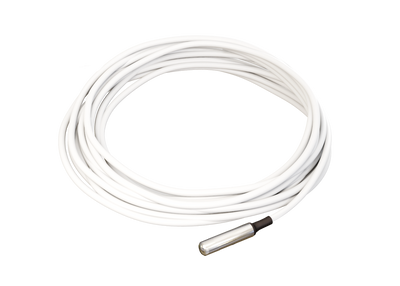

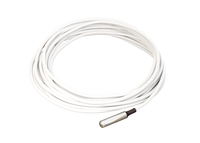

A/1K-NI-BP-10'CL2P | RTD 1000 ohm (Nickel) | Bullet Probe Temperature Sensor | Included Wire Length: 10 feet | CL2P | ACI

1, 000 Ohm Nickel RTD, Bullet Probe, 1", 10' Plenum Cable

Brand: ACISKU: A/1K-NI-BP-10'CL2P

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to A/1K-NI-BP-10'CL2P

Jump to: Overview & Specifications Reviews

Overview Details for A/1K-NI-BP-10'CL2P

A/1K-NI-BP-10'CL2P | RTD 1000 ohm (Nickel) | Bullet Probe Temperature Sensor | Included Wire Length: 10 feet | CL2P

The ACI Nickel Bullet Probe Series features a one inch stainless steel probe with two, 24 inch 22 AWG Etched Teflon colored lead wires to differentiate the sensor types. The sensors in this series are manufactured using ACIs proven double encapsulation process to eliminate the effects of moisture upon the sensors and to increase the thermal response times using our high quality, thermally conductive epoxy. The bullet style sensor is designed to be used to monitor air temperatures and should not be fully submerged in water. This series can be ordered with different wire options and NIST Certification as referenced in the Ordering grid on the back of the product data sheet.

Applications: Roof Top Units, Air Handlers, Discharge Air/Supply/Return/Mixed Air Duct Temperature, Remote Temperature Sensing

Specifications

Item Number	A/1K-NI-BP-10'CL2P
Brand	ACI
Element Type	1000 ohm (Nickel)
Sensing Element	RTD
Sensor Configuration	Bullet Probe
Sensor Wire Length	10 feet
Sensor	Temperature
