A/1K-3W-HT-I-4
Get Special Pricing!
Log In or Create an Account for the LOWEST PRICING on our most Popular Brands!
Brand: ACISKU: A/1K-3W-HT-I-4"-GD

Web Price:

$94.61
Availability: This product is currently available to purchase
Contact us for price breaks on large quantities!
Orders over $999 ship FREE*
*Free shipping applies within the continental US and weighing less than 50 lbs.
Shipping and Returns Terms
Image for Technical Expert

Speak With a Technical Expert

Call (847) 773-0645

Hours: 9am - 5pm CDT M-F

A/1K-3W-HT-I-4"-GD | High Temp RTD 1000 ohm (3 wire) | Stainless Steel Well Water Fluid Steam Temperature Sensor | Sensor Length: 4 inch | Galvanized Housing Enclosure Box | ACI

1, 000 Ohm (Three Wires) RTD, High Temperature Immersion, Welded Well, 4", Galvanized Enclosure

ACI | A/1K-3W-HT-I-4

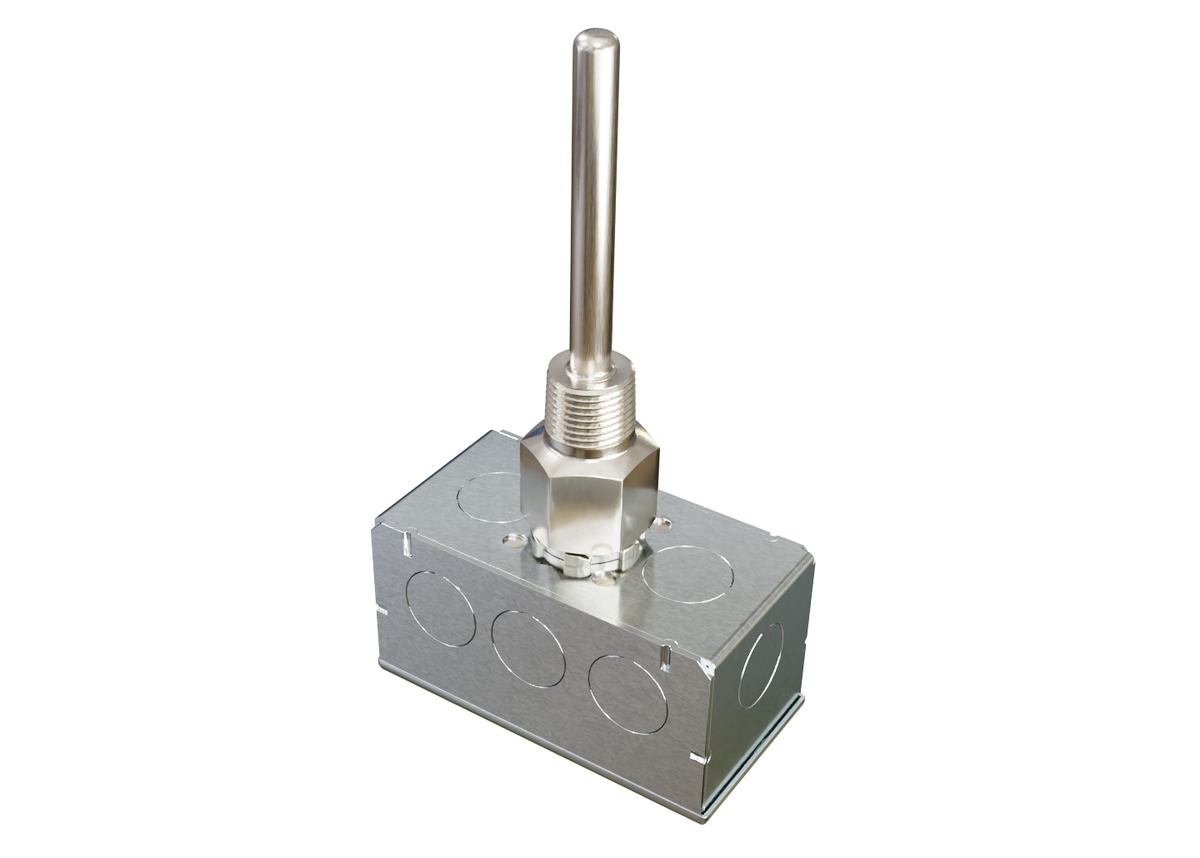

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to A/1K-3W-HT-I-4"-GD

Documents and manuals

ACI A/1K-3W-HT-I-4"-GD Documents

Overview

Details for A/1K-3W-HT-I-4"-GD

A/1K-3W-HT-I-4"-GD | High Temp RTD 1000 ohm (3 wire) | Stainless Steel Well Water Fluid Steam Temperature Sensor | Sensor Length: 4 inch | Galvanized Housing Enclosure Box

The ACI High Temperature Immersion Series sensors and transmitters are a single point immersion sensor featuring a three wire RTD sensor assembly using Nickel Fiberglass Lead wires, a 316 Series stainless steel probe, and a Machined 304 SS Steel thermowell. The INW version of the product can be ordered without the thermowell for applications in which there is an existing thermowell, increased design parameters or other materials are required for higher corrosion resistance. The three wire sensors can be used with a two-wire transmitter by connecting the two (Red) colored wires to one of the RTD Terminal blocks with the 3rd wire (White) wire going to the second RTD Terminal block. The purpose of the 3rd wire is to compensate for external lead wire resistance that will affect the accuracy of your sensor output when using with a three-wire temperature transmitter or sensor configuration on your Building Management System or PLC (Programmable Logic Controller. ACI recommends the use of 18 AWG lead wires to reduce the external lead wire resistance when using a Platinum RTD. The operating specifications are for both the sensor and transmitter as designated in the specification table. Standard enclosure options include the -GD Galvanized or -BB Aluminum weather proof enclosure. NIST Certificates are available for all of the configurations listed in the ordering grid on the back of the product data sheet. For best accuracy, ACI recommends the use of the TTM100 or TTM1K Series Matched transmitters with a 3 or 5 Point NIST Calibration Certificate since they include a second calibration step in which the RTD and transmitter are calibrated together as a system, which removes most of the sensor error over the calibrated temperature span of the transmitter. Applications: Burners, Boilers, Stacks, Exhaust, Incinerators, Ovens, Plastics Processing, Process Heating, Process Control, Steam Lines

Specifications

Item Number A/1K-3W-HT-I-4"-GD
Brand ACI
Element Type 1000 ohm (3 wire)
Sensing Element RTD (High Temp)
Sensor Configuration Immersion with Well
Sensor Housing Galvanized
Sensor Length 4 inch
Sensor Temperature
