A/1K-3W-DO-6"-20'CL2P | RTD 1000 ohm (3 wire) | Duct Temperature Sensor | Sensor Length: 6 inch | Included Wire Length: 20 feet | CL2P | ACI

1, 000 Ohm (Three Wires) RTD, Duct, Without Box, 6", 20' Plenum Cable

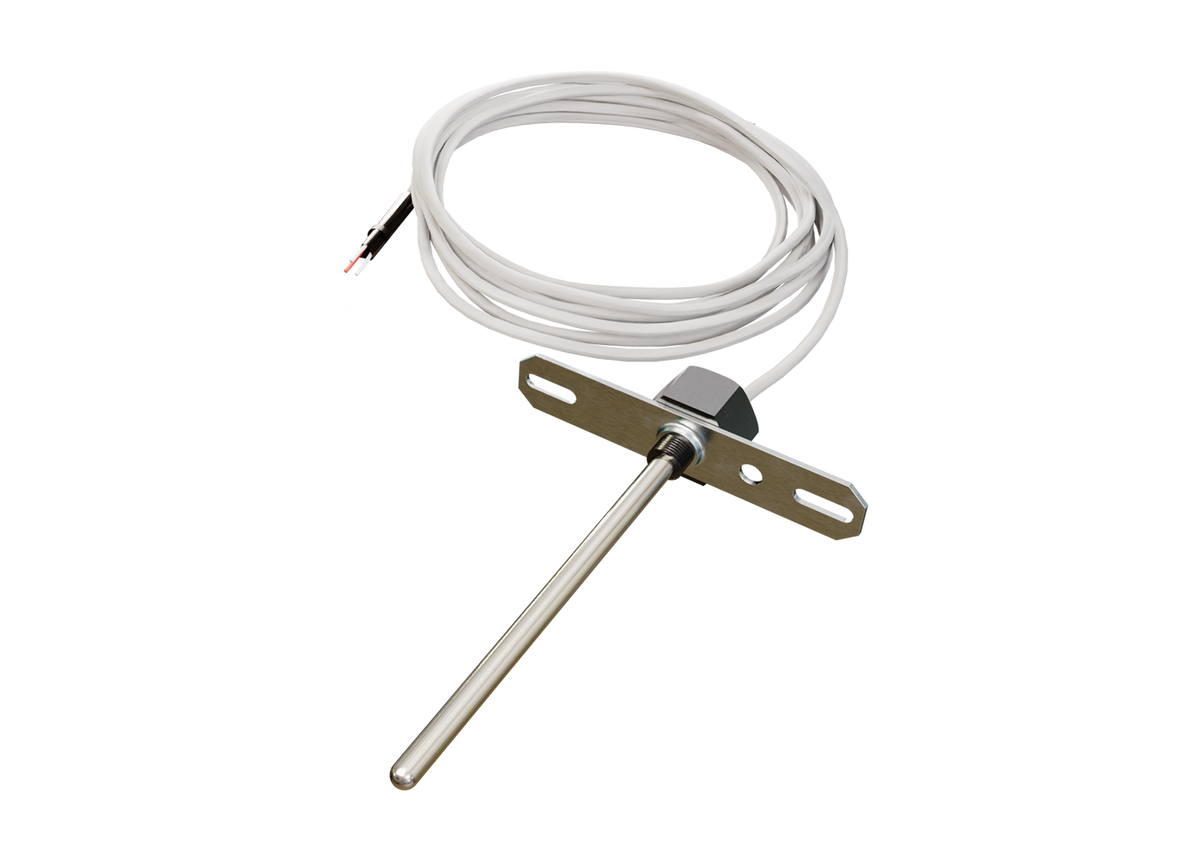

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to A/1K-3W-DO-6"-20'CL2P

Jump to: Documents Overview Specifications Reviews

Documents and manuals

ACI A/1K-3W-DO-6"-20'CL2P Documents

Datasheet Installation Instructions More Info

Overview

Details for A/1K-3W-DO-6"-20'CL2P

The plenum rated ACI CL2P cable (shielded) is rated from -40 to 302°F (-40 to 150°C). With an integrated mounted flange, these sensors provide a predictable and accurate output over the specified temperature range. Each sensor is double encapsulated and manufactured for long-term quality.

Specifications

Item Number	A/1K-3W-DO-6"-20'CL2P
Brand	ACI
Element Type	1000 ohm (3 wire)
Sensing Element	RTD
Sensor Configuration	Duct Only
Sensor Length	6 inch
Sensor Wire Length	20 feet
Sensor	Temperature
