Documents: A/1K-2W-INW-2.5"-BB
A/1K-2W-INW-2.5"-BB | RTD 1000 ohm (2 wire) | Well Water Fluid Steam Temperature Sensor | Sensor Length: 2.5 inch | NEMA 3R (Bell Box) Housing Enclosure Box | ACI
1, 000 Ohm (Two Wires) RTD, Immersion, No Well, 2.5", NEMA 3R Enclosure
Overview Details for A/1K-2W-INW-2.5"-BB
A/1K-2W-INW-2.5"-BB | RTD 1000 ohm (2 wire) | Well Water Fluid Steam Temperature Sensor | Sensor Length: 2.5 inch | NEMA 3R (Bell Box) Housing Enclosure Box

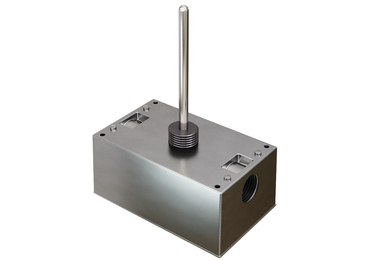

The metal bell box, no well configuration has a NEMA 3R rating and is designed for wet environments. It has male 1/2 inch NPT threads and the sensing element is double encapsulated to avoid sensor failures caused by moisture infiltration. ACI also standardizes with etched Teflon lead wires and wells must be ordered separately for this part. ACI immersion temperature sensors are designed for HVAC, Building Automation Systems, and light industrial applications. Specific applications include: chillers, hot water systems, tanks, and boilers. NOTE: Welded thermowells are not intended for moving water or high pressure service. Fluid velocity and wake frequency are primary factors in well failure. Machined thermowells should be used in these types of applications.
- Negative temperature coefficient
- Double encapsulated sensor
- NEMA 3R enclosure
Specifications
Item Number | A/1K-2W-INW-2.5"-BB |
Brand | ACI |
Element Type | 1000 ohm (2 wire) |
Sensing Element | RTD |
Sensor Configuration | Immersion No Well |
Sensor Housing | NEMA 3R (Bell Box) |
Sensor Length | 2.5 inch |
Sensor | Temperature |
