A/100KS-BP-20'CL2P | 100K ohm | Bullet Probe Temperature Sensor | Included Wire Length: 20 feet | CL2P | ACI
100, 000 Ohm Thermistor, Bullet Probe, 1", 20' Plenum Cable
Documents and manuals
ACI A/100KS-BP-20'CL2P Documents
Overview
Details for A/100KS-BP-20'CL2P
A/100KS-BP-20'CL2P | 100K ohm | Bullet Probe Temperature Sensor | Included Wire Length: 20 feet | CL2P

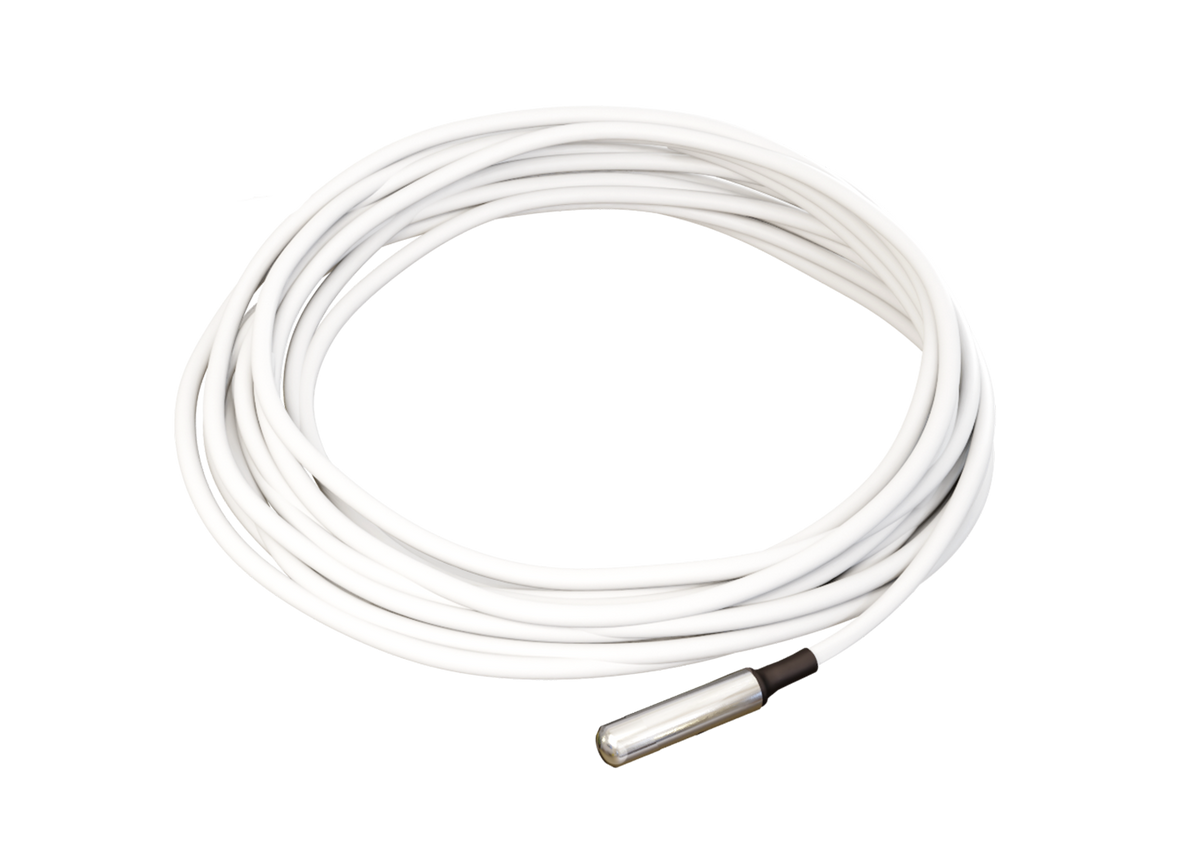

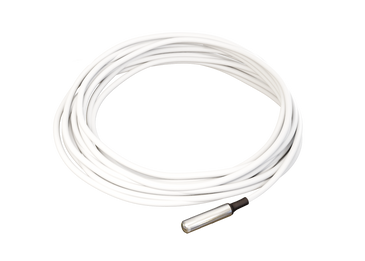

The ACI Thermistor Bullet Probe Series features a one-inch stainless steel probe with two, 24-inch 22 AWG Etched Teflon colored lead wires to differentiate NTC sensor types. The sensors in this series are manufactured using ACIs proven double encapsulation process to eliminate the effects of moisture upon the sensors and to increase the thermal response times using our high quality, thermally conductive epoxy. The bullet style sensor is designed to monitor air temperatures and should not be fully submerged in water. This series can be ordered with different wire options and NIST certificates.
Applications: Roof Top Units, Air Handlers, Discharge Air/Supply/Return/Mixed Air Duct Temperature, Remote Temperature Sensing
Specifications
Item Number | A/100KS-BP-20'CL2P |
Brand | ACI |
Element Type | 100KS |
Sensing Element | Thermistor |
Sensor Configuration | Bullet Probe |
Sensor Wire Length | 20 feet |
Sensor | Temperature |
