A/100-LTS-4X-50' | RTD 100 ohm (3 wire) | Freezer Glycol Extreme Cold Temperature Sensor | NEMA 4X Housing Enclosure Box | Included Wire Length: 50 feet | ACI

A/100-LTS-4X-50' | RTD 100 ohm (3 wire) | Freezer Glycol Extreme Cold Temperature Sensor | NEMA 4X Housing Enclosure Box | Included Wire Length: 50 feet

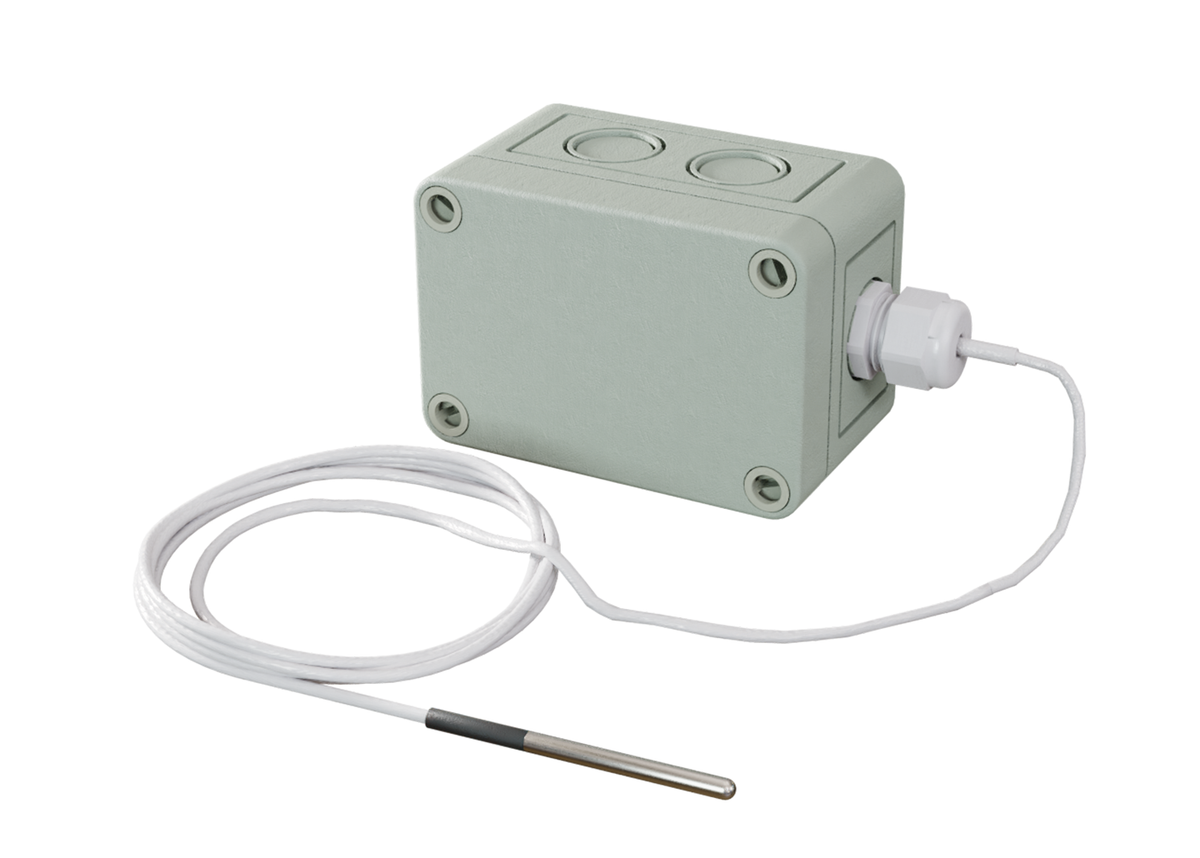

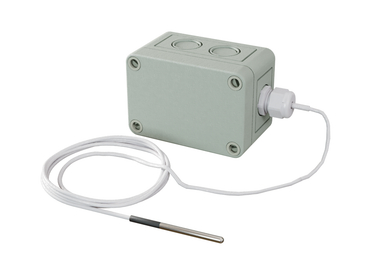

The ACI RTD Freezer Series features a 3/16 diameter stainless steel probe with a 10 Foot or 30 Foot, 3 Conductor, 24 AWG Plenum rated jacketed Teflon cable. The sensors in this series are manufactured using ACIs proven encapsulation process to eliminate the effects of moisture upon the sensors. The sensor is designed to be used in Pharmaceutical, Liquid Nitrogen, Freezers, Refrigerators and Hydronic applications where a remote sensor is required due to the extreme temperature ranges and presence of ice and moisture. An optional -GD galvanized or -4x NEMA 4X weather proof enclosure and NIST Certificates are available as referenced in the ordering grid on the product data sheet. The Freezer RTD sensors can be used with any of the Single or Triple Point Glycol Kits for use in applications where a Thermal Buffer (slower) response time is desired. Please contact ACI for more information regarding this sensor or to discuss your application in further detail. Other options may be available upon request. Applications: Pharmaceutical, Liquid Nitrogen, Refrigerators, Freezers, Hydronic Heating, Remote Sensor Applications
