A/100-3W-LT-I-6"-GD | Low Temp RTD 100 ohm (3 wire) | Stainless Steel Well Water Fluid Steam Temperature Sensor | Sensor Length: 6 inch | Galvanized Housing Enclosure Box | ACI

100 Ohm (Three Wires) RTD, Low Temperature Immersion, 6", Galvanized Enclosure

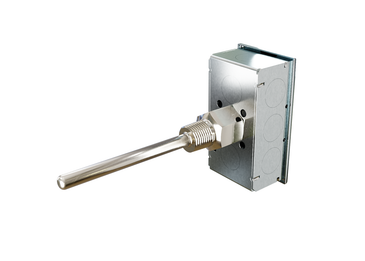

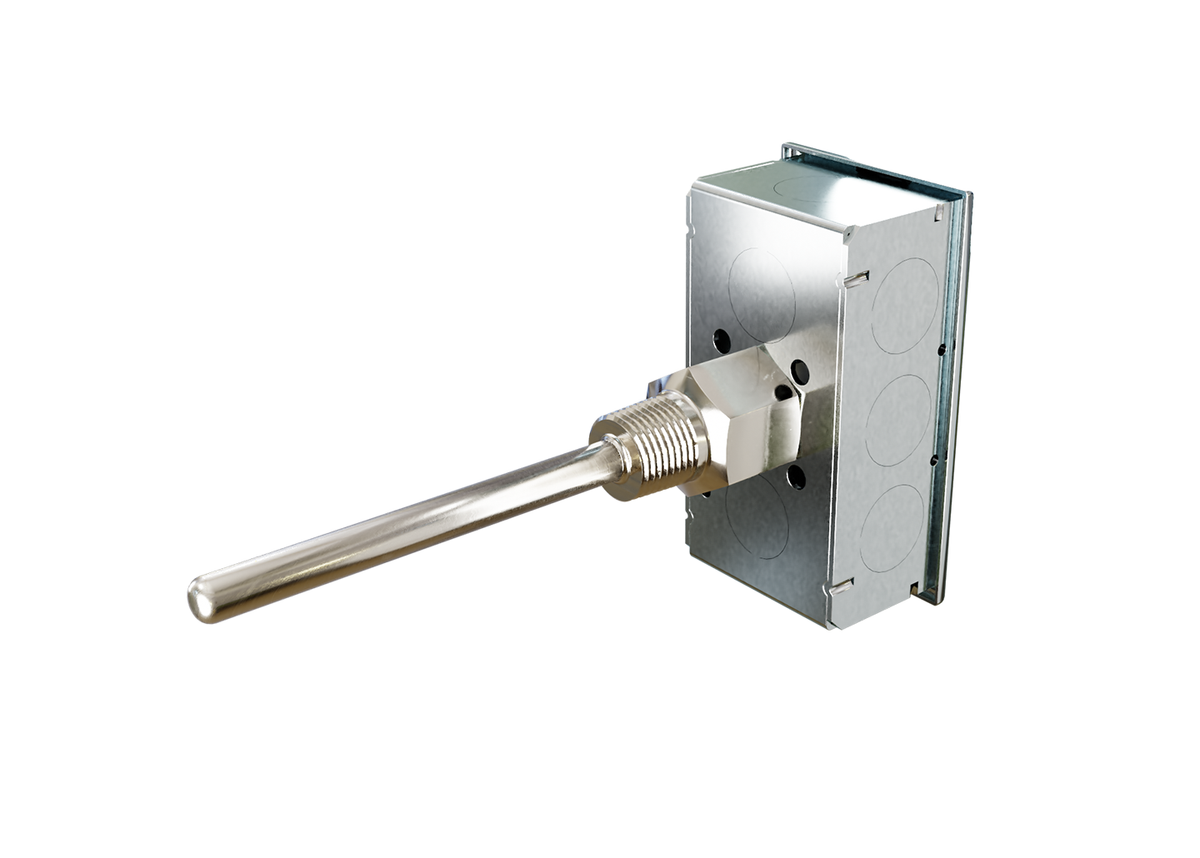

ACI | A/100-3W-LT-I-6
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to A/100-3W-LT-I-6"-GD

Documents and manuals

ACI A/100-3W-LT-I-6"-GD Documents

Overview

Details for A/100-3W-LT-I-6"-GD

A/100-3W-LT-I-6"-GD | Low Temp RTD 100 ohm (3 wire) | Stainless Steel Well Water Fluid Steam Temperature Sensor | Sensor Length: 6 inch | Galvanized Housing Enclosure Box

The ACI Low Temperature Immersion Series sensors and transmitters are a single point immersion sensor featuring a three wire RTD sensor assembly using Teflon insulated lead wires and a 316 Series stainless steel probe. The three wire sensors can be used with a two wire transmitter by connecting the two (Red) colored wires to one of the RTD Terminal blocks with the 3rd (White) wire going to the second RTD Terminal block. The purpose of the 3rd wire is to compensate for external lead wire resistance that will affect the accuracy of your sensor output when using with a three wire temperature transmitter or sensor configuration on your Building Management System or PLC (Programmable Logic Controller. ACI recommends the use of 18 AWG lead wires to reduce the external lead wire resistance when using a Platinum RTD. The operating specifications are for both the sensor and transmitter as designated in the specification table. The overall accuracy of the temperature transmitter must be calculated using the transmitter calibrated accuracy plus that of the sensor error over temperature unless ordering as a TTM matched transmitter. Standard enclosure options include the -GD Galvanized or -BB Aluminum weather proof enclosure. NIST Certificates are available for all of the configurations listed in the ordering grid on the back of the product data sheet. For best accuracy, ACI recommends the use of the TTM100 or TTM1K Series Matched transmitters since they include a second calibration step in which the RTD and transmitter are calibrated together as a system, in order to remove most of the sensor error over the calibrated temperature span of the transmitter. Applications: Chillers, Pharmaceutical, Refrigeration, Process Cooling, Industrial Process Control

Specifications

Item Number A/100-3W-LT-I-6"-GD
Brand ACI
Element Type 100 ohm (3 wire)
Sensing Element RTD (Low Temp)
Sensor Configuration Immersion with Well
Sensor Housing Galvanized
Sensor Length 6 inch
Sensor Temperature
