A/100-3W-I-6"-GD | RTD 100 ohm (3 wire) | Stainless Steel Well Water Fluid Steam Temperature Sensor | Sensor Length: 6 inch | Galvanized Housing Enclosure Box | ACI
100 Ohm (Three Wires) RTD, Immersion, Welded Well, 6", Galvanized Enclosure
Documents and manuals
ACI A/100-3W-I-6"-GD Documents
Overview
Details for A/100-3W-I-6"-GD
A/100-3W-I-6"-GD | RTD 100 ohm (3 wire) | Stainless Steel Well Water Fluid Steam Temperature Sensor | Sensor Length: 6 inch | Galvanized Housing Enclosure Box

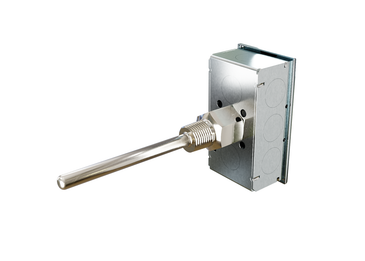

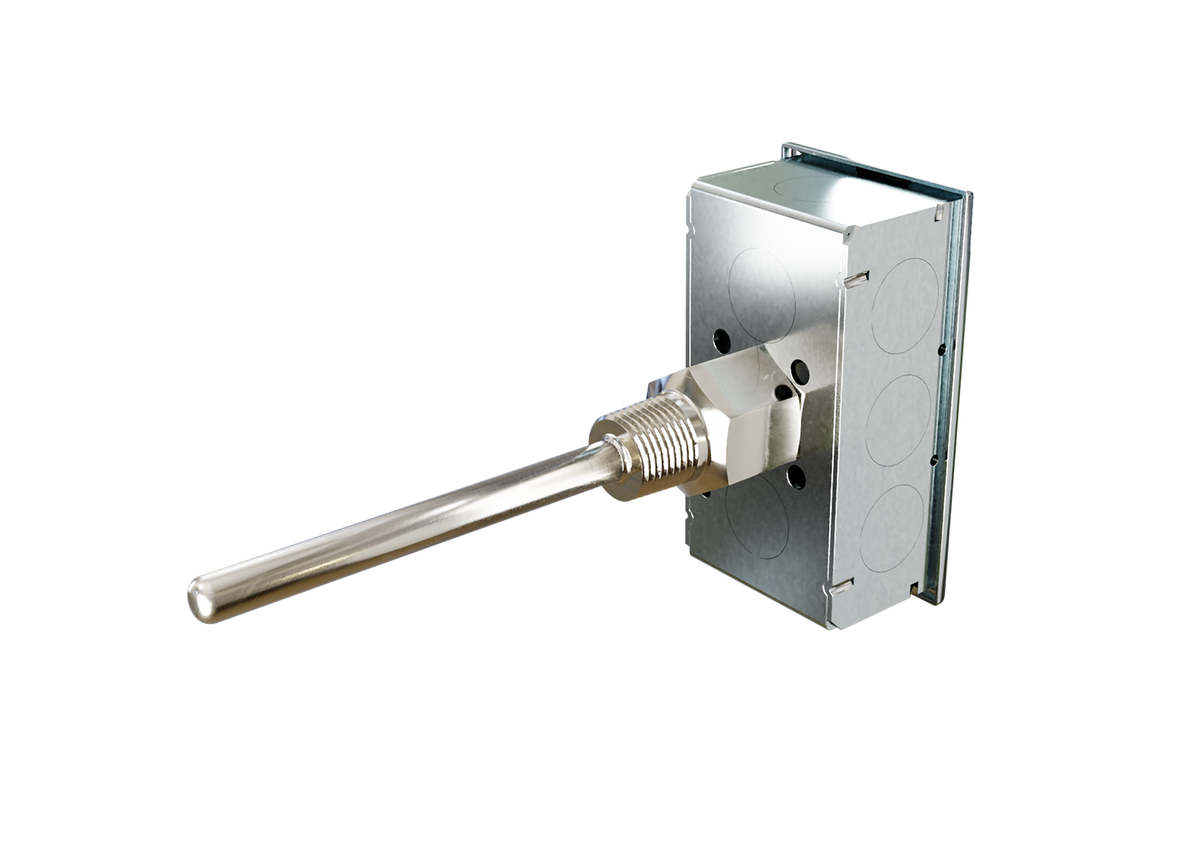

The galvanized metal box, with well configuration has male 1/2 inch NPT threads. The sensing element is double encapsulated to avoid sensor failures caused by moisture infiltration. ACI also standardizes with etched Teflon lead wires. ACI immersion temperature sensors are designed for HVAC, Building Automation Systems, and light industrial applications. Specific applications include: chillers, hot water systems, tanks, and boilers. NOTE: Welded thermowells are not intended for moving water or high pressure service. Fluid velocity and wake frequency are primary factors in well failure. Machined thermowells should be used in these types of applications.
- Negative temperature coefficient
- Double encapsulated sensor
- Foam pad
Specifications
| Item Number | A/100-3W-I-6"-GD |
| Brand | ACI |
| Element Type | 100 ohm (3 wire) |
| Sensing Element | RTD |
| Sensor Configuration | Immersion with Well |
| Sensor Housing | Galvanized |
| Sensor Length | 6 inch |
| Sensor | Temperature |
