A/100-3W-I-4"-BB | RTD 100 ohm (3 wire) | Stainless Steel Well Water Fluid Steam Temperature Sensor | Sensor Length: 4 inch | NEMA 3R (Bell Box) Housing Enclosure Box | ACI
100 Ohm (Three Wires) RTD, Immersion, Welded Well, 4", NEMA 3R Enclosure
Documents and manuals
ACI A/100-3W-I-4"-BB Documents
Overview
Details for A/100-3W-I-4"-BB
A/100-3W-I-4"-BB | RTD 100 ohm (3 wire) | Stainless Steel Well Water Fluid Steam Temperature Sensor | Sensor Length: 4 inch | NEMA 3R (Bell Box) Housing Enclosure Box

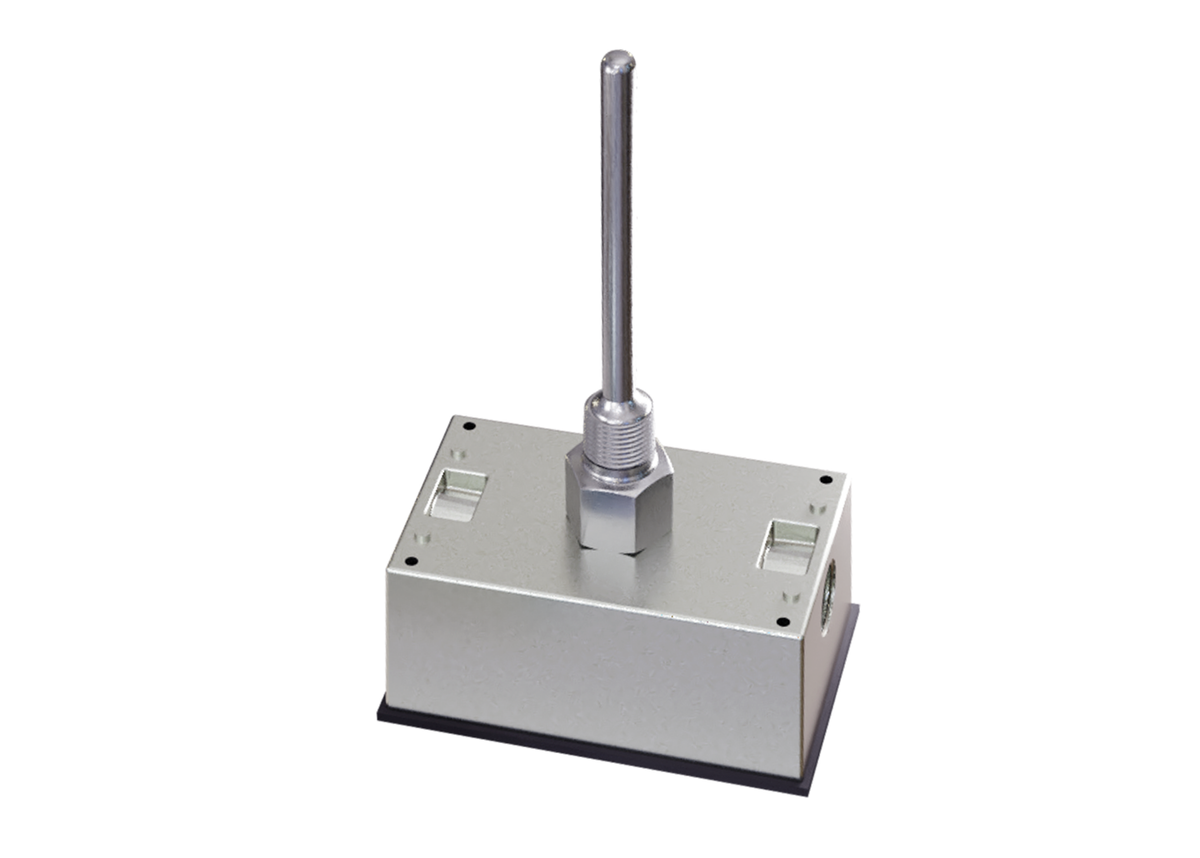

The metal bell box, with well configuration has a NEMA 3R rating and is designed for wet environments. It has male 1/2 inch NPT threads and the sensing element is double encapsulated to avoid sensor failures caused by moisture infiltration. ACI also standardizes with etched Teflon lead wires and 2 part wells. ACI immersion temperature sensors are designed for HVAC, Building Automation Systems, and light industrial applications. Specific applications include: chillers, hot water systems, tanks, and boilers. NOTE: Welded thermowells are not intended for moving water or high pressure service. Fluid velocity and wake frequency are primary factors in well failure. Machined thermowells should be used in these types of applications.
- Negative temperature coefficient
- Double encapsulated sensor
- NEMA 3R enclosure
Specifications
| Item Number | A/100-3W-I-4"-BB |
| Brand | ACI |
| Element Type | 100 ohm (3 wire) |
| Sensing Element | RTD |
| Sensor Configuration | Immersion with Well |
| Sensor Housing | NEMA 3R (Bell Box) |
| Sensor Length | 4 inch |
| Sensor | Temperature |
