Wet Differential Pressure, 0-30, 0-75, 0-150, 0-300 PSID (Default), 20' Metal Clad Cables, Outputs: 0-10 VDC (Default), 0-5 VDC, 4-20mA (Selectable)

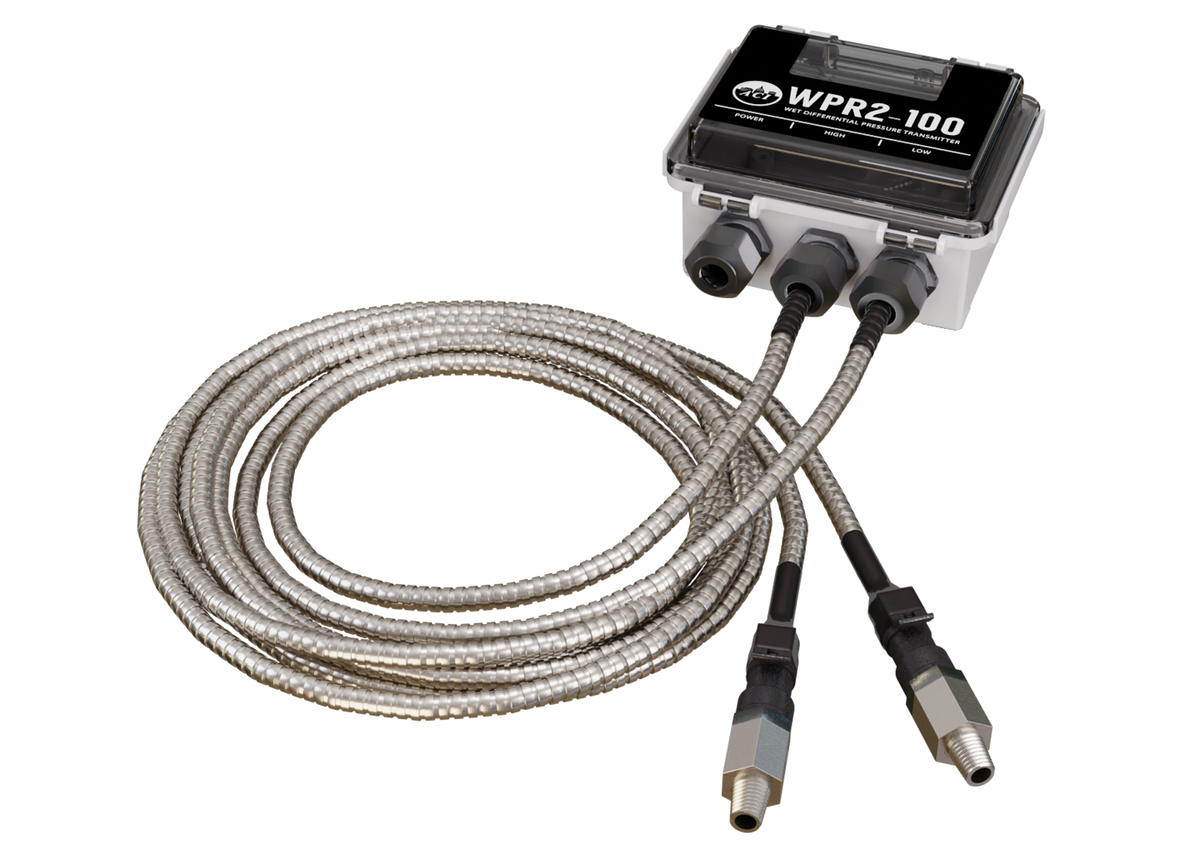

The ACI WPR2 Series Remote Wet to Wet Dierential Pressure Transmitter is designed to reduce installation time and provide mounting exibility, often eliminating the need for additional plumbing. They accurately measure wet media pressures in a variety of applications. Commonly used for monitoring pumps, these devices are also ideal for measuring pressure across lters, heat exchangers and compressors. The dual remote sensors are based on a ceramic capacitive sensing element with ¼-18 NPT male (304 stainless steel) ttings. The WPR2s enclosure opens conveniently to allow it to be recongured between three additional ranges (see order grid) and outputs of 4 to 20 mA, 0 to 5 VDC, or 0 to 10 VDC (default). The dierent congurations in this series can measure both uni or bi-directional pressure ranges as low as 3 psi and as high as 300 psi, depending on the unit. The WPR2 also features a push button auto zero function for remote calibration. The LCD option will display pressure values for both the High and Low side pressures, a dierential pressure value, OVR for values over the specied range, ERROR for dierential pressures out of range, and ZERO when the auto-zero is in process. Applications: Monitoring Pumps, Compressors, Filters, Heat Exchangers, Flow The WPR2 Series is covered by ACI's Five (5) Year Limited Warranty. The warranty can be found in the front of ACI's Sensors & Transmitters catalog, as well as on ACI's website, www.workaci.com.
