A/TTM1K-LTS-4-4X-10' | FREEZER PROBE 2", 4X, 10' | ACI
Transmitter w/ 1, 000 Ohm RTD (NIST CERT), 2" Freezer Probe 316 SS, NEMA 4X Enclosure, 10', 4-20mA Output
Documents and manuals
ACI A/TTM1K-LTS-4-4X-10' Documents
Overview
Details for A/TTM1K-LTS-4-4X-10'
FREEZER PROBE 2", 4X, 10'

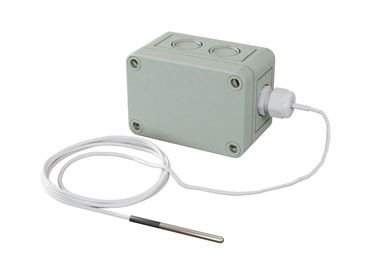

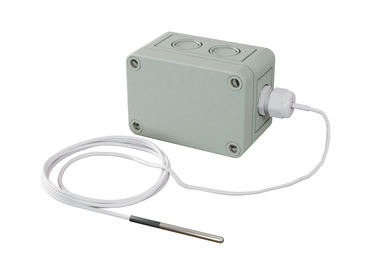

The ACI RTD Freezer Series features a 3/16 diameter stainless steel probe with a 10 Foot or 30 Foot, 3 Conductor, 24 AWG Plenum rated jacketed Teflon cable. The sensor is designed to be used in Pharmaceutical, Liquid Nitrogen, Freezers, Refrigerators and Hydronic applications where a remote sensor is required. Optional -GD galvanized, -BB Aluminum, or -4x NEMA 4X weather proof plastic enclosures are available as well as NIST Certificates as referenced on the back of the product data sheet. A/TT Series transmitter accuracies must be calculated using both the calibration accuracy of the transmitter and the sensor accuracy over your applications operating temperature range. For higher accuracies, the A/TTM Series includes a secondary calibration process designed to eliminate most of the sensor error from the overall system accuracy. Any Freezer Transmitter can be used with the Single or Triple Point Glycol Kits when a Thermal Buffer (slower) response time is desired.
Specifications
| Item Number | A/TTM1K-LTS-4-4X-10' |
| Brand | ACI |
