Documents: A/TTM1K-IM-6"-4-PB

A/TTM1K-IM-6"-4-PB | IMMER 6", PB, MACH WELL | ACI

Transmitter w/ 1, 000 Ohm RTD (NIST Cert), Immersion, Machined Well, 6", Plastic Enclosure, 4-20mA Output

Brand: ACISKU: A/TTM1K-IM-6"-4-PB
ACI | A/TTM1K-IM-6

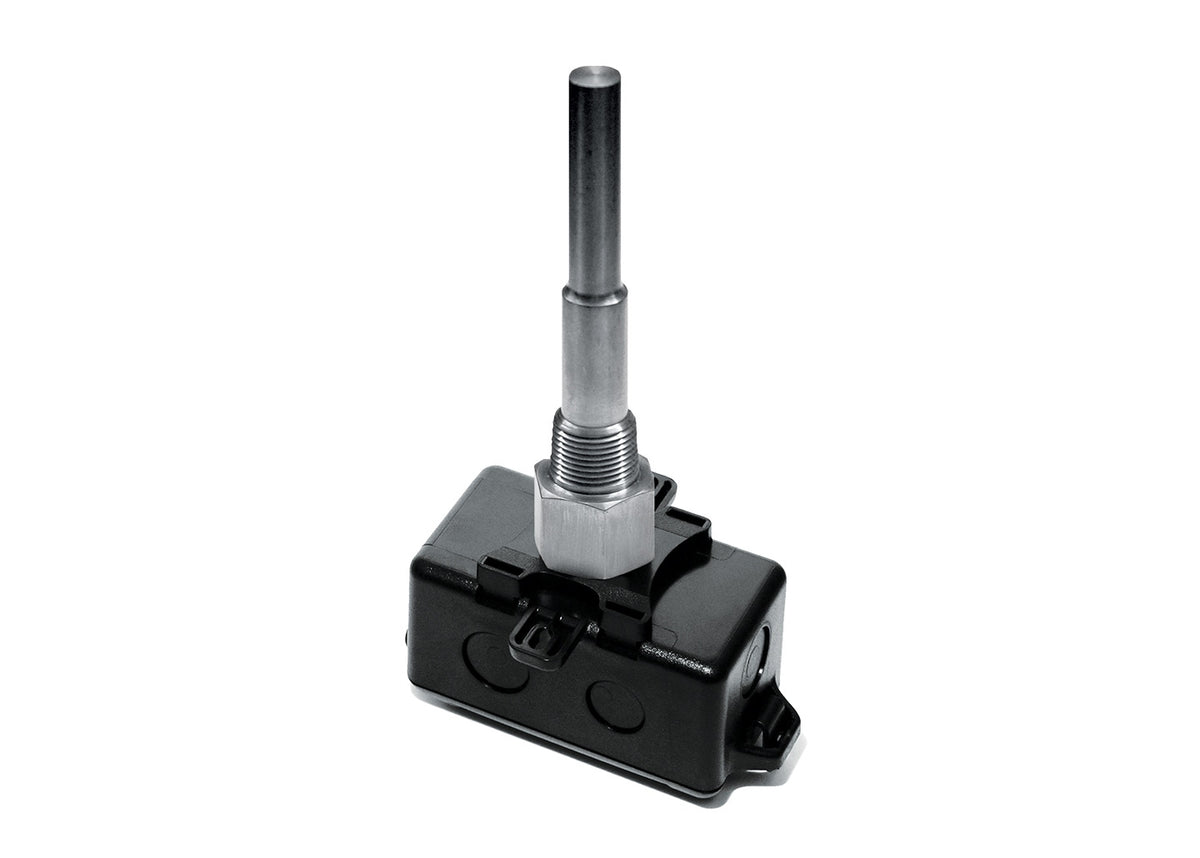

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to A/TTM1K-IM-6"-4-PB

Overview Details for A/TTM1K-IM-6"-4-PB

IMMER 6", PB, MACH WELL

The ACI Transmitter Immersion Series features a two-wire, 4 to 20 mA loop powered output signal with optional three-wire voltage output signal available. All transmitters include Zero and Span adjustments for field calibration and are calibrated using NIST Certfied Calibration equipment. We recommend the use of an 18 to 22 AWG shielded cable for all temperature transmitter installations to keep noise from being introduced onto the signal lines. The sensor assemblies are manufactured using Etched Teflon colored lead wires and ACIs proven double encapsulation process to eliminate the effects of moisture on the sensors as well as increased response times from our high quality, thermally conductive epoxy. The immersion sensors -I- include a welded thermowell but can be ordered without the thermowell -INW version. The -INW includes a standard ½ NPS process thread to be used with a machined thermowell or existing thermowell application. Optional NEMA/IP rated weather proof enclosures and NIST Calibration
Certificates are available when ordering the A/TTM Series transmitters as referenced in the ordering grid on the back of the product data sheet. For best accuracy, ACI recommends the use of the A/TTM Series Matched transmitters which includes a 3 or 5 Point NIST Calibration Certficate, since they include a second calibration step in which the RTD and transmitter are calibrated together as a system.

Applications: Chilled Water Systems, Hot Water Systems, Boilers, Pumps, Compressors, Chillers, Cooling Towers, Process Control

The ACI Transmitter Immersion Series is covered by ACI's Five (5) Year Limited Warranty. The warranty can be found in the front of ACI's Sensors & Transmitters catalog, as well as on ACI's website, www.workaci.com.

Specifications

Item Number A/TTM1K-IM-6"-4-PB
Brand ACI
