A/TTM1K-A-80'-4-4X | Transmitter w/ 1,000 Ohm RTD (NIST Cert), Copper Averaging, 80', NEMA 4X Enclosure, 4-20mA Output | ACI

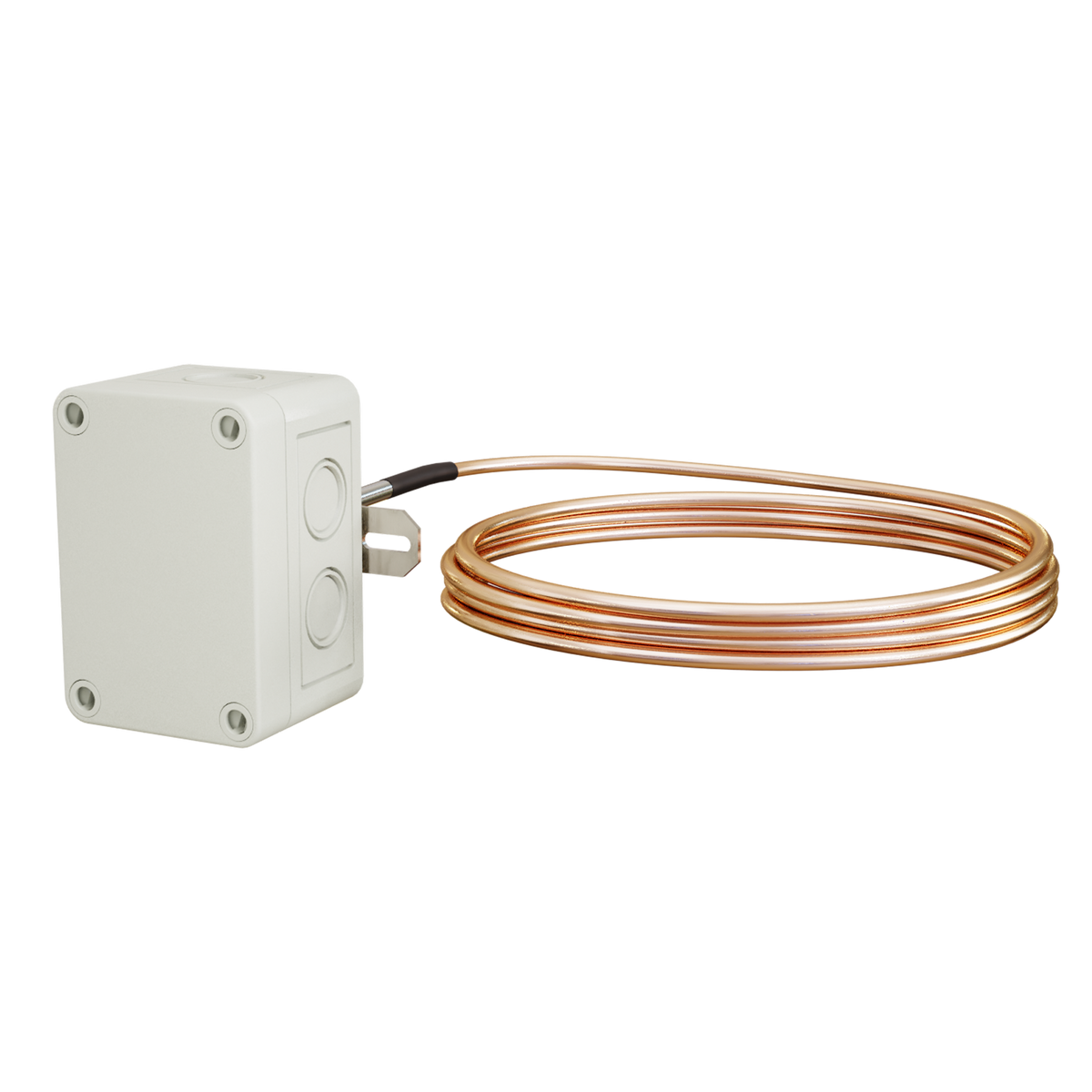

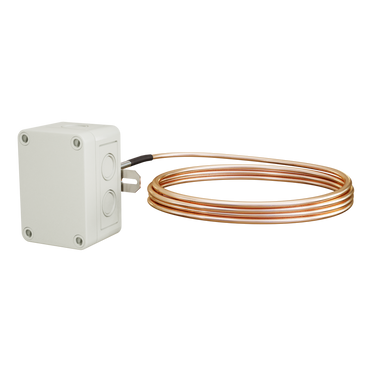

Transmitter w/ 1,000 Ohm RTD (NIST Cert), Copper Averaging, 80', NEMA 4X Enclosure, 4-20mA Output

The ACI Transmitter Copper Averaging Series features a two-wire, 4 to 20 mA loop powered output signal with an optional 3-Wire voltage output signal available. The Copper Averaging sensors are designed to be installed in medium to large ducts or air handling units where moisture, UV Light Air Treatment equipment, critical temperature control, higher corrosion resistance and faster response times when compared to similar Aluminum sensing elements. Copper has also been proven to provide an anti-bacterial eect on molds, fungus and other bacteria typically found in ducts. All transmitters include Zero and Span adjustments for eld calibration and are calibrated using NIST Certied Calibration equipment. ACI recommends the use of an 18 to 22 AWG shielded cable for all temperature transmitter installations to reduce the possibility of noise being introduced onto the signal lines. The 1K Ohm Rigid Averaging sensor assemblies include a continuous sensing element the covers the entire length of the 8 to 100 foot sensing elements and are manufactured using Etched Teon lead wires to dierentiate between the dierent sensor types. All units are hermetically sealed using our epoxy material to eliminate the eects of moisture on the sensors. All Copper Averaging transmitters include a foam pad to properly seal the duct and limit vibration once installed. Optional NEMA/IP rated weather proof enclosures are available as specied on the back of the product data sheet. For best accuracy, ACI recommends the use of the A/TTM Series Matched transmitters with a 3 or 5 Point NIST Calibration Certicate, since they include a second calibration process in which the RTD and transmitter are calibrated together as a system.
