A/TTM1K-A-50'-4-PB | Transmitter w/ 1,000 Ohm RTD (NIST Cert), Copper Averaging, 50', Plastic Enclosure, 4-20mA Output | ACI

Transmitter w/ 1, 000 Ohm RTD (NIST Cert), Copper Averaging, 50', Plastic Enclosure, 4-20mA Output

Brand: ACISKU: A/TTM1K-A-50'-4-PB

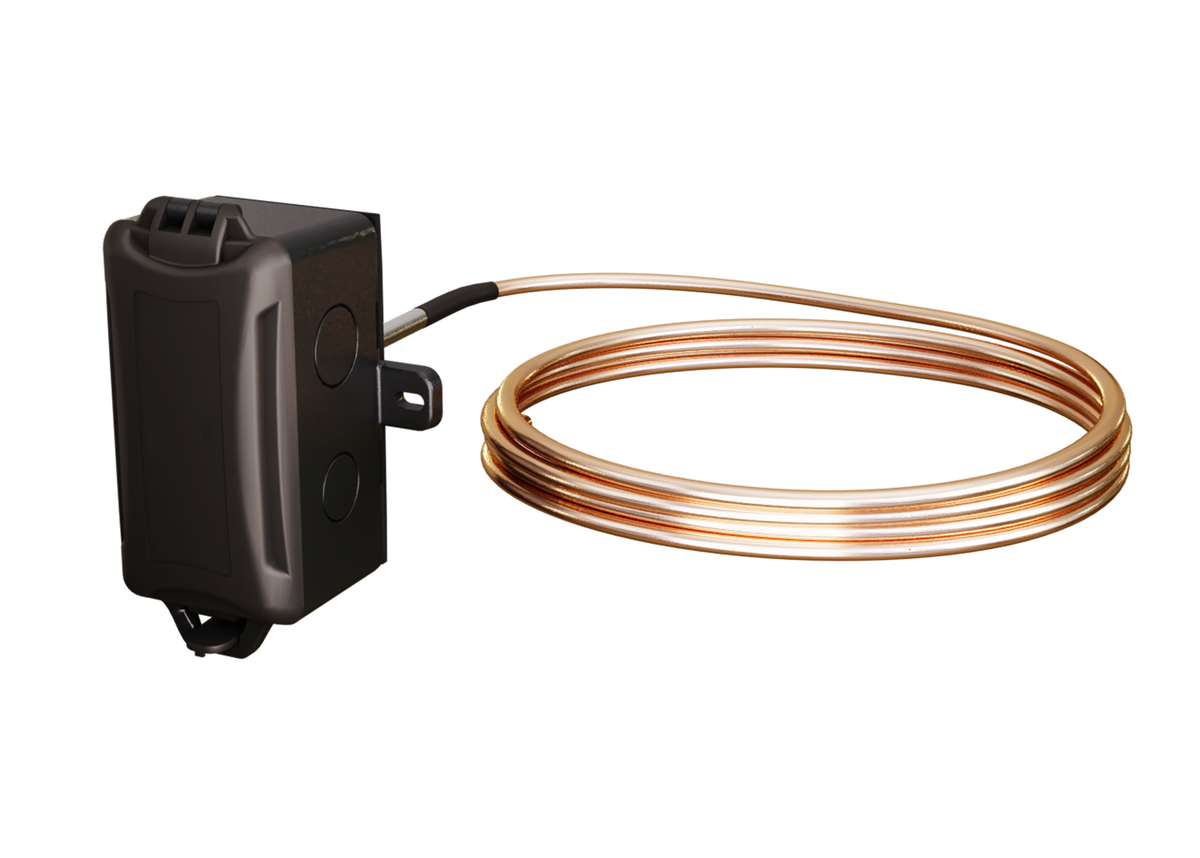

ACI | A/TTM1K-A-50'-4-PB
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to A/TTM1K-A-50'-4-PB

Overview Details for A/TTM1K-A-50'-4-PB

Transmitter w/ 1,000 Ohm RTD (NIST Cert), Copper Averaging, 50', Plastic Enclosure, 4-20mA Output

The ACI Transmitter Copper Averaging Series features a two-wire, 4 to 20 mA loop powered output signal with an optional 3-Wire voltage output signal available. The Copper Averaging sensors are designed to be installed in medium to large ducts or air handling units where moisture, UV Light Air Treatment equipment, critical temperature control, higher corrosion resistance and faster response times when compared to similar Aluminum sensing elements. Copper has also been proven to provide an anti-bacterial eect on molds, fungus and other bacteria typically found in ducts. All transmitters include Zero and Span adjustments for field calibration and are calibrated using NIST Certified Calibration equipment. ACI recommends the use of an 18 to 22 AWG shielded cable for all temperature transmitter installations to reduce the possibility of noise being introduced onto the signal lines. The 1K Ohm Rigid Averaging sensor assemblies include a continuous sensing element the covers the entire length of the 8 to 100 foot sensing elements and are manufactured using Etched Teflon lead wires to differentiate between the different sensor types. All units are hermetically sealed using our epoxy material to eliminate the effects of moisture on the sensors. All Copper Averaging transmitters include a foam pad to properly seal the duct and limit vibration once installed. Optional NEMA/IP rated weather proof enclosures are available as specified on the back of the product data sheet. For best accuracy, ACI recommends the use of the A/TTM Series Matched transmitters with a 3 or 5 Point NIST Calibration Certificate, since they include a second calibration process in which the RTD and transmitter are calibrated together as a system.

Applications: Roof Top Units, Air Handlers, Monitoring Supply/Discharge/Return/Mixed Air Temperatures, Data Centers, Hospitals, Laboratories

The ACI Copper Averaging Transmitter Series is covered by ACI's Five (5) Year Limited Warranty. The warranty can be found in the front of ACI's Sensors & Transmitters catalog, as well as on ACI's website, Www.Workaci.Com.

Specifications

Item Number A/TTM1K-A-50'-4-PB
Brand ACI
