Documents: A/TTM100-I-4"-4-GD

Datasheet Installation Instructions More Info

A/TTM100-I-4"-4-GD | IMMER 4", GD | ACI

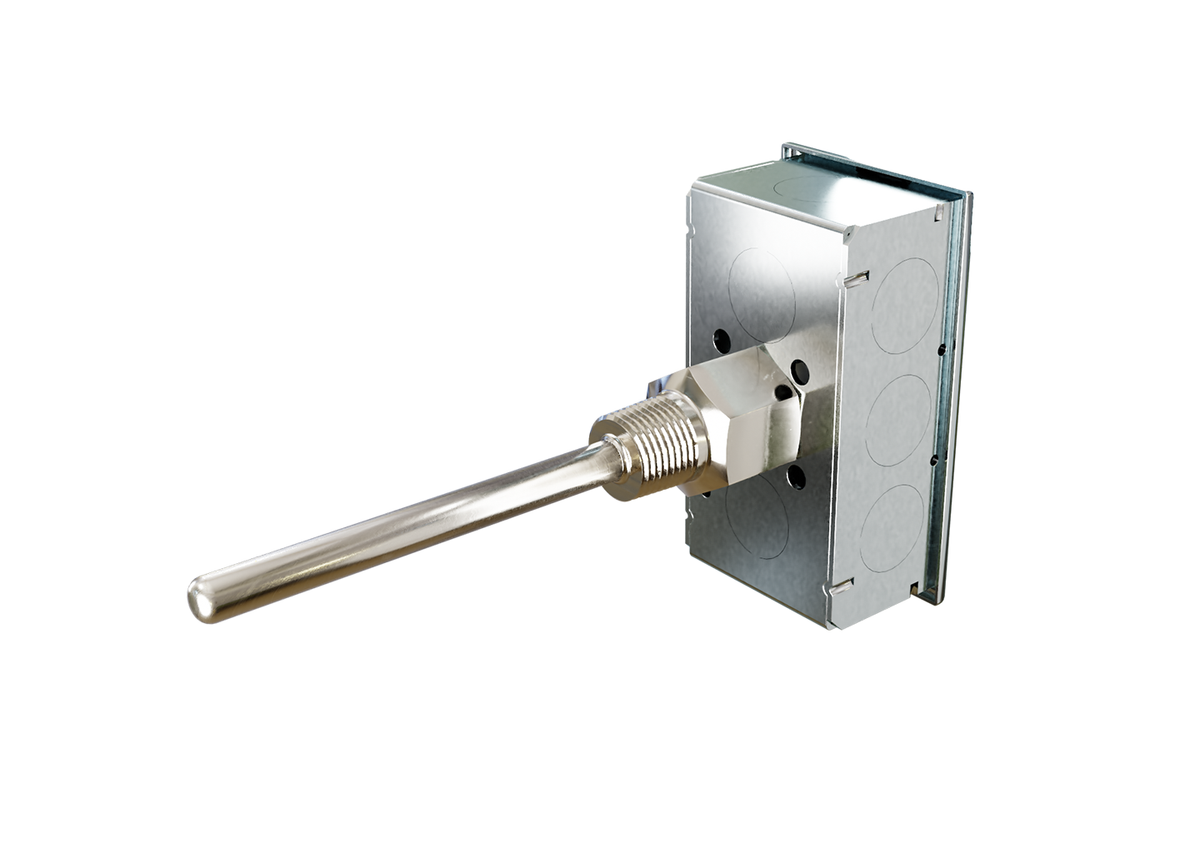

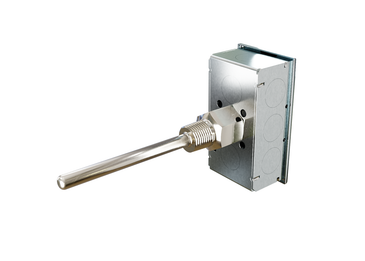

Transmitter w/ 100 Ohm RTD (NIST Cert), Immersion, Welded Well, 4", Galvanized Enclosure, 4-20mA Output

Brand: ACISKU: A/TTM100-I-4"-4-GD

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to A/TTM100-I-4"-4-GD

Jump to: Overview & Specifications Reviews

Overview Details for A/TTM100-I-4"-4-GD

IMMER 4", GD

The galvanized metal box, with well configuration has male 1/2 inch NPT threads. The sensing element is double encapsulated to avoid sensor failures caused by moisture infiltration. ACI also standardizes with etched Teflon lead wires. ACI immersion temperature sensors are designed for HVAC, Building Automation Systems, and light industrial applications. Specific applications include: chillers, hot water systems, tanks, and boilers. NOTE: Welded thermowells are not intended for moving water or high pressure service. Fluid velocity and wake frequency are primary factors in well failure. Machined thermowells should be used in these types of applications.

Negative temperature coefficient
Double encapsulated sensor
Foam pad
