A/TT1K-BP-4-PB-6'P | BULLET 1", PB, 6'CL2P | ACI

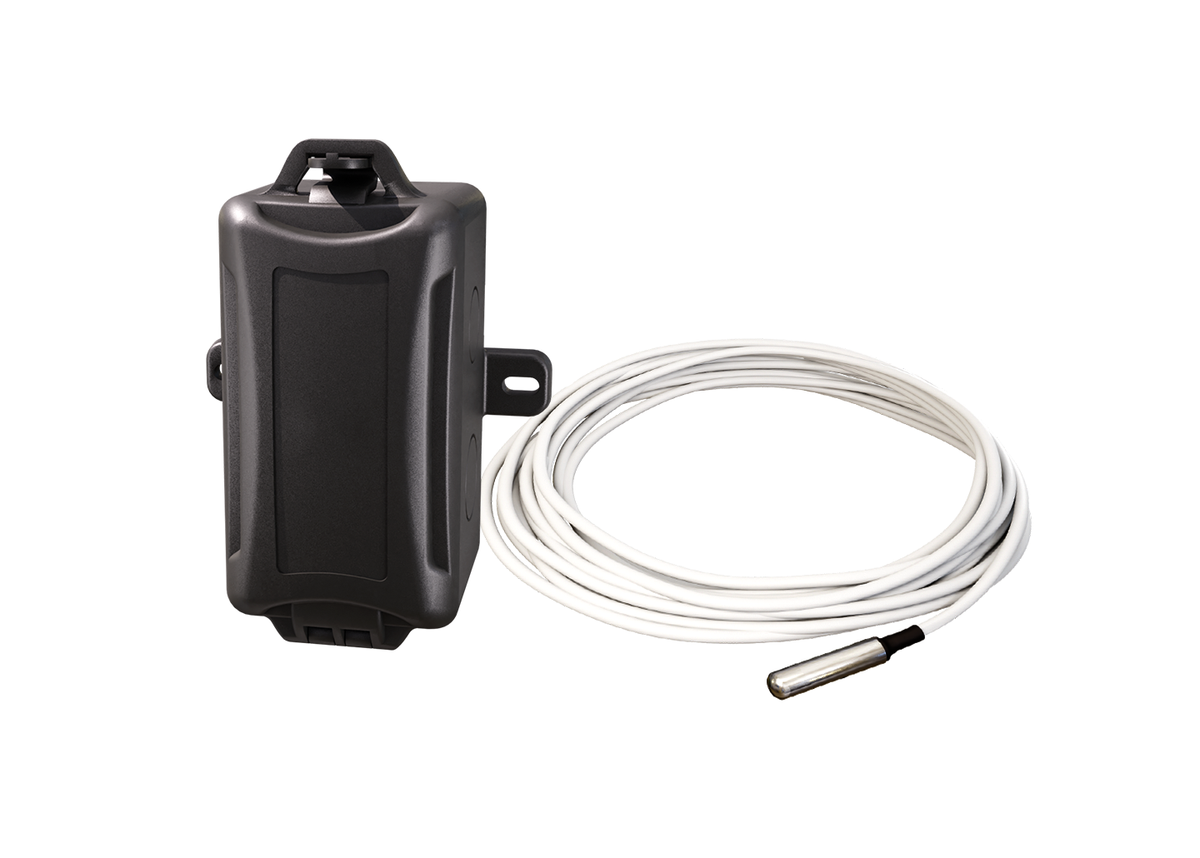

Transmitter w/ 1, 000 Ohm RTD, Bullet Probe, 1", 6' Plenum Cable, Plastic Enclosure, 4-20mA Output

ACI | A/TT1K-BP-4-PB-6'P
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to A/TT1K-BP-4-PB-6'P

Documents and manuals

ACI A/TT1K-BP-4-PB-6'P Documents

Overview

Details for A/TT1K-BP-4-PB-6'P

BULLET 1", PB, 6'CL2P

The ACI Transmitter Bullet Probe Series features a two-wire, 4 to 20 mA loop powered output signal with an optional 3-Wire voltage output signal available. All transmitters include Zero and Span adjustments for field calibration and are calibrated using NIST Certified Calibration equipment. We recommend the use of an 18 to 22 AWG shielded cable for all temperature transmitter installations to help eliminate the possibility of noise being introduced onto the signal lines. The sensor assemblies are manufactured using a 2-conductor unshielded FEP/FEP Plenum rated, unshielded cable and ACIs proven double encapsulation process to eliminate the effects of moisture on the sensors as well as increased response times using our high quality, thermally conductive epoxy. The Bullet Probe remote sensors include an optional 10 or 20 Foot Plenum rated cable for use in remote sensor applications. All TT100 and TT1K Series Bullet Probe transmitters sensor leads may be shortened in the field as needed but all Matched TTM100 and TTM1K Series transmitters sensor leads should not be shortened due to the impact that it would have on the calibration accuracy of the sensor and transmitter. Optional NEMA/IP rated weather proof enclosures are available as specified on the back of the product data sheet. For best accuracy, ACI recommends the use of the A/TTM Series Matched transmitters with 3 or 5 Point NIST Calibration Certificate, since they include a second calibration step in which the RTD and transmitter are calibrated together as a system.

Applications: Chilled Water Systems, Hot Water Systems, Boilers, Pumps, Compressors, Chillers, Remote Sensing, Process Control

Specifications

Item Number A/TT1K-BP-4-PB-6'P
Brand ACI
