A/TT100-RS-4-LCD-B4 | Transmitter w/ 100 Ohm RTD, Room (R) with Setpoint, 4-20mA Output, LCD, 55-85 | ACI

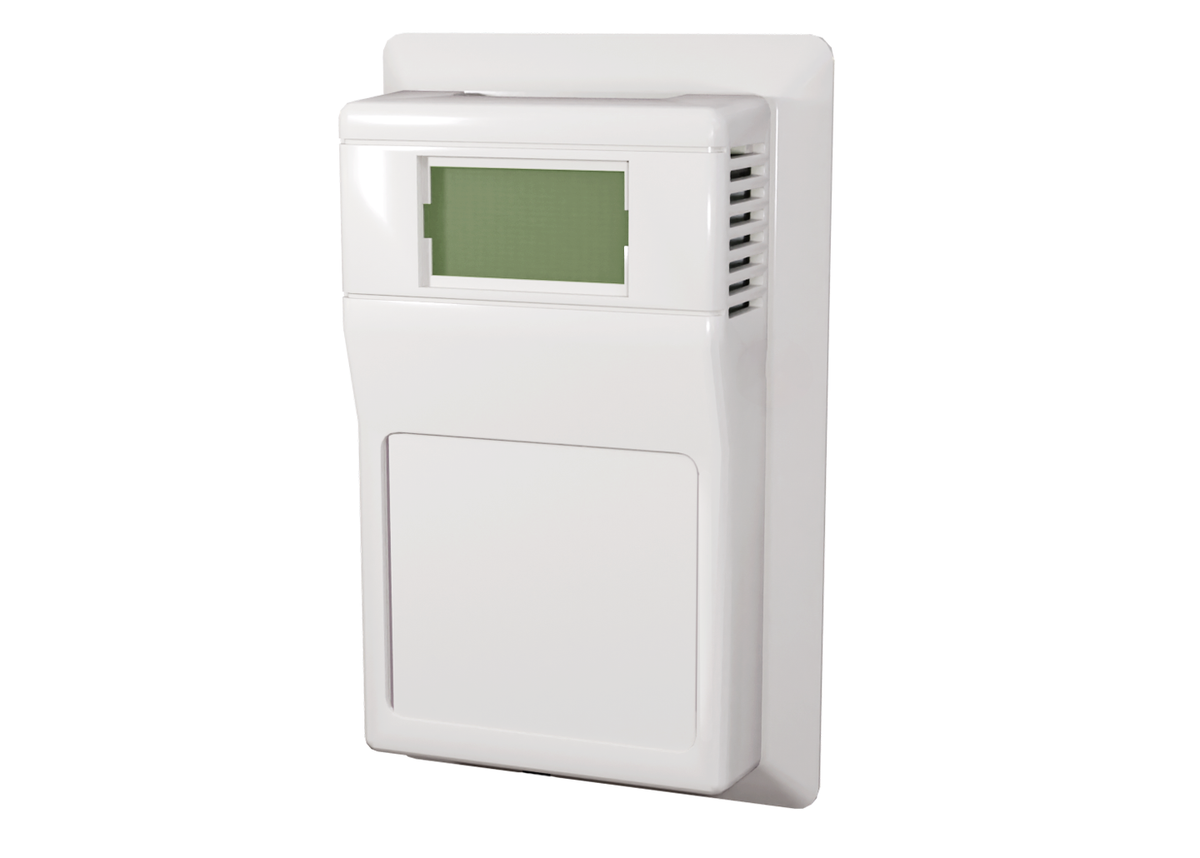

Transmitter w/ 100 Ohm RTD, Room (R) with Setpoint, 4-20mA Output, LCD, 55-85
Documents and manuals
ACI A/TT100-RS-4-LCD-B4 Documents
Overview
Details for A/TT100-RS-4-LCD-B4
Transmitter w/ 100 Ohm RTD, Room (R) with Setpoint, 4-20mA Output, LCD, 55-85
The ACI Transmitter Room Series features a two-wire, 4 to 20 mA loop powered output with optional 3-Wire voltage output signals available. All transmitters include Zero and Span adjustments for eld calibration and are calibrated using NIST Certied Calibration equipment. ACI recommends the use of an 18 to 22 AWG shielded cable for all temperature transmitter installations to reduce the chances of noise being introduced onto the signal lines. The room transmitters are designed to be mounted over a standard single gang junction box or hole in the wall and includes a foam pad to reduce the eects of self-heating from the transmitter and thermal drafts from within the wall. For best accuracy, ACI recommends the use of the A/TTM Series Matched transmitters with 3 or 5 Point NIST Calibration Certicate, since they include a second calibration step in which the RTD and transmitter are calibrated together as a system. Optional Set Point, Override and Loop Powered LCD Display. Applications: Space Temperature Sensing, Oce Buildings, Schools, Gyms, Manufacturing Plants, Pharmaceutical, Hospitals, Data Centers
Specifications
Item Number | A/TT100-RS-4-LCD-B4 |
Brand | ACI |
