Documents: A/SYPHON-90-H

Datasheet More Info

A/SYPHON-90-H | 1/4" SYPHON, 90 DEG SCH 80 316 | ACI

Syphon, ¼” MNPT, 90°, Schedule 80, 316 SS

Brand: ACISKU: A/SYPHON-90-H

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to A/SYPHON-90-H

Jump to: Overview & Specifications Reviews

Overview Details for A/SYPHON-90-H

1/4" SYPHON, 90 DEG SCH 80 316

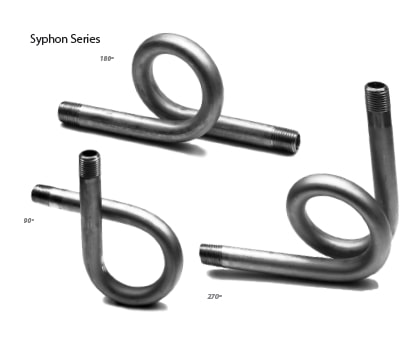

The A/SYPHON Series has been designed to provide protection for the ACI Gage and Wet to Wet Differential Pressure transmitters from damage in boiler applications where the operating temperature of the steam being monitored is higher than the maximum operating temperature of the pressure transducer. Three different bend configurations of 90º, 180º, and 270º are available in order to allow the mounting of the pressure transducer vertically away from the main pipe. When mounting the Pigtail Syphons, make sure that the syphon is fully exposed to the ambient air and not covered by any pipe insulation. The Pigtail Syphons feature a stainless steel construction with ¼ Male NPT pipe threads and are compatible with a wide range of gases and liquids.

The A/SYPHON Series is covered by ACI's Two (2) Year Limited Warranty. The warranty can be found in the front of ACI's Sensors & Transmitters catalog, as well as on ACI's web site, www.workaci.com.
