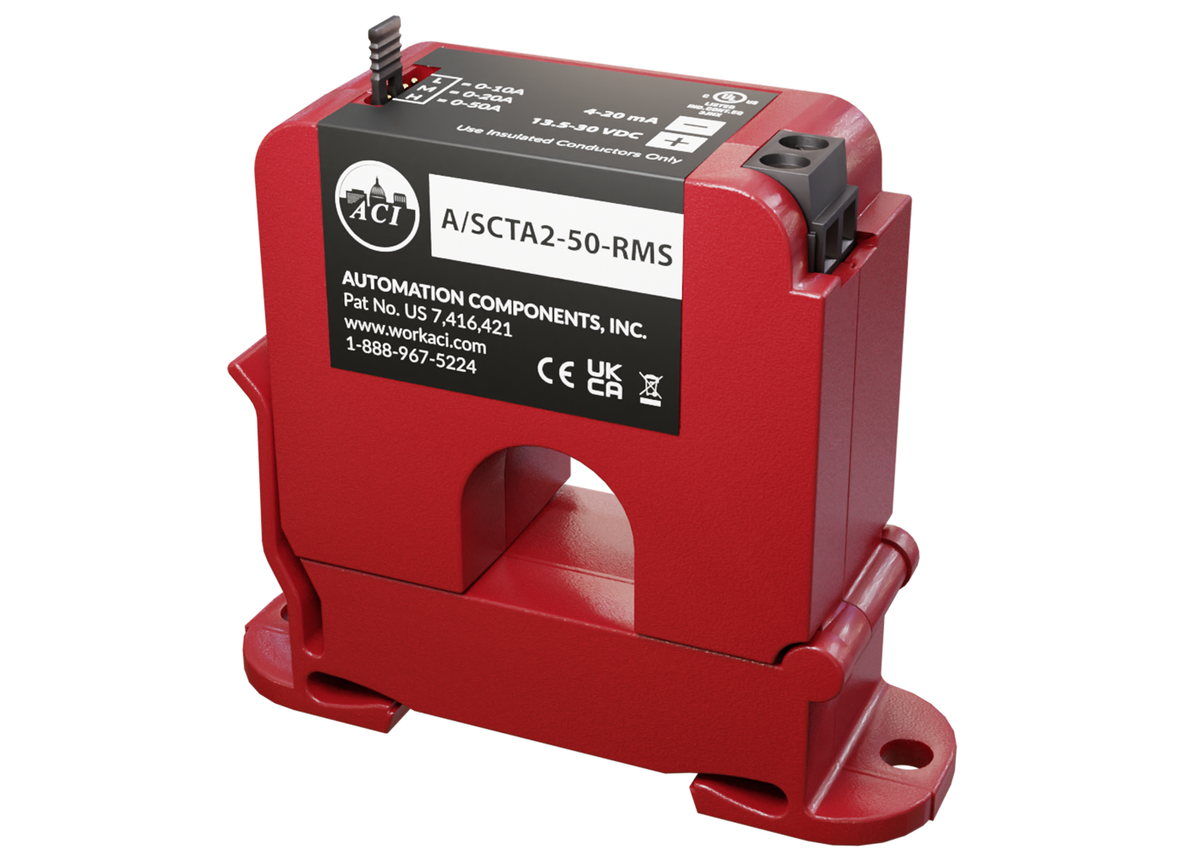

A/SCTA2-50-RMS | Current Sensor (Split Core) | Loop Powered | True RMS | 4-20 mA Output | Jumper Selectable Range: 0-10 | 0-20 | 0-50A | ACI
Analog Current Sensor, 4-20mA, DIN Rail, Split Core, RMS, 0-10, 0-20, 0-50 Amp (Default)
Documents and manuals
ACI A/SCTA2-50-RMS Documents
Overview
Details for A/SCTA2-50-RMS
A/SCTA2-50-RMS | Current Sensor (Split Core) | Loop Powered | True RMS | 4-20 mA Output | Jumper Selectable Range: 0-10 | 0-20 | 0-50A
Description
The A/CTA and A/SCTA Series current sensors monitor the current flowing to electrical equipment or buildings. The magnitude of this current is then converted into a linear and proportional 4 to 20 mA output signal. The A/CTA Series current sensors are available in either an Average or True RMS output version. Nearly all of these sensors have jumper selectable input ranges, with the exception of the 0 to 5 Amp input range on the A/CTA-5 and A/SCTA-5 Series sensors. This series is fast-acting and extremely accurate from 1 to 100% of the full scale output. The sensors are factory calibrated using an NIST traceable standard. Every device on this cutsheet features a patented Din-Rail mounting system (Pat. no. US 7,416,421) for ease of installation.
Specifications
Item Number | A/SCTA2-50-RMS |
Brand | ACI |
Current Core | Split Core |
Sensor | Current Sensor |
