A/RH3-TTM1K-RP2-3'-4X-4 | Relative Humidity, RH Outputs: 0-5, 0-10 VDC & 4-20mA (Default), Remote Probe, +/- 3% Accuracy, Transmitter w/ 1,000 Ohm RTD (NIST CERT), 3' Plenum, 4-20mA (Temp) | ACI

Relative Humidity, RH Outputs: 0-5, 0-10 VDC & 4-20mA (Default), Remote Probe, +/- 3% Accuracy, Transmitter w/ 1,000 Ohm RTD (NIST CERT), 3' Plenum, 4-20mA (Temp)

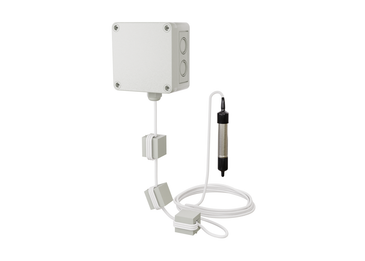

The ACI Relative Humidity with Temperature Transmitter Series Remote Probe utilizes a thermoset polymer capacitive sensing element with a hydrophobic filter to deliver a proportional relative humidity analog output and can also be configured with any resistive temperature sensor such as a thermistor or RTD. The remote probe wiring harness comes in lengths of 3, 6, 10, or 20 feet to provide mounting flexibility for your remote sensing applications. Single point field calibration can be done on the humidity transmitter, by using the increment and decrement dip switches. Each toggle of the increment and decrement switches will allow for a ±0.5% RH increase or decrease. Calibration of the RH transmitters electronics can also be done using both the Zero and Span potentiometers depending on whether it is a current or voltage output device. All models feature conformally coated circuit boards to improve the reliability of the product in both high moisture and mildly corrosive atmospheres. The standard enclosure is an IP66/NEMA 4X rated moisture and corrosion resistant enclosure. A vinyl cap is provided to place over the sintered filter in applications in wash down applications to protect the sensing element from
getting moisture sprayed directly on the sensor. NIST Calibration Certificates are available for all RH TTM part series.

Applications: Clean Rooms, Process Control, Environmental Chambers, Stability Chambers, Pharmaceutical Labs, Remote Sensing Applications

ACIs RH TT Remote Probes are covered by ACI's Five (5) Year Limited Warranty. The warranty can be found in the front of ACI's Sensors & Transmitters catalog, as well as on ACI's website, www.workaci.com.
