A/RH3-RP2-6'-EH | Relative Humidity, RH Outputs: 0-5, 0-10 VDC & 4-20mA (Default), Remote Probe, ± 3% Accuracy, 6' Plenum | ACI

Relative Humidity, RH Outputs: 0-5, 0-10 VDC & 4-20mA (Default), Remote Probe, ± 3% Accuracy, 6' Plenum

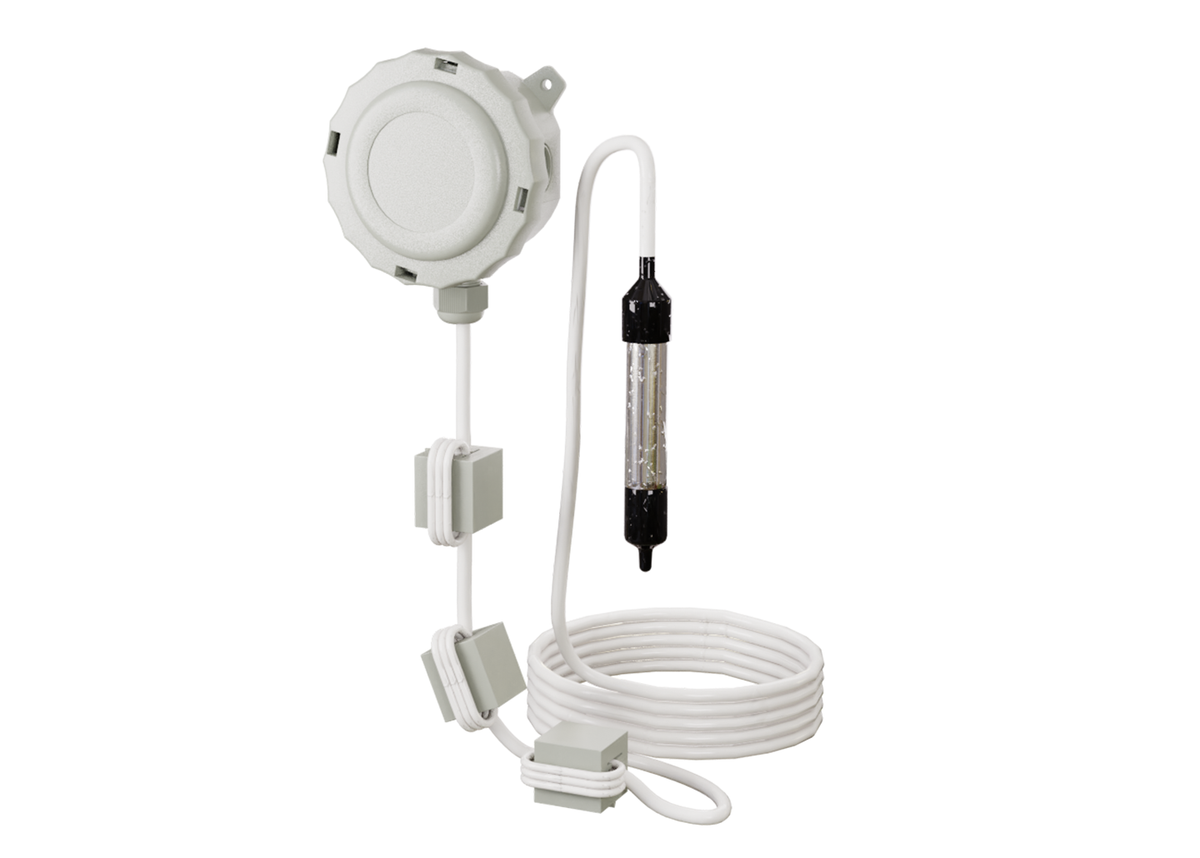

The ACI Relative Humidity Remote Probe utilizes a thermoset polymer capacitive sensing element with a hydrophobic filter to deliver a proportional relative humidity analog output The remote probe wiring harness comes in lengths of 3, 6, 10, or 20 feet to provide mounting flexibility for your remote sensing applications. Single point field calibration can be done on the humidity transmitter, by using the increment and decrement dip switches. Each toggle of the increment and decrement switches will allow for a ±0.5% RH increase or decrease. Calibration of the RH transmitters electronics can also be done using both the Zero and Span potentiometers depending on whether it is a current or voltage output device. All models feature conformally coated circuit boards to improve the reliability of the product in both high moisture and mildly corrosive atmospheres. A vinyl cap is provided to place over the sintered filter in wash down applications to protect the sensing element from getting moisture sprayed directly on the sensor. Three and Five-point NIST Calibration Certificates must be specified separately when placing your order.

Applications: Clean Rooms, Process Control, Environmental Chambers, Stability Chambers, Pharmaceutical Labs, Remote Sensing Applications

ACIs RH Remote Probes are covered by ACI's Five (5) Year Limited Warranty. The warranty can be found in the front of ACI's Sensors & Transmitters catalog, as well as on ACI's website, Www.Workaci.Com.
